Garage Paint Booth Auto Painting Equipment Painting Spray Booth with Conveyor
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：Non-standard
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas Heating
- Paint Mist Treatment：Dry-type
- Condition：New
- Rear Wall：50mm Rock Wool Panels
- Plenum：600mm(H)
- Extraction：800mm
- Grids Carrying Capacity：700kg,Wheel
- Filter Areas：32m2
- Ceiling Lighting：8 Sets, Each 4 X 18W, 576W Total
- Brightness：> 700lux
- Air Volume：28,000m3,H, 650PA
- Overhead Infrared Lamps：Yes.
- Special Item：Rated Power: 10kw
- Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
- Specification：6900 X 4900 X 2800mm (L W H)
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Sets,Year
Description
Spray BoothSpray booth 1,Size:internal 6900x4000x2650mm(L×W×H)
2,Wall panel:60mm rock wool
3,Front diir:green folor bending door,2+2,with frame,safety glass window.
4,Intake/exhaust:7.5KW turbo fan,air capacity 28000m³/h
5,Heating system:90KW electricity heating
6,Filtter system:G3 plate pre filter-F5 ceiling filter-paper filter
7,Lighting:8sets 6X24W,total 1152W,LED,illumination>1000Lux,anti-explosion
8,Control system:with inverter, spraying, baking, emergency stop etc 4 Set Roller shutter door 20mm thickness, alunimum 1 Set Moveable trolley Steel bending, punching. 4 Set Rail For different car 24 m
Details:
3.DETAILS
AIRFLOW & BOOTH STRUCTURE
DOORS & WALLS
AIR INTAKE AND EXHAUST UNIT
CONTROL
UPGRADE
OVERHEAD STEEL PLATFORM (optional)
Application: for placing machinery at the top of spray booth, save workspace.
CONTROL BOX AND TOOL BOX (PREP STATION)
Arrangement: on the rear wall
OPTION
ELECTRIC SOFT CURTAIN DOOR & MANUAL SOFT CURTAINS (FOR PREP STATION)
FAQQ: I do not need to put the machinery at the top.A: That's okay. We can cater to your requirements. Please send your inquiry, and we will work out the ideal solution for you.
Q: Is the observation glass on the side walls heat insulation?A: Yes. It consists of two layers of tempered glass, and the middle is filled with gas. It can help preserve heat of the booth.
Q: Is paint mixing room available?A: Yes. Additionally, we can follow your supplied dimensions and layout for the paint mixing room.
Q: Do you also supply paint booth for industrial application?A: Certainly. Infitech provides coating solution for the automotive, and industrial manufacturing industry, including furniture, heavy machinery etc. And we have abundant experience in offering and delivering customized solutions.
Q: What about the warranty service?A: Infitech offers 2 year warranty for paint booths.
Q: How can I pay you?A: Please make the payment by T/T, 50% payment upon order confirmation, and balance before shipment.
Specially, we can also accept payment method of L/C, West Union etc.
2,Wall panel:60mm rock wool
3,Front diir:green folor bending door,2+2,with frame,safety glass window.
4,Intake/exhaust:7.5KW turbo fan,air capacity 28000m³/h
5,Heating system:90KW electricity heating
6,Filtter system:G3 plate pre filter-F5 ceiling filter-paper filter
7,Lighting:8sets 6X24W,total 1152W,LED,illumination>1000Lux,anti-explosion
8,Control system:with inverter, spraying, baking, emergency stop etc
Details:
3.DETAILS

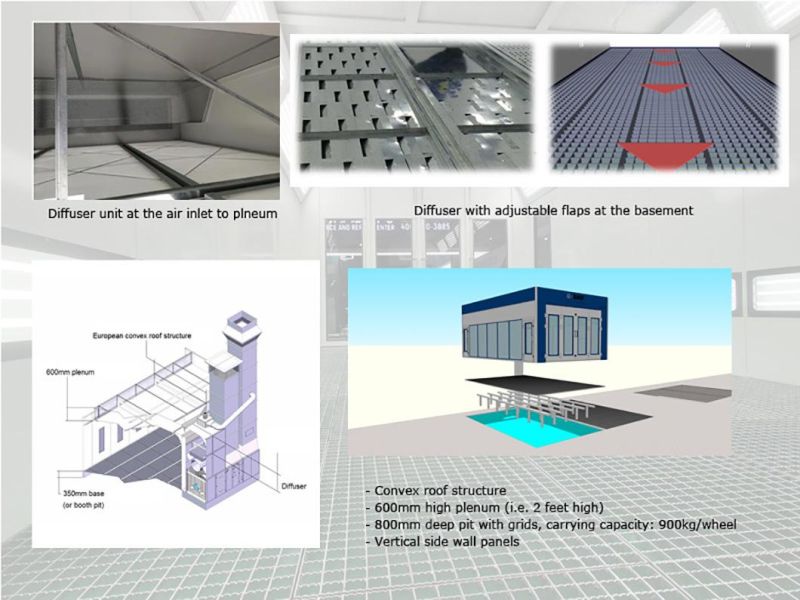

AIRFLOW & BOOTH STRUCTURE
- Downdraft airflow
- 600mm plenum
- Vertical walls.
- 800mm pit for extraction

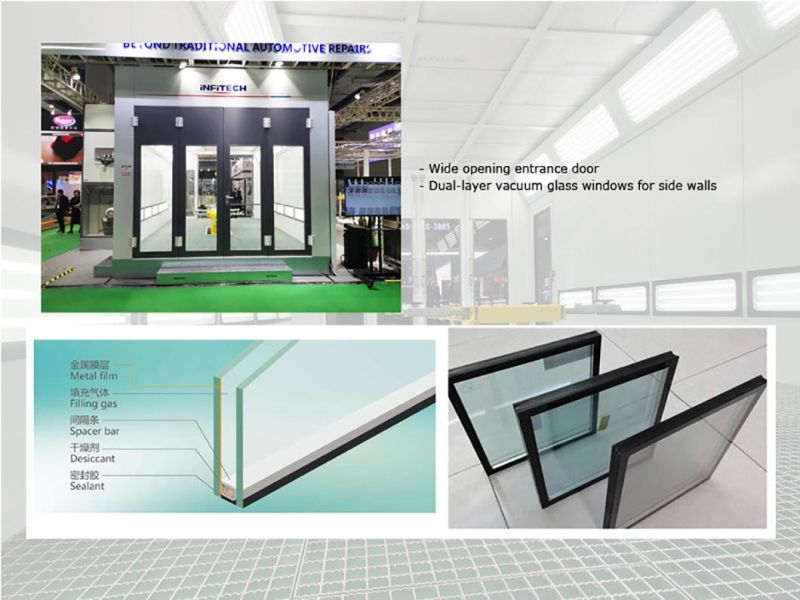

DOORS & WALLS
- 2+2 structure entry door: 3900x2600mm

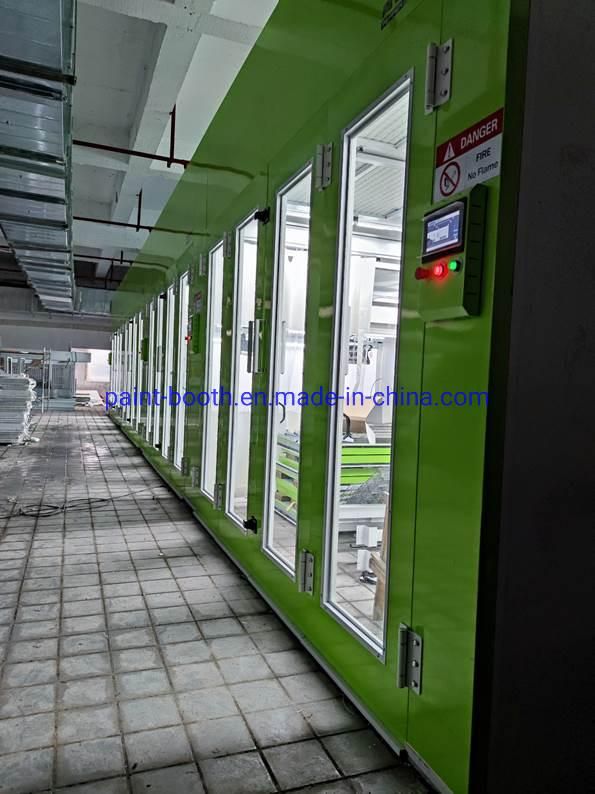

- Side walls: dual-layer vacuum glass windows for side walls, convenient for observation during the training process

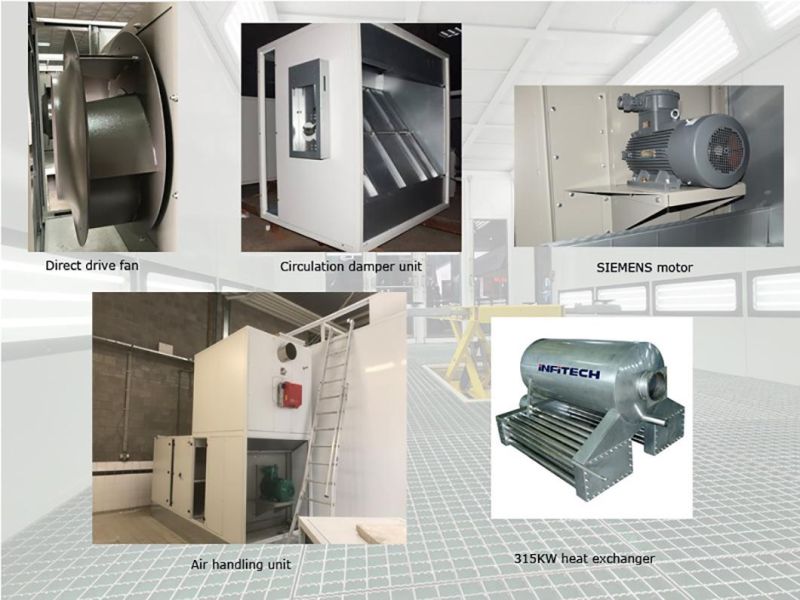

AIR INTAKE AND EXHAUST UNIT
- Non-spark fan & SIEMENS motor
- Cycle damper (for spraying and baking phase) - for paint booth
- 315KW heat exchanger and RIELLO gas burner RS5D - for paint booth

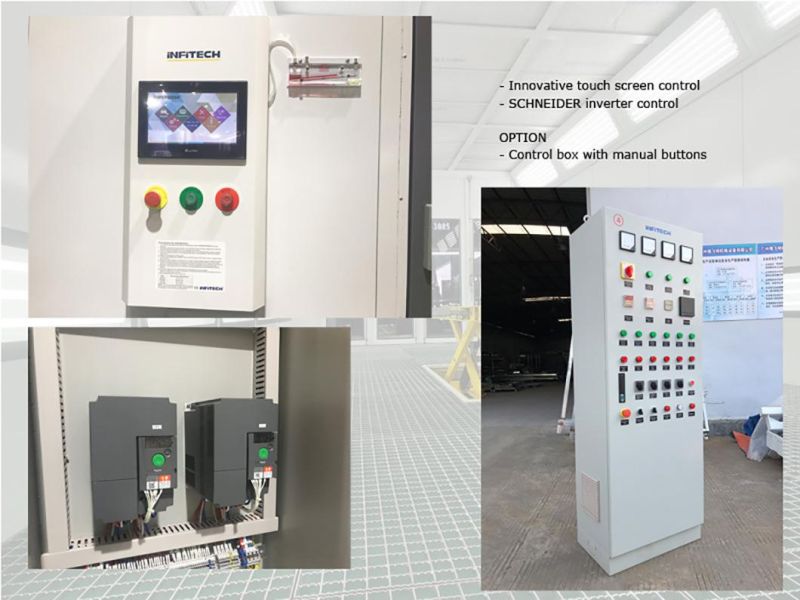

CONTROL
- Touch screen control panel with basic functions and safety functions
- Inverter control
UPGRADE
- Traditional control panel with manual buttons
- Automatic pressure adjustment

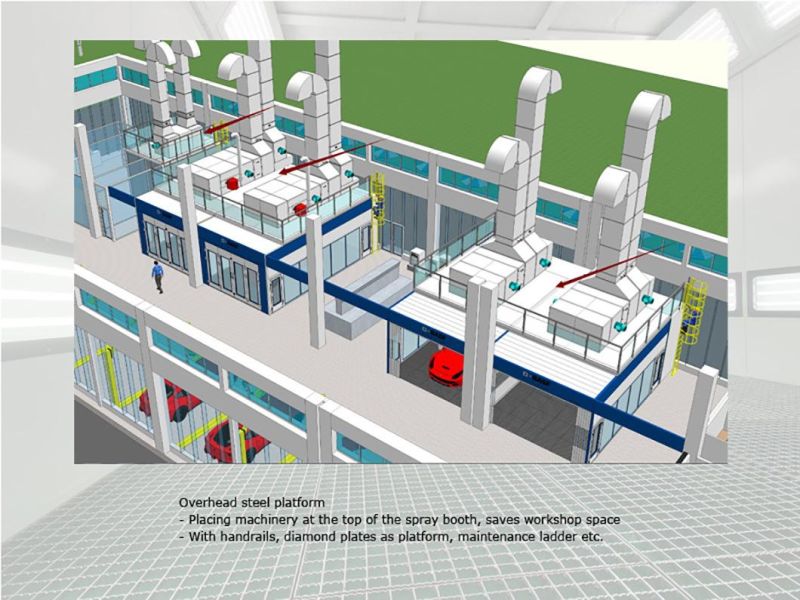

OVERHEAD STEEL PLATFORM (optional)
Application: for placing machinery at the top of spray booth, save workspace.
- Consists of support column, steel platform frame, skid-proof diamond plate, handrail, access stairs and access barriers.
- The loading capacity of the platform: 500kg/m2.
- The handrail adopts double layer vacuum tempered glass, with sound-proof protection device inside.

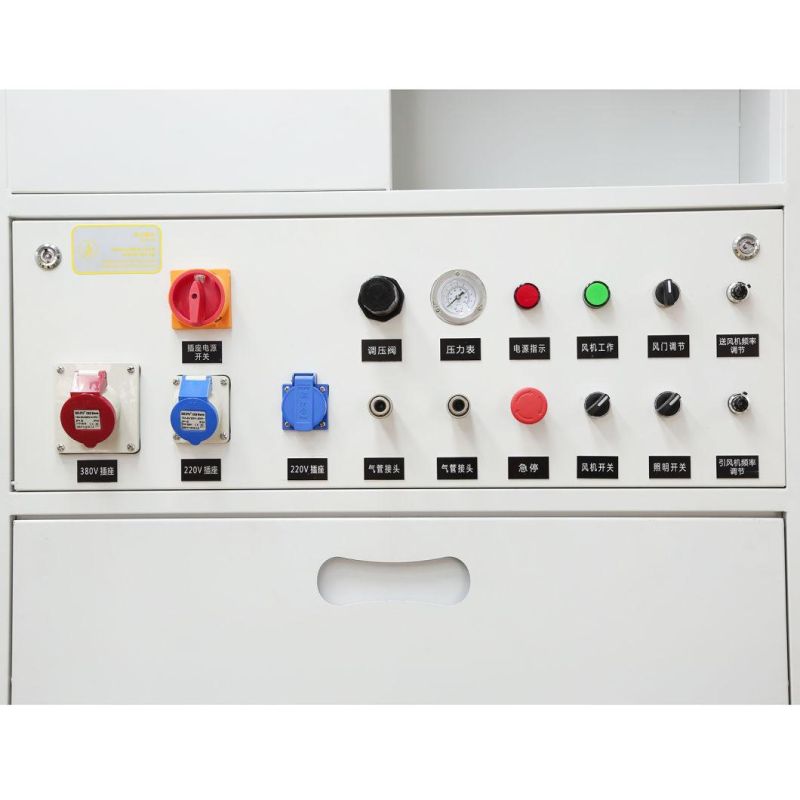

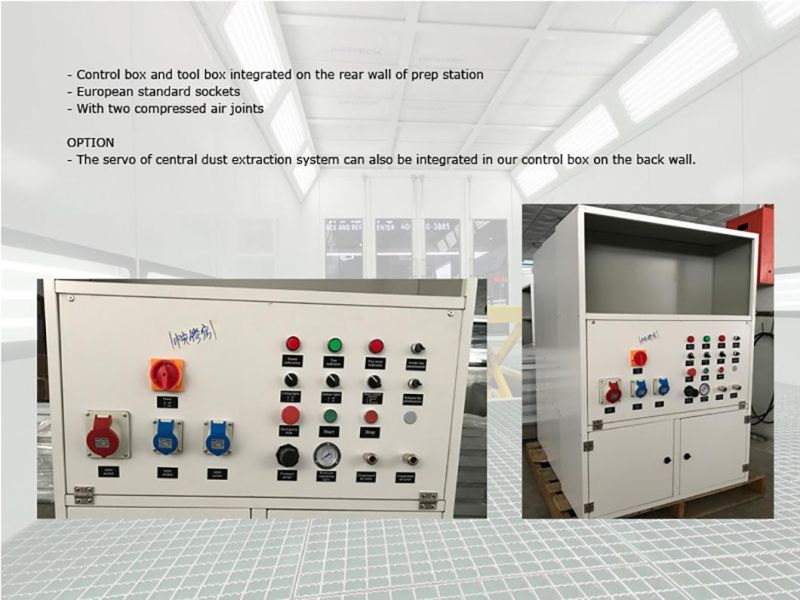

CONTROL BOX AND TOOL BOX (PREP STATION)
Arrangement: on the rear wall
OPTION
- The servo of central dust extraction unit can be integrated in the control panel

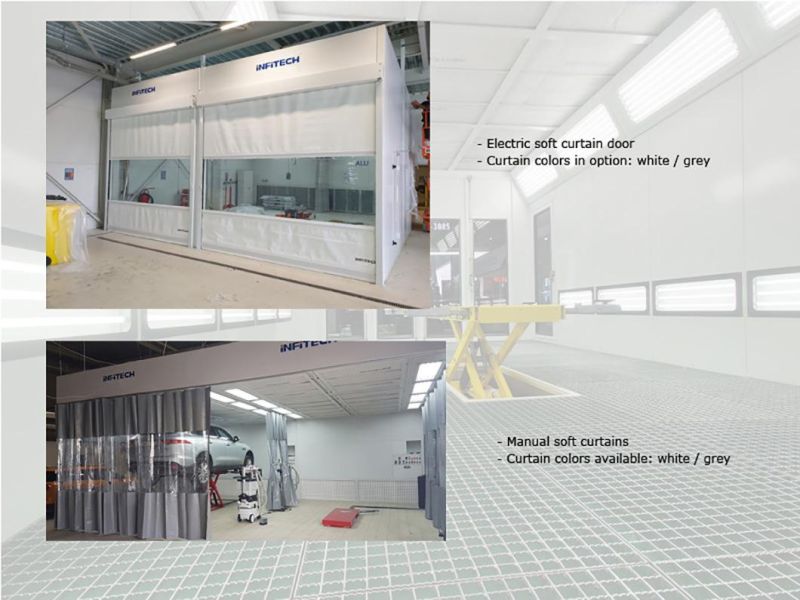

ELECTRIC SOFT CURTAIN DOOR & MANUAL SOFT CURTAINS (FOR PREP STATION)
FAQQ: I do not need to put the machinery at the top.A: That's okay. We can cater to your requirements. Please send your inquiry, and we will work out the ideal solution for you.
Q: Is the observation glass on the side walls heat insulation?A: Yes. It consists of two layers of tempered glass, and the middle is filled with gas. It can help preserve heat of the booth.
Q: Is paint mixing room available?A: Yes. Additionally, we can follow your supplied dimensions and layout for the paint mixing room.
Q: Do you also supply paint booth for industrial application?A: Certainly. Infitech provides coating solution for the automotive, and industrial manufacturing industry, including furniture, heavy machinery etc. And we have abundant experience in offering and delivering customized solutions.
Q: What about the warranty service?A: Infitech offers 2 year warranty for paint booths.
Q: How can I pay you?A: Please make the payment by T/T, 50% payment upon order confirmation, and balance before shipment.
Specially, we can also accept payment method of L/C, West Union etc.
