• Model NO.：Non-standard
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum：600mm
• Lighting：LED Lamp
• Fan：Direct-Drive
• Air Volume：28000 M3,H
• Basement：350mm
• Entrance Door：3200 X 2700mm (W X H)
• Filter：High Efficiency Filter
• Inverter Control：Yes
• Max. Working Temperature：80 Degree Celsius
• Brightness：>1,000lux
• Rated Power：30kw
• Noise：<78 dB
• Walls：50mm Rock Wool Panel
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：6900 x 4000 x 2800mm (L x W x H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. Non-standard Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Plenum 600mm Lighting LED Lamp Fan Direct-Drive Air Volume 28000 M3/H Basement 350mm Entrance Door 3200 X 2700mm (W X H) Filter High Efficiency Filter Inverter Control Yes Max. Working Temperature 80 Degree Celsius Brightness >1,000lux Rated Power 30kw Noise <78 dB Walls 50mm Rock Wool Panel Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 6900 x 4000 x 2800mm (L x W x H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

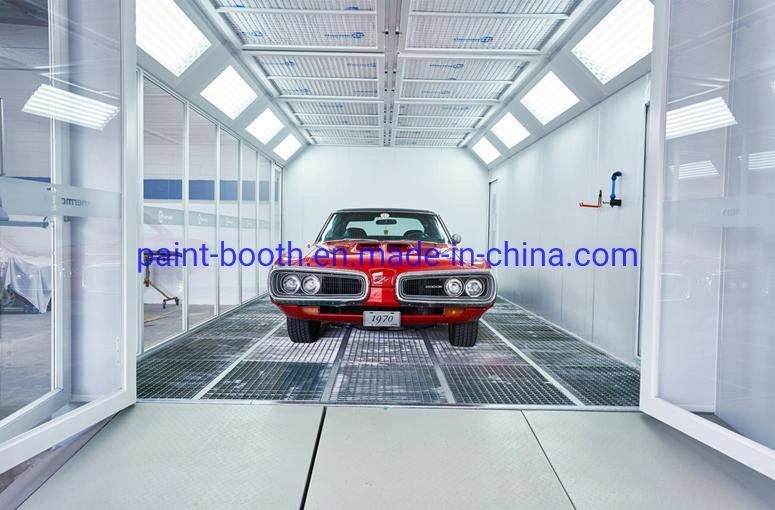

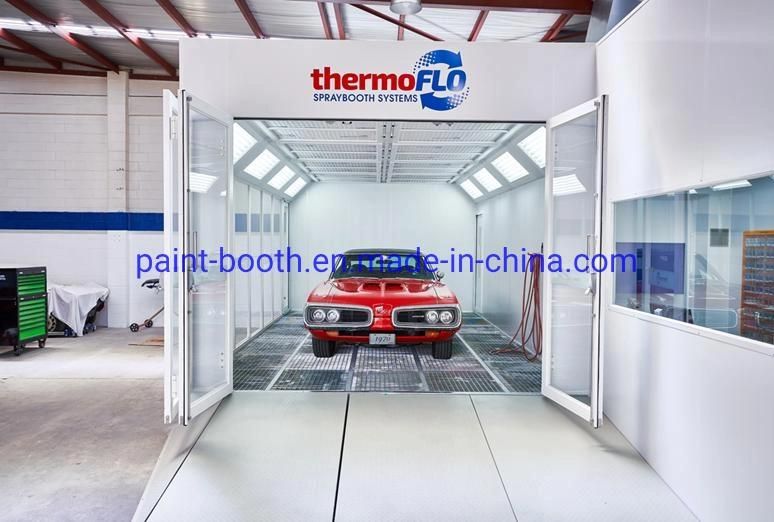

Car Spray Booths Car Paint Booths Auto Paint Booths Auto Spray Booths1.Highlights1) CE certified
2) Internal dimensions: 6900x4000x2800mm
3) Metal basement 350mm with full ramp
4) High performance low noise 2*7.5KW direct drive fan unit
5) High efficiency diesel heating system
6) Inverter control, save energy


2.Design and Details





3. Main Specifications

DESIGN STANDARD	BS EN ISO 12100:2010, BS EN ISO 13355:2016 BS EN ISO 13849-1:2015, BS EN ISO 4414:2010 BS EN 60204-1:2018
BOOTH DIMENSIONS
Internal dimensions	6900 X 4000 X 2800mm (L*W*H)
External dimensions	7010 X 5570 X 3810mm (L*W*H)
BASEMENT
Base design	Galvanized sheet bending forming, full grids Basement(H): 350mm, basement height can be adjusted
Carrying capacity of the grids	800kg/wheel
Filter area	28m2
Drive-in-ramps	full ramps: 3 pieces; size: 2000 X 1030 X 330mm, diamond structure
Grid description	Size: 997 X 756mm, 40 X 3mm, galvanized pressed steel grates instead of conventional steel grates with twisted bars. Aesthetics, durability, stress resistance are the most important features of pressed steel grates.
CABIN

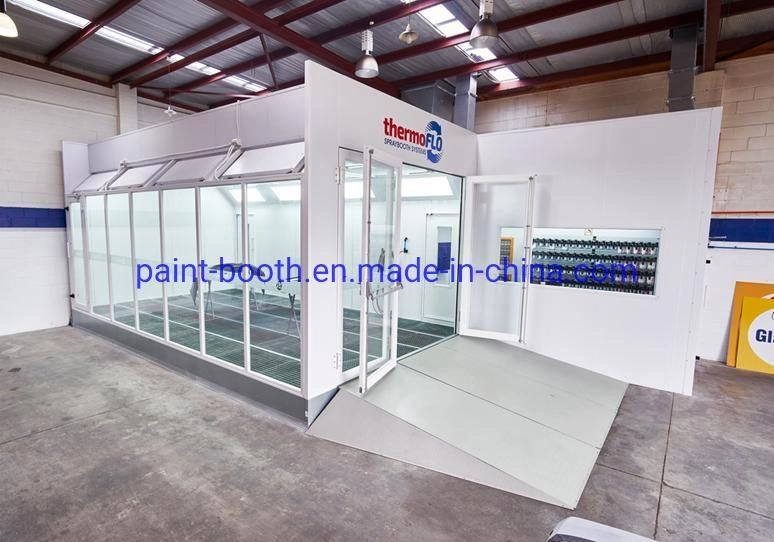

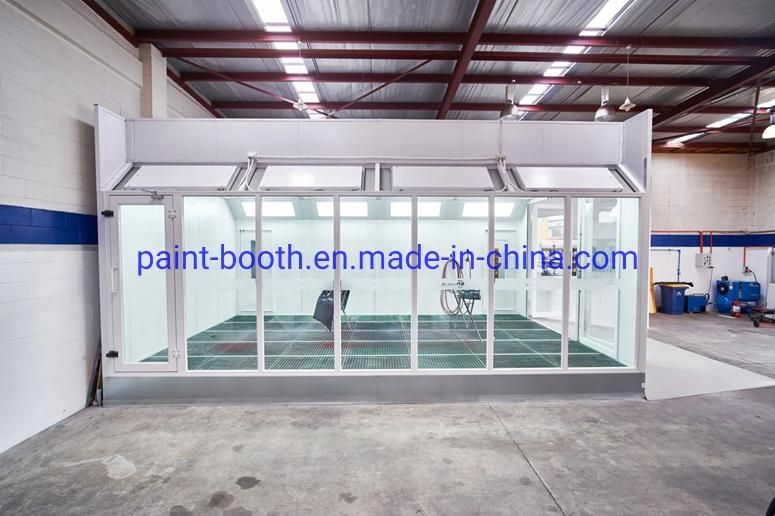

Cabin structure	Wall panel vertical insert, left side with full glass.
Plenum height	600mm
WALL PANEL
Wall panel	50mm dual-skin insulated panels filled with heat resistant rock wool substrate thickness: 0.426mm
Top panel	Single-layer galvanized steel plate bending forming
Edge material	1.0mm galvanized steel plate bending forming
ENTRANCE DOOR
Form	Manual door, 3 wing entry door (2 + 1 structure)
Size	3200 X 2700mm (W*H)
Quantity	Product entry door, 1 set
Door description	Containing frame, with safety glass observation window
PERSONNEL DOOR
Form	Frame structure
Size	800 X 2000 mm (W*H)
Quantity	1 set
Door description	With safety glass observation window
CEILING LIGHTING
Quantity and power	8 sets of light fixtures, each 6 X 24W, 1152W total
Lighting arrangement	On both sides
Lighting description	LED lamp, protection grade IP55
SIDEWALL LIGHTING	without
Brightness	> 1,000Lux
FILTRATION SYSTEM
Pre-filtration	G2 grade pre-filter bag filter
Ceiling filter	F5 class filter cotton, Model SP-600G
Floor filtration	Fiberglass paint arrestor filters
Extract filtration	Simple activated carbon filter mat, M type

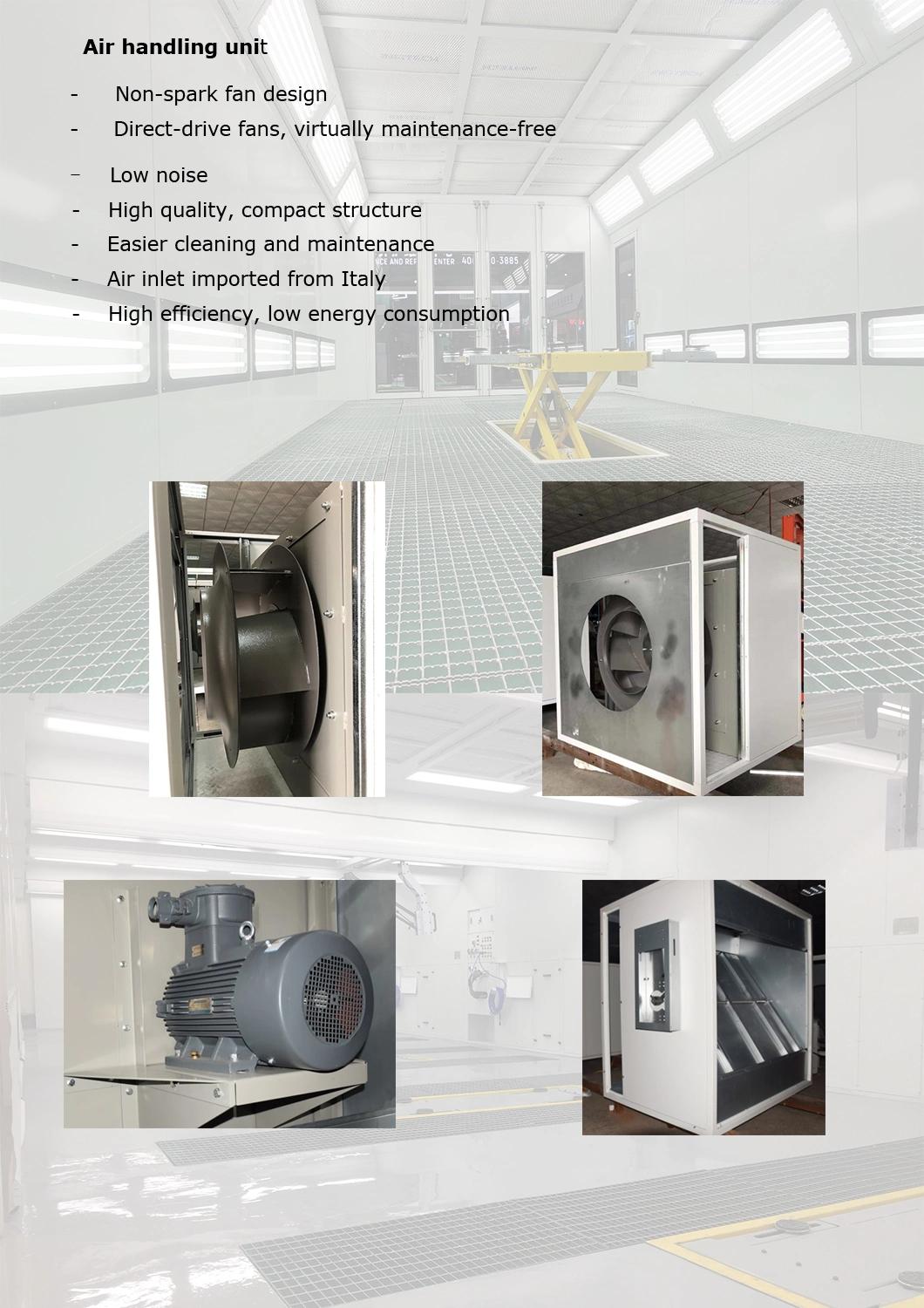

INTAKE SYSTEM
Intake fan	Direct-type turbine fan
Power and motor description	7.5KW, 970rpm, 380V, 50Hz, CE approved motor
Parameter of intake fan	28,000m3/h, 650pa
EXHAUST SYSTEM
Exhaust fan	Direct-type turbine fan
Power and motor description	7.5KW, 970rpm, 380V, 50Hz, CE approved motor
Parameter of exhaust fan	28,000m3/h, 650pa
Empty loaded air speed	+/- 0.27m/s
NOISE	<78dB
HEATING SYSTEM
Heat exchanger material	Stainless steel 1Gr18Ni9Ti(SUS304)
Heat exchanger power	232KW
△ T temperature increase capability	25° C (from -5°C to 20°C in painting phase)
Max. working temperature	80°C
Heating time	8-10 minutes (from 20°C to 60°C in baking phase)
Burner model	RIELLO diesel burner RG5D (two stage)
DUCTWORK
Straight ducting	8 pcs, 3 pcs for air inlet, 5 pcs for air outlet
90°elbow	2 pcs, for air inlet
Cowl	1 pc, for air outlet
Reducer	2 pcs
MANUAL DAMPER	1 pc
ELECTRIC DAMPER	1 pc
CONTROL SYSTEM
Implementation standard	Standard Y/Δ step-down start control system
PLC programmable logic controller	PLC control, higher reliability, lower failure rate
Touch screen control system	User friendly interface featuring touch screen and switches, easy to operate
Pressure detection	Pressure gauge indicates pressure inside the booth.
Features	Painting, heating painting, flash-off, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, motor overload and over-current protection, fan and heating system interlock, automatic constant pressure.
Stack light	4 colors Green: Spray Mode Blue: Flash-off Yellow: Baking Mode Red: Failure Alarm When baking is over, buzzer alarms.
SPECIAL ITEM	Rated power: 20KW
OPTION
SIEMENS motor	SIEMENS motor instead of the Chinese brand CE motor
Drive-in-ramps	3 pieces; size: 2000 X 1030 X 330mm, diamond structure

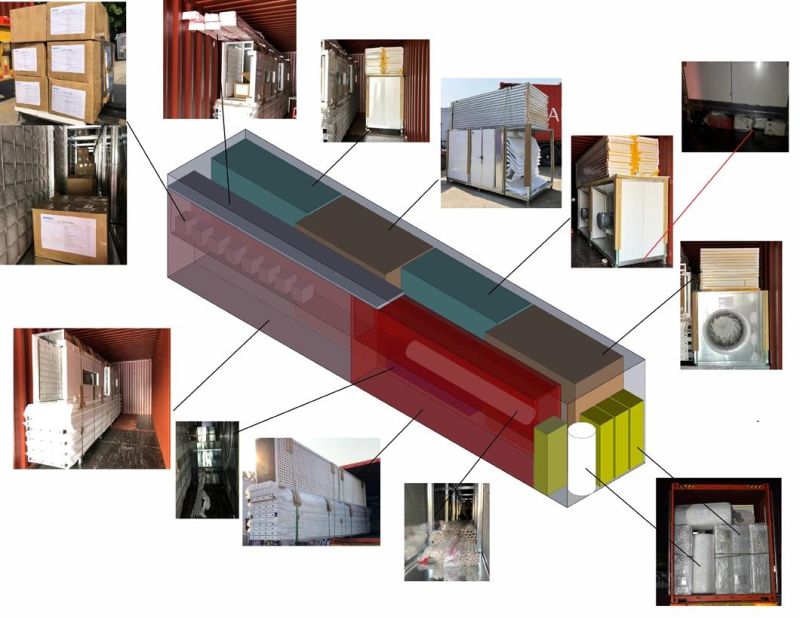

4. Packaging & Loading

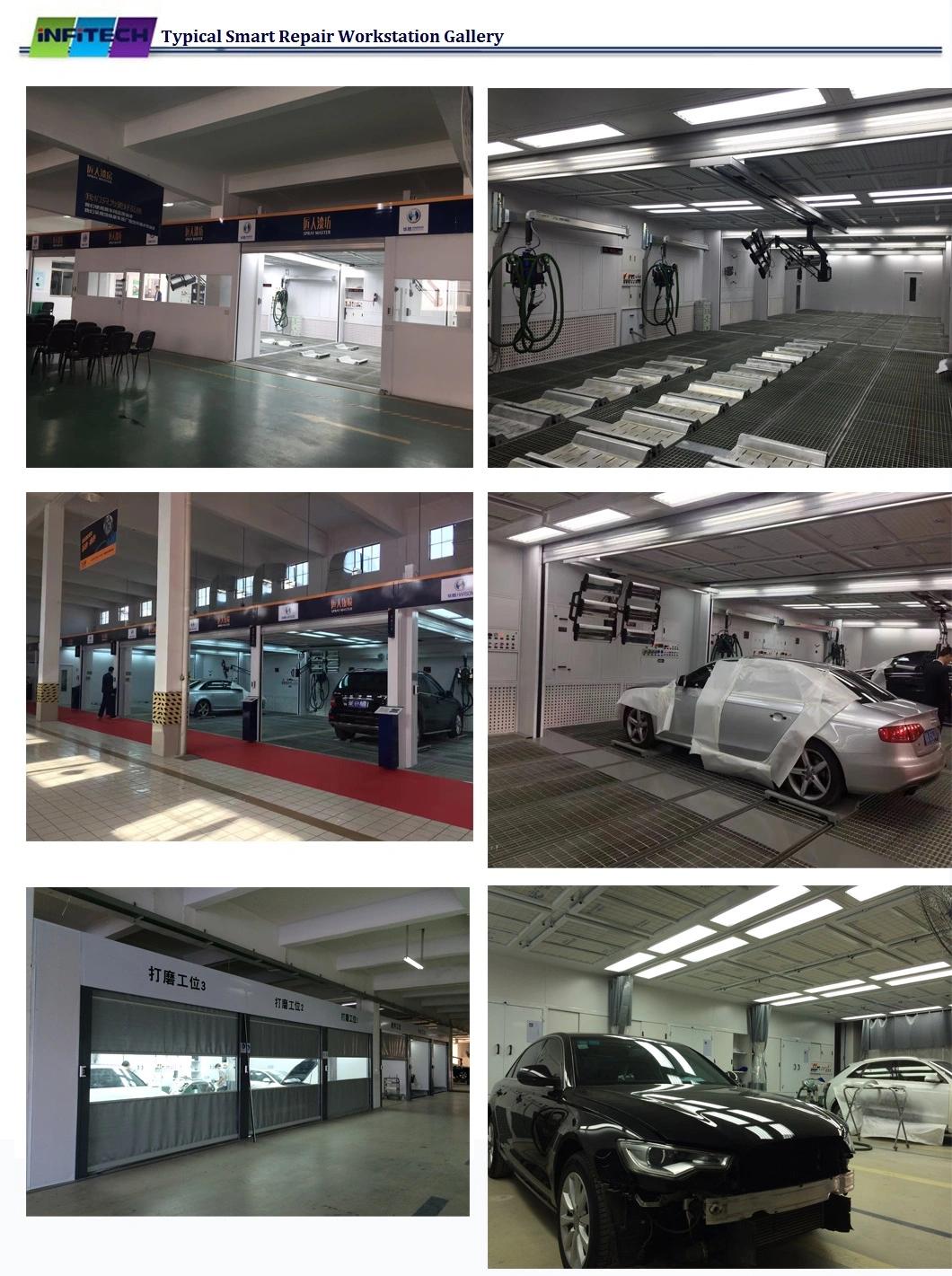

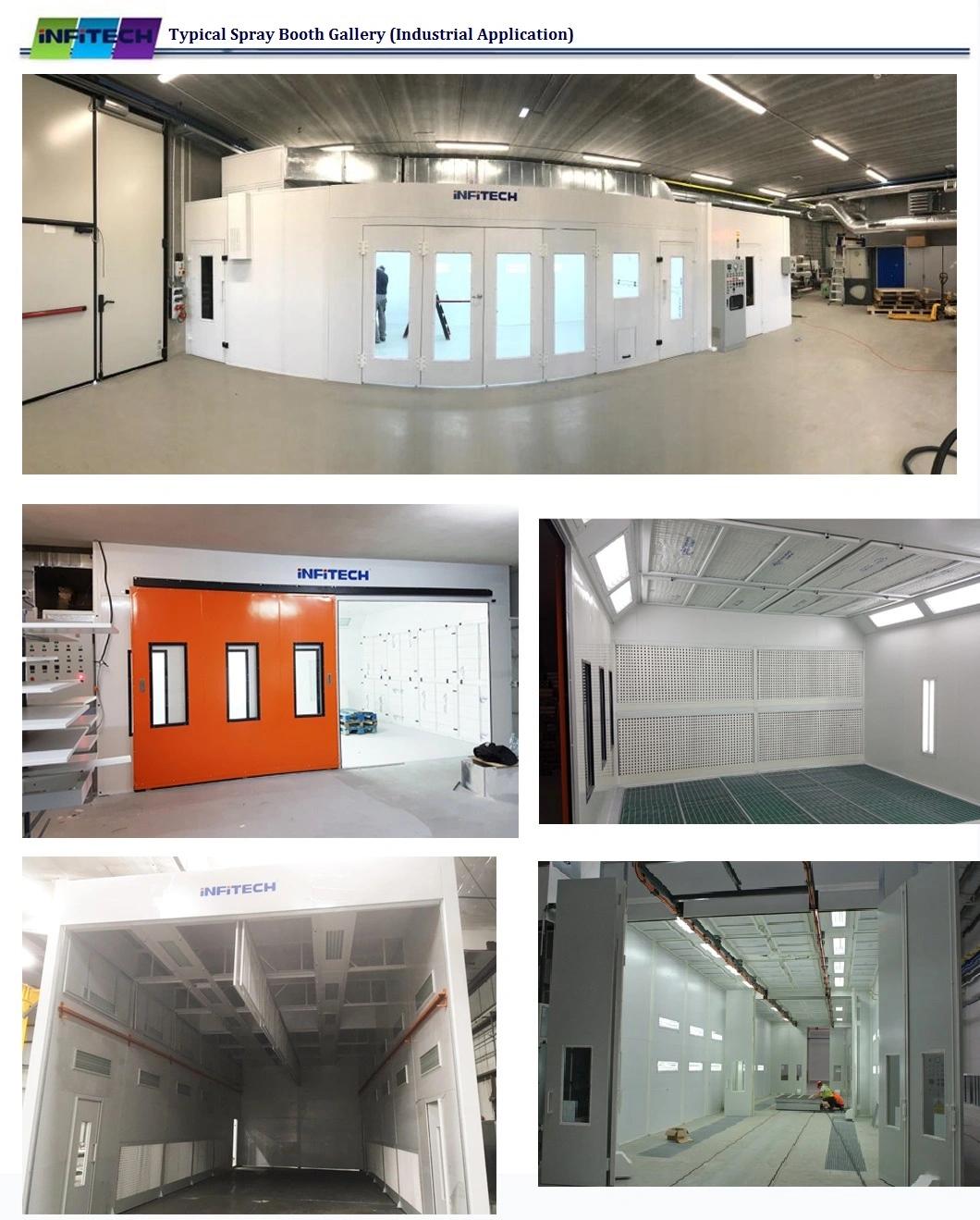

5.Typical Projects





6.Company Profile

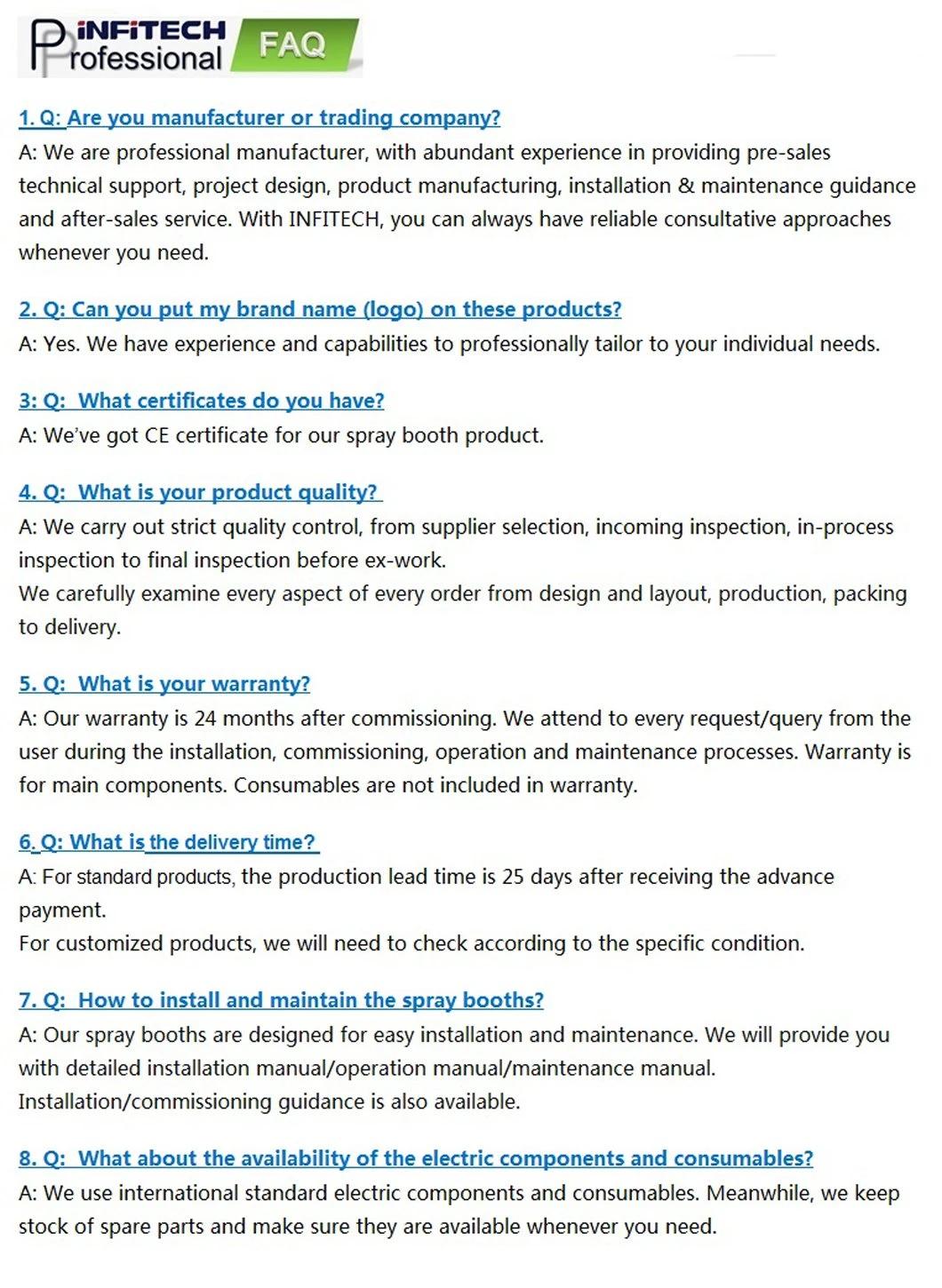

7)FAQ
