Auto Spray Booths/Auto Paint Booths/Auto Spray Paint Booths Price for Auto Refinishing

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • After-sales Service：24 Hours After Service
  • Warranty：2 Years
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Brand：Infitech

Base Info

  • Model NO.：IT-SUPER-701
  • Coating：Powder Coating
  • Airflow Direction：Fully Undershot-type
  • Heating Mode：Gas Heating
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Plenum (Height)：600mm
  • Extraction：350mm
  • Walls：50mm Rock Wool Walls
  • Brightness：>1, 000lux
  • Empty Loaded Air Speed：0.28m,S
  • Burner：Riello Gas Burner RS5d
  • Noise：<78dB
  • Maximum Working Temperature：80 Degrees Celsius
  • Grids Carrying Capacity：900kg,Wheel
  • Extraction Area：28m2
  • Air Volume：28, 000m3,H
  • Rated Power：20kw
  • Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
  • Specification：7000 X 4000 X 2800mm (L X W X H)
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：1000 Sets,Year

Description

Rated power: 15KW

4.DETAILS

BOOTH STRUCTURE (SPRAY BOOTH)
  • 148,380wAuto Spray Booths/Auto Paint Booths/Auto Spray Paint Booths Price for Auto Refinishing

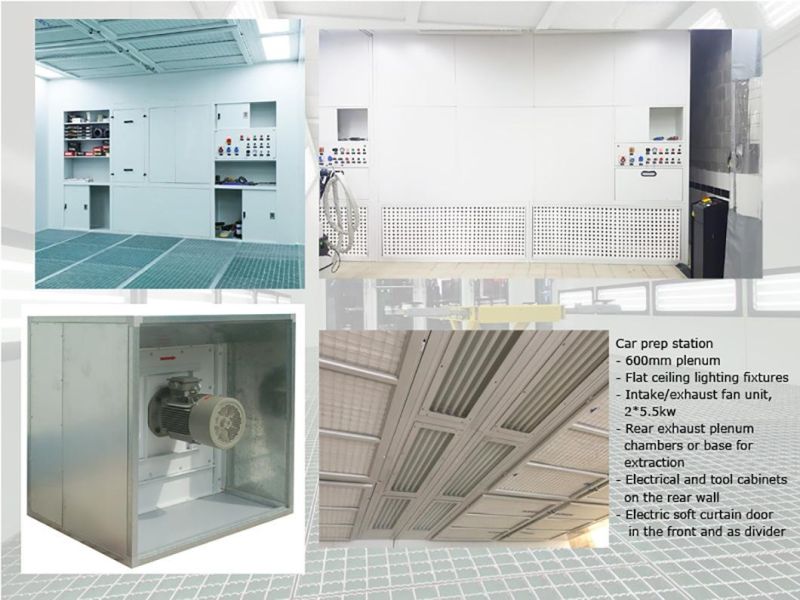

    CAR PREP STATION
    - 600mm plenum
    - Flat ceiling lighting fixtures
    - Intake and exhaust fan unit, 2*5.5kw
    - Extraction
     Option A: extraction through exhaust plenum chambers at the back
     Option B: extraction through base with grids in the ground
    - Electrical and tool cabinets on the rear wall
    - Electric soft curtain door in the front and as divider
    Auto Spray Booths/Auto Paint Booths/Auto Spray Paint Booths Price for Auto Refinishing

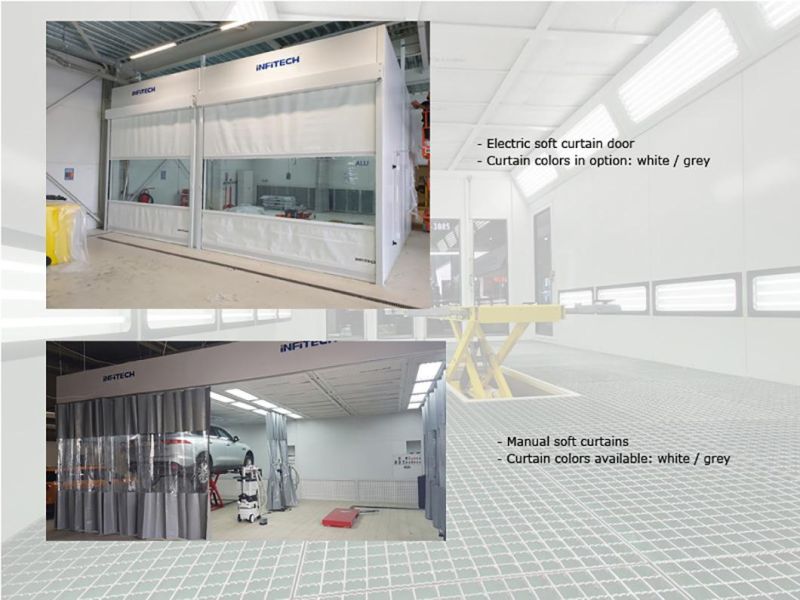

    ELECTRIC SOFT CURTAIN DOOR
    Auto Spray Booths/Auto Paint Booths/Auto Spray Paint Booths Price for Auto Refinishing
    FAQQ: How long is the production lead time?A: 20 days from advance payment received for standard spray booths.
    For non-standard projects, we will have to check the schedule case by case.
     Q: How long is the warranty?A: 2 year warranty for main components, not including consumables.
     Q: Where is your factory located?A: Baiyun, Guangzhou, 15 minutes' drive from the airport. Welcome to visit us at the factory.

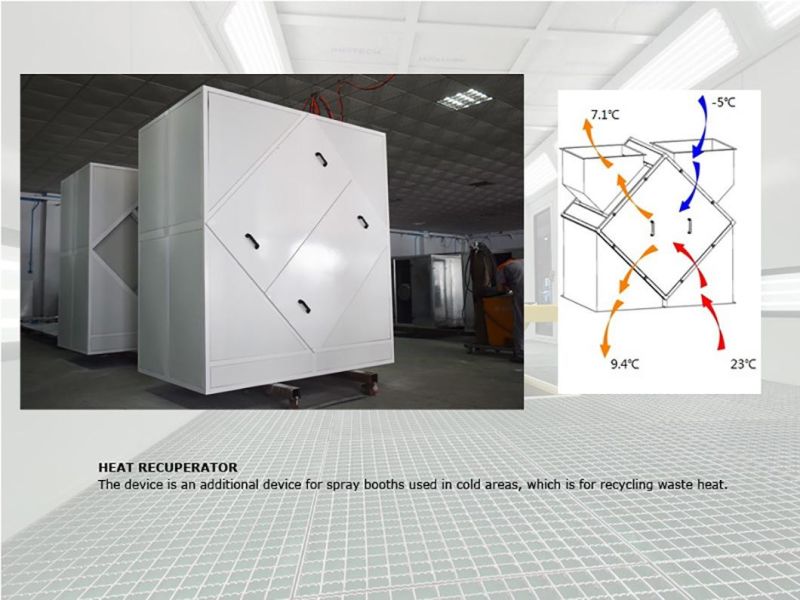

     Q: With the heat recuperator, can I put the machinery at the top of the spray booth?A: Yes, it is still okay.
     Q: For the heat recuperator, does the fresh air and exhaust air will contact with each other?A: According to the design, the air is forced to pass through the heat exchanger core, two air streams (i.e. fresh air and exhaust air) never come into direct contact, avoid the transfer of any smell and moisture.
     Q: How long can the spray booth serve?A: If the booth can be maintained regularly and properly, the common service time of the spray booth is 7-10 years.
