• Model NO.：IT-W1
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Wet-type
• Condition：New
• Usage：Painting Small Parts
• Empty Loaded Air Speed：0.3m,S
• Voltage：220V,60Hz
• Transport Package：Polyfoam and Metal Frame
• Specification：1500 x 1200 x 2100mm(L x W x H)
• Trademark：INFITECH
• Origin：China
• HS Code：8419899090
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. IT-W1 Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Wet-type Condition New Usage Painting Small Parts Empty Loaded Air Speed 0.3m/S Voltage 220V/60Hz Transport Package Polyfoam and Metal Frame Specification 1500 x 1200 x 2100mm(L x W x H) Trademark INFITECH Origin China HS Code 8419899090 Production Capacity 500 Sets/Year

Product Description

INFITECH water-curtain spray booth for small parts

Overall introduction

The water-curtain plate of the environmental water-curtain spray booth is made from stainless steel. It is easy to clean and anti-corrosive. The water can be used circularly, and paint slag can be collected and fished out, which does not pollute the environment.
The water-curtain spray booth is reliable and easy to operate, with large air volume and good filtration effect. The water volume is adjustable.
It can be used to paint small hardware products and small work-piecees.

Technical parameters

Item	Specifications
Dimensions	1500 x 1200 x 2100mm(L X W X H)
Working area	1400 x 1100(W x H)
Height of water tank	800mm
Ceiling light	1 unit x 2pcs, 36W each IP54 Flame-proof
Pump	0.75kW, 1 set
Water pipe	PVC pipe valve
Water supply system	Equipped with float switch
Drainage system	Equipped with a draining float
Motor and fan	1 set, axial flow fan with belt drive motor, 1.1 kW
Air volume	7,500 m3/h
Empty air speed	0.3m/s
Paint mist treatment	Wet type, by water
Rated power	2 kW

Company introduction

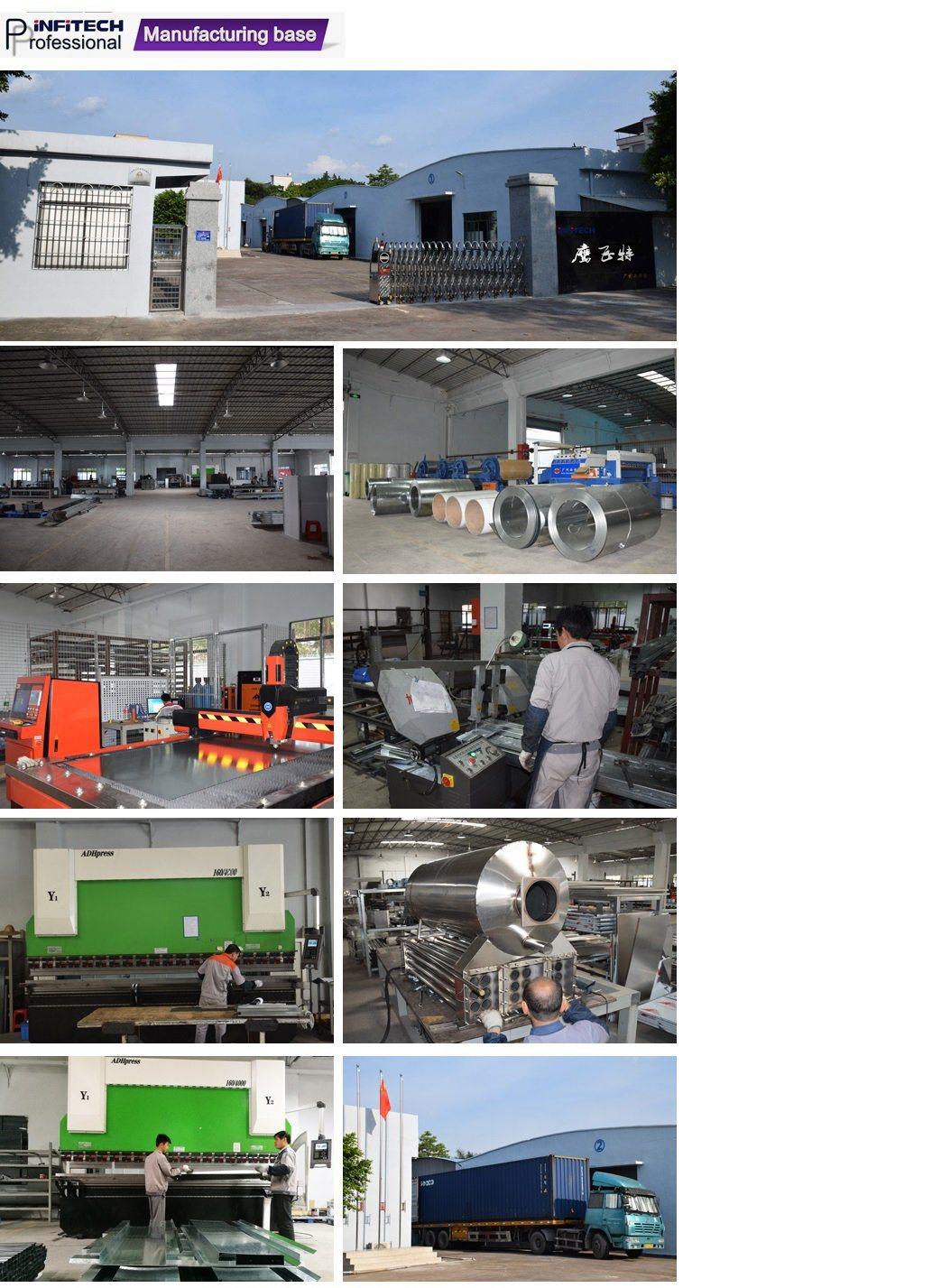

Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.
