Infitech Industrial Spray Booth Drying Oven Paint Cabin Paint Booths

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.

After-sales Service：24 Hours After Service
Warranty：2 Years
Type：Spray Booth
Certification：CE
Substrate：Steel
Brand：Infitech

Base Info

Model NO.：Non-standard
Coating：Powder Coating
Airflow Direction：Rear Semi Downdraft
Heating Mode：Diesel
Paint Mist Treatment：Dry-type
Condition：New
Empty Loaded Air Speed：+,- 0.45m,S
Fan Capacity：18000m3,H
Brightness：>1000lux
Transport Package：Polyfoam and Metal Frame
Specification：8000 X 4000 X 2800mm (L X W X H)
Trademark：INFITECH
Origin：China
HS Code：8419899090
Production Capacity：300 Sets Per Year

Description

Drying RoomSTANDARD DESIGNAS/NZS 4114.1:2003BOOTH DIMENSIONS Internal dimensions8050 X 9000 X 2800mm (L X W X H)External dimensions8110 X 9000 X 3460mm (L X W X H)WALL PANEL Wall panel50mm dual-skin insulated panels filled with heat resistant rock woolTop material50mm dual-skin insulated panels filled with heat resistant rock woolEdge material1.2mm galvanized plate bending formingPLATE ROLL UP DOOR Door size4000 x 2800mm(BxH)Quantity2 setsDoor description

Sanding RoomSTANDARD DESIGNAS/NZS 4114.1:2003BOOTH DIMENSIONS Internal dimensions4290 X 7000 X 2800mm (L X W X H)External dimensions5000 X 7100 X 3460mm (L X W X H)FOUNDATION AND FLOOR FoundationWithout metal foundation, with air extraction plenum chambers installed at rear wall of the cabinFiltration area3.5 m²WALL PANEL Wall panel50mm dual-skin insulated panels filled with heat resistant rock woolTop material50mm dual-skin insulated panels filled with heat resistant rock woolEdge material1.2mm galvanized plate bending formingELECTRIC CURTAIN DOOR FormElectric driveSize5800 X 2650 mm (W X H)Quantity1 setDoor description-Three sessions, the middle part is transparent, the upper and bottom part is gray, rising speed is 0.2m /s; Can be controlled internally and externally;
- Anti-flaming cloth, tidy, compressed, good sealing effectCEILING LIGHTING(Accessible from outside the booth)Quantity and power9 sets of light fixtures, each 4 X18W, total 648WLighting arrangementDistributed evenly at the ceilingLighting descriptionProtection grade IP55, CE certifiedBrightness>800LuxFILTRATION SYSTEM Bottom filter & exhaust filterPleated andreae filter + Fibreglass paint arrestor filterVENTILATION SYSTEM Direct drive motor (Exhaust Air)2 X 1.5KW, 1450RPM, 380V, 50HZ, SIEMENSParameters of exhaust fan10,000m³/hELECTRIC CONTROL CABINET- Fan start, emergency stop switch, failure indication;
- Lighting switch;
- 1x380V16A explosion-proof power supply; 2x 220V explosion-proof power supply;
- 2 compressed air connectors, configure the gauge, regulator valve;
- TOOL CABINET, easy job material storage, sorting, provide efficiency;SPECIAL ITEMRated power:3KW Company introductionGuangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is the professional manufacturer of coating equipment.
Products include:
- Spray booth
- Spray line
- Preparation bay
- Mixing room
- Sandblasting booth
- Powder coating booth
- Vacuum dry sanding system

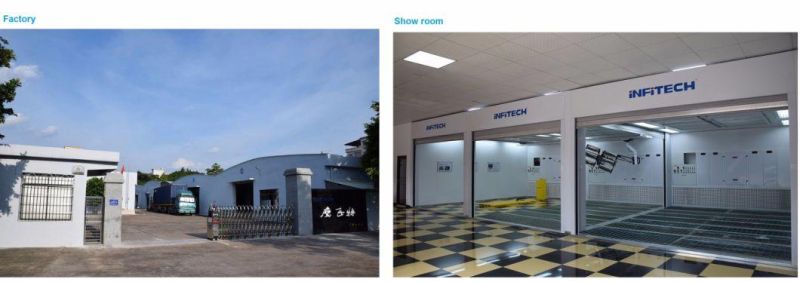

Our factory and office covers an area of 10,000 square meters. We have state-of-the-art production equipment to ensure the workmanship of our products.
We have abundant experience in the spray booth industry, and we are especially pride ourselves in delivering superior customized spray booth projects at favorable price. Our product and service enjoy a good reputation among our customers from home and abroad.

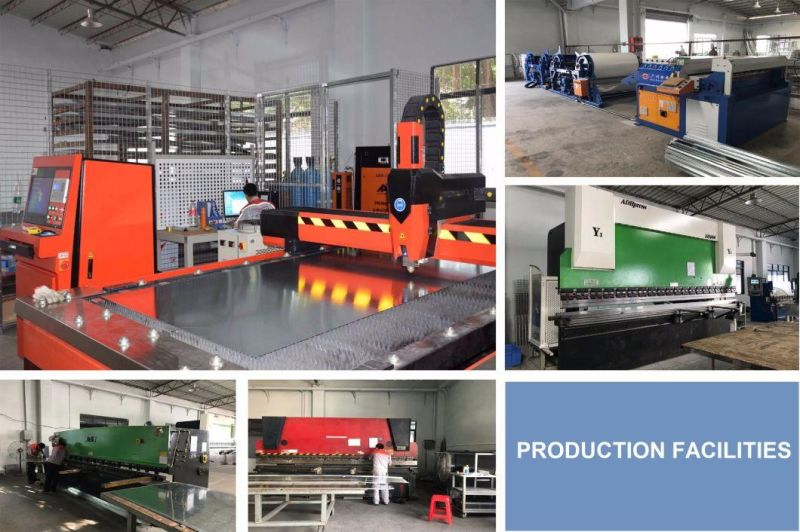

Facilities
We have state-of-the-art production equipment to ensure the workmanship of our products.

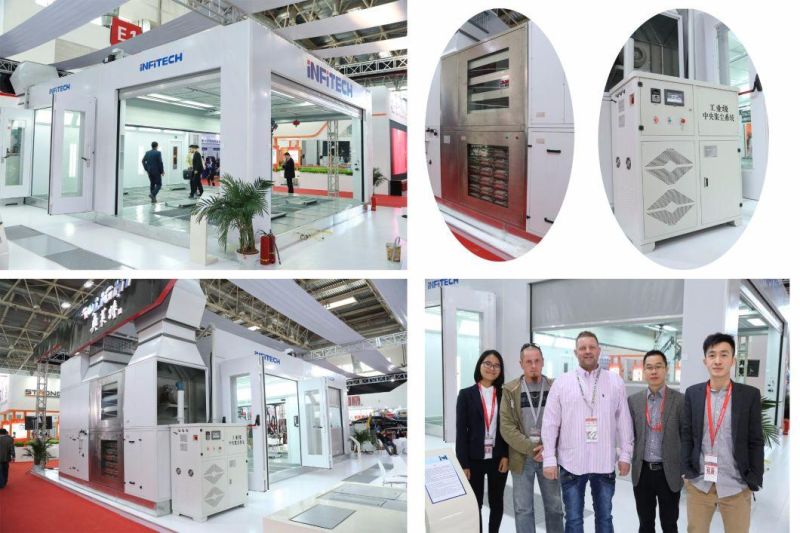

Exhibition

Packing and loading:

Welcome to contact us.
