Home Use Car Elevator Lift Scissor Car Lift Parking Platform

Qingdao Mutrade Co., Ltd.
  • Lifting Capacity：≥5T
  • Certification：CE, ISO

Base Info

  • Model NO.：S-vrc
  • Driving Motor Number of Mechanical Lift：2
  • Height (mm：4000 - 12000
  • Width (mm)：2000 - 5000
  • Length of Platfrom：4000 - 6000 mm , Customized
  • Width of Platform：2000 - 3500 mm , Customized
  • Lifting Height：2500 - 5000 mm , Customized
  • Capacity：2000 - 5000 Kg , Customized
  • Power Supply：380V 3p , Customized
  • Finished Treatment：Spray Paint
  • Production Time：35 - 50 Days
  • Warranty：5 Years Structure and 1 Year Part
  • Transport Package：Standard Export Packing
  • Specification：CE , ISO9001
  • Trademark：Mutrade Parking
  • Origin：Qingdao, China
  • HS Code：84289020
  • Production Capacity：210 Units,Month

Description

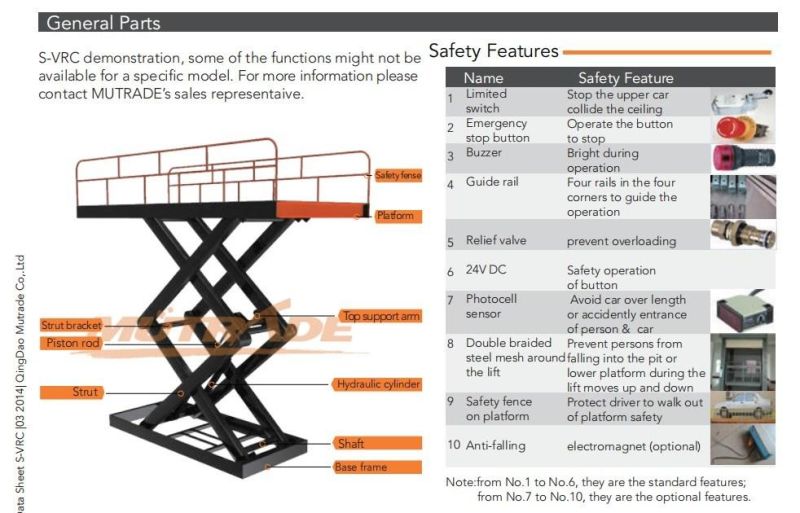

Model S-VRCLifting capacity2,000-10,000 kg*customizedLifting height2,000-10,000mm*customizedplatform width2000mm-5000mm*customizedPlatform length2000mm-6000mm*customizedPlatform materialDiamond steel sheet (standard) / 4mm Aluminum steel sheet (optional)No. of levelaccording to your requirementDrive modeHydraulicOperationbutton switch (standard) / remote controller (optional)Power pack4 kw hydraulic power pumpLifting speed4m/minFinishingPaint sprayColoraccording to your requirementSafety FeaturesNameSafety FeatureLimited switchStop the upper car collide the ceilingEmergency stop buttonOperate the button to stopBuzzerBright during operationGuide railFour rails in the four corners to guide the operationRelief valveprevent overloading24V DCSafety operation of buttonDouble braided steel mesh around the liftPrevent persons from falling into the pit or lower platform during the lift moves up and downSafety fence on platformProtect driver to walk out of platform safetyAnti-fallingelectromagnet (optional)Photocell sensorAvoid car over length or accidently entrance of person & car
Home Use Car Elevator Lift Scissor Car Lift Parking Platform
Home Use Car Elevator Lift Scissor Car Lift Parking PlatformOur Company
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking solution providers in CHINA. We are committed to provide the most suitable and cost effective parking solutions to our customers all over the world.

Hydro-Park is a subsidiary company and sub-brand built by Mutrade for high-end mechanical simple parking equipment. We develop, design and manufacture mechanical parking equipment with our own advanced technology and kept consistent high quality.
Our target is to become world class manufacturer with following competitive advantages:

Advanced Technology

Precise Manufacture Processing

Strong Service Support

Customer Oriented

For all the people who work in the mechanical parking business, if you are looking for a reliable partner in CHINA, Mutrade is the one company you can not miss!Home Use Car Elevator Lift Scissor Car Lift Parking Platform

Parteners!

Home Use Car Elevator Lift Scissor Car Lift Parking PlatformHome Use Car Elevator Lift Scissor Car Lift Parking Platform

Certifications

We have different certificates for different markets.
Home Use Car Elevator Lift Scissor Car Lift Parking Platform

Q&A
1. Is this product can be used indoor or outdoor?
S-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.
2. What is the pit dimensions needed for S-VRC?
The dimensions of pit depend on platform size and lifting height, our technical department will provide you
the professional drawing to guide your excavation.
3. What is the surface fnishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better
water-proof and looking.
4. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less
than one movement per hour), a single phase power supply can be used, otherwise, it may lead to motor
burnt out.
5. Can this product still operate if electricity failure happens?
Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure
happens often in your city.
6. What is the warranty?
It's five years for the main structure and one year for moving parts.
7. What is the production time?
It's 30 days after prepayment and the final drawing confirmed.
8. What is the shipping size? Is LCL acceptable, or it must be FCL?
As S-VRC is a fully customized product, the shipping size depends on the specifications you need.
As the structure of S-VRC is pre-assembled, the package will take most space of a container, LCL cannot be used.
20 feet or 40 feet container is necessary as per the platform length.
