Outdoor Water Proof Car Paint Room/ Spray Booth with Factory Direct Sale Price
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Auto Painting Spray Booth Bake Oven for Car
- Certification：CCC, CE, GS, SGS
- Substrate：Steel
- Brand：Cor
Base Info
- Model NO.：HY-CB40B
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：2rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Lift,Tire Changer,Wheel Balancer
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB40B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift/Tire Changer/Wheel Balancer Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Outdoor water proof Car Paint Room/ Spray Booth with Factory direct sale Price1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

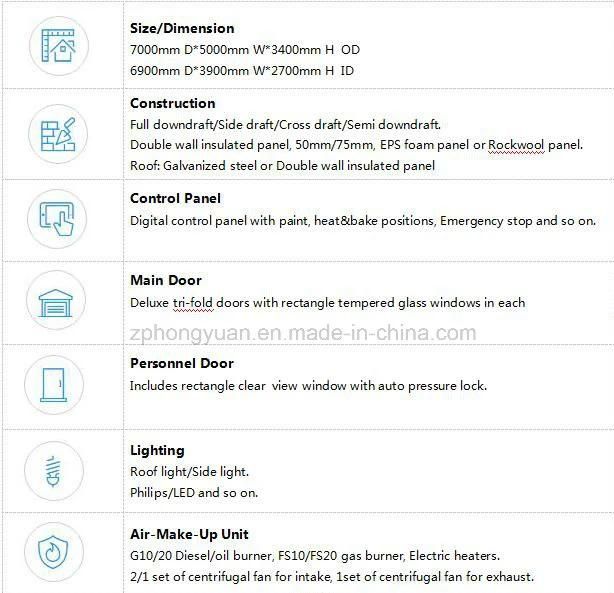

Quick Specification of the Outdoor water proof Car Paint Room/ Spray Booth with Factory direct sale Price
Details information of the spray room
| Model | HY-CB40B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <13kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2row of grates and 3rows of diamond plates. |
| Intake | TWO sets of fan, motor: 4.0kW. |
| Exhaust | One set of fan, motor: 4.0kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner./electric heating system/Riello gas burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

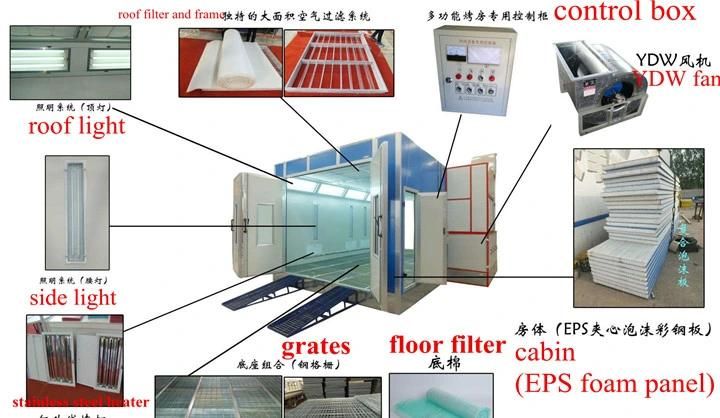

Details show of Outdoor water proof Car Paint Room/ Spray Booth with Factory direct sale Price

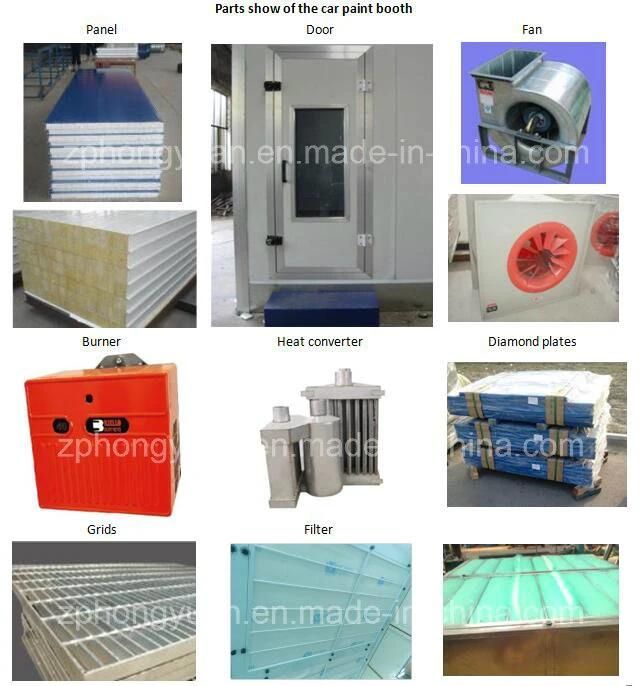

parts show of paint booth
Production area and equipment for Outdoor water proof Car Paint Room/ Spray Booth with Factory direct sale Price
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us Inquiry ABOUT Outdoor water proof Car Paint Room/ Spray Booth with Factory direct sale Price
