Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Airflow Direction：Lateral Undershot-type
  • Paint Mist Treatment：Dry-type

Base Info

  • Model NO.：IT-L15-W6
  • Condition：New
  • Fan：Direct-Drive, 2X11kw
  • Air Volume：70,000m3,H
  • Heat Exchanger：232kw X 2
  • Burner：Riello Gas Burner RS5d X 2
  • Walls：60mm Thick Rock Wool Panels
  • Plenum：800mm High
  • Filters：High Efficiency Filters
  • Warranty：2 Years
  • Empty Loaded Air Speed：0.22m,S
  • Noise：<78dB
  • Touch Screen Control：Yes
  • Lighting：LED Lamp
  • Illumination：>1,000lux
  • Max. Working Temp.：80 Degree Celsius
  • Rated Power：50kw
  • Transport Package：Polyfoam and Metal Frame
  • Specification：15000x6000x5000mm
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：1000 Pieces,Year

Description

High Performance CE Certified Spray BoothITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions15000 X 6000 X 5000mm (L X W X H)External dimensions15160 X 9370 X 6500mm (L X W X H)Plenum800mm highExtractionSide downdraft, through two rows of exhaust plenum chambersEntrance door1 set, 5000 X 4500mm (W X H), electric doorPersonnel door4 sets, 800 X 2300mm (W X H)Walls60mm rock wool panelsCeiling lighting (LED)12 sets, each 4 X18W, 864W totalSidewall lighting (LED)24 sets, each 4 X 18W, 1,728W totalBrightness>1,000LUXFiltersPre-filter, high efficiency filter, floor-level filter, exhaust filterAir intakeDirect-type turbine fan, 2x11KW WEG motorAir exhaustDirect-type turbine fan, 2x11KW WEG motorAir volume70,000m3/hEmpty loaded air speed+/-0.22m/sMaximum working temperature80ºCHeat exchanger power2x232KWBurner (Max. calorific value)2 x RIELLO gas burner RS5D (two stage)ControlsTouch screen control panel
Independent control for each working zoneRated power50KW

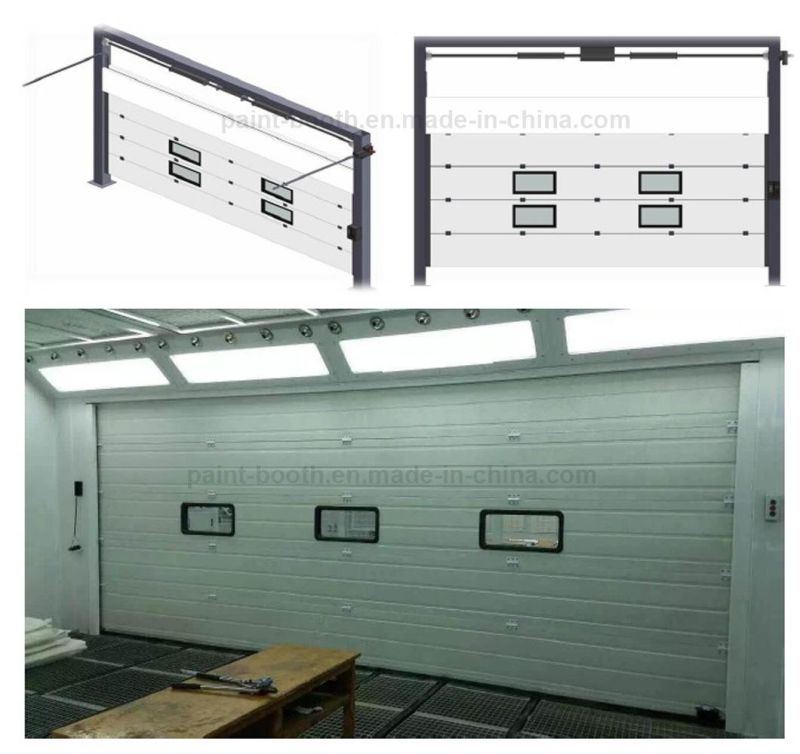

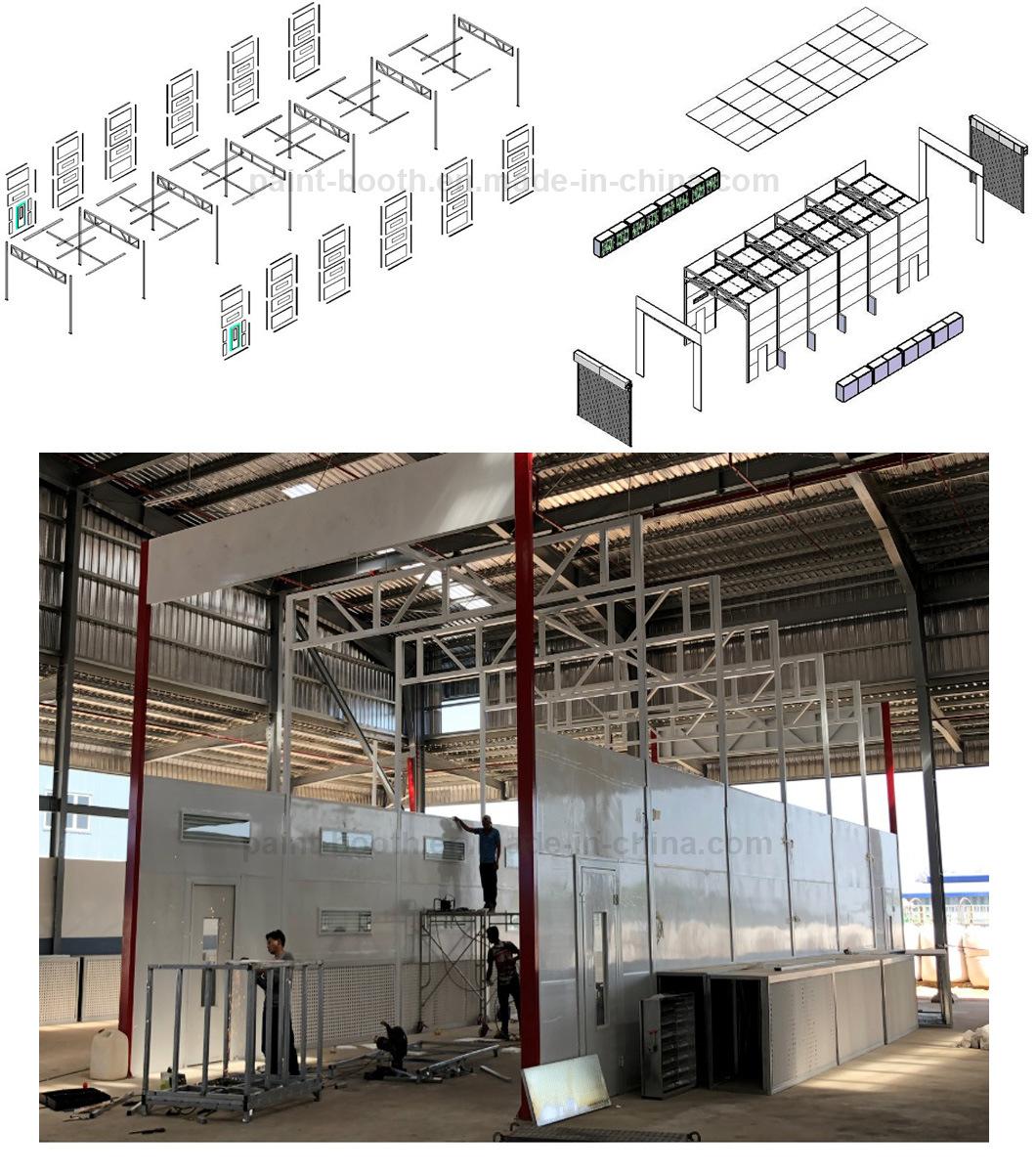

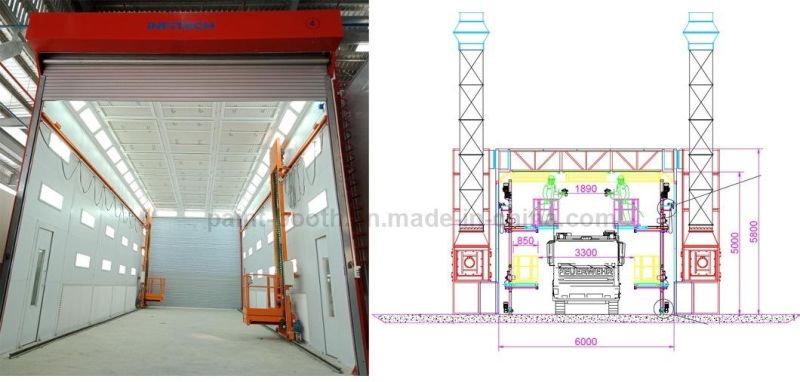

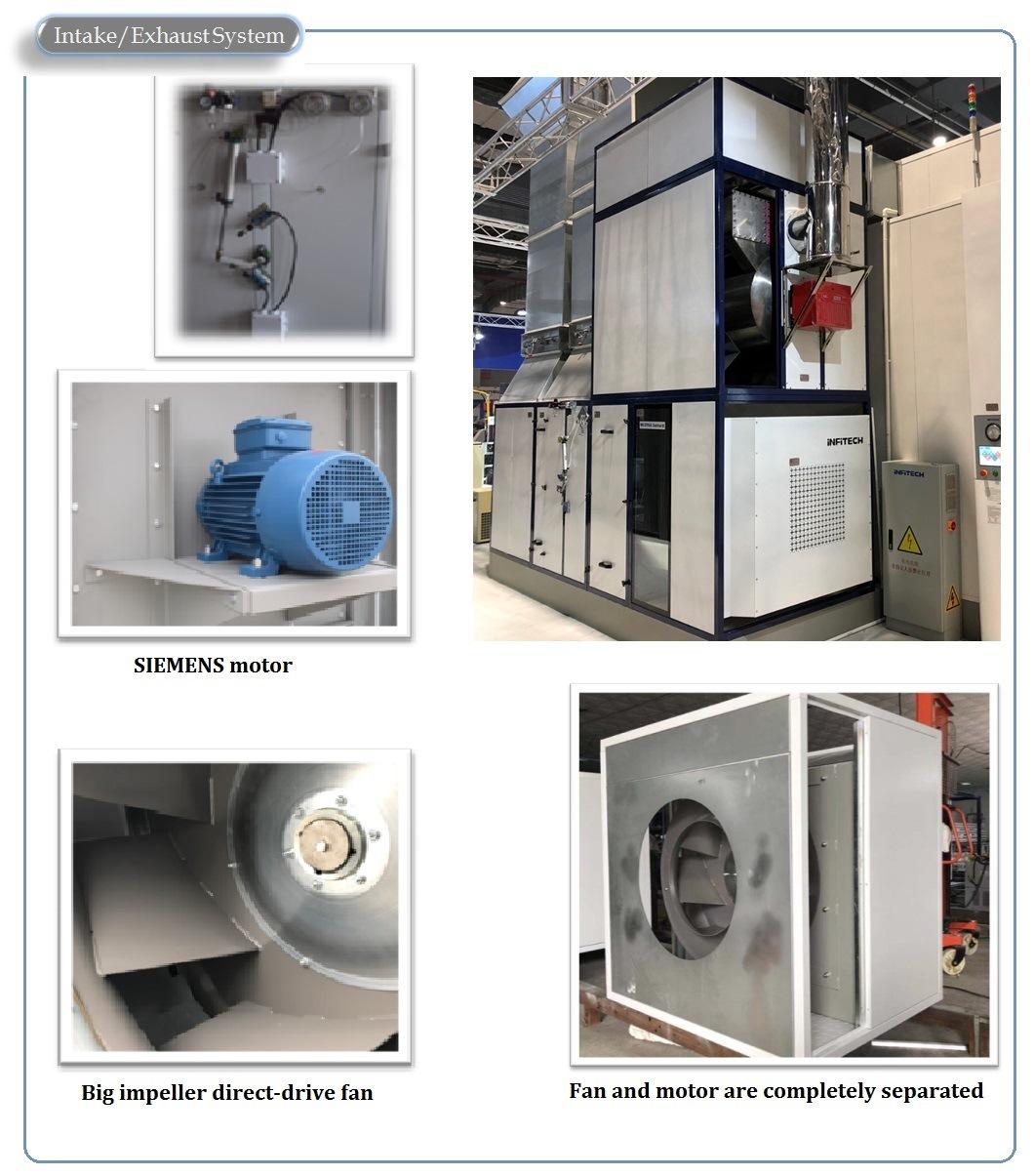

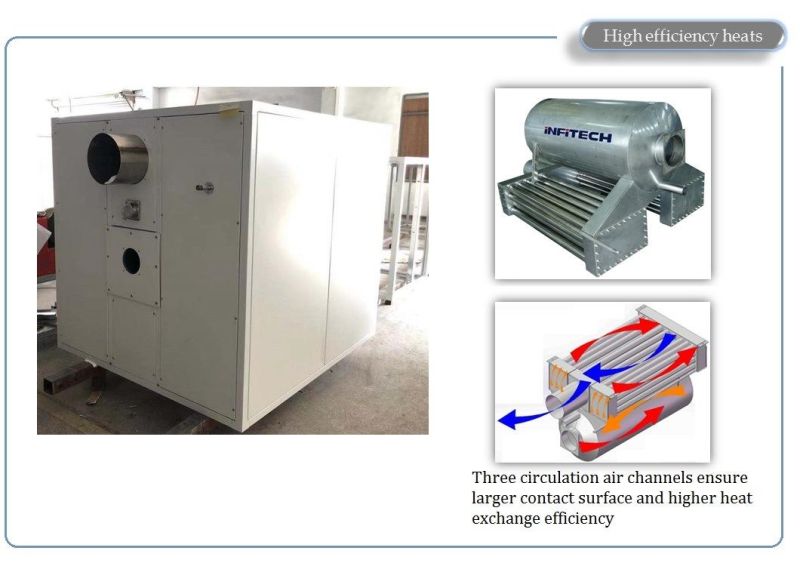

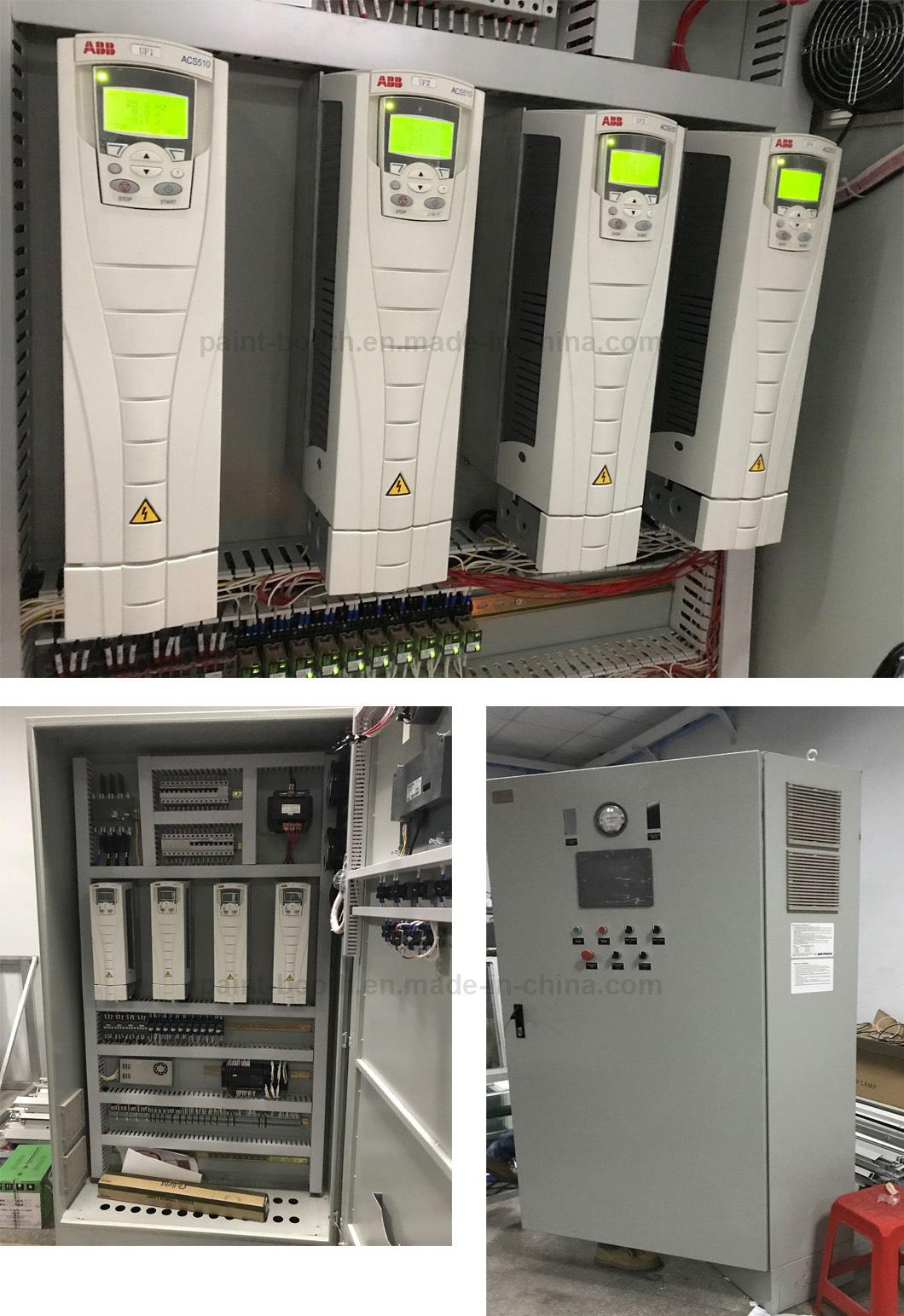

3. Details (key components)
Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles

Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles


Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles
Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles
Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles
Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles

4. Packaging & Loading
Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles

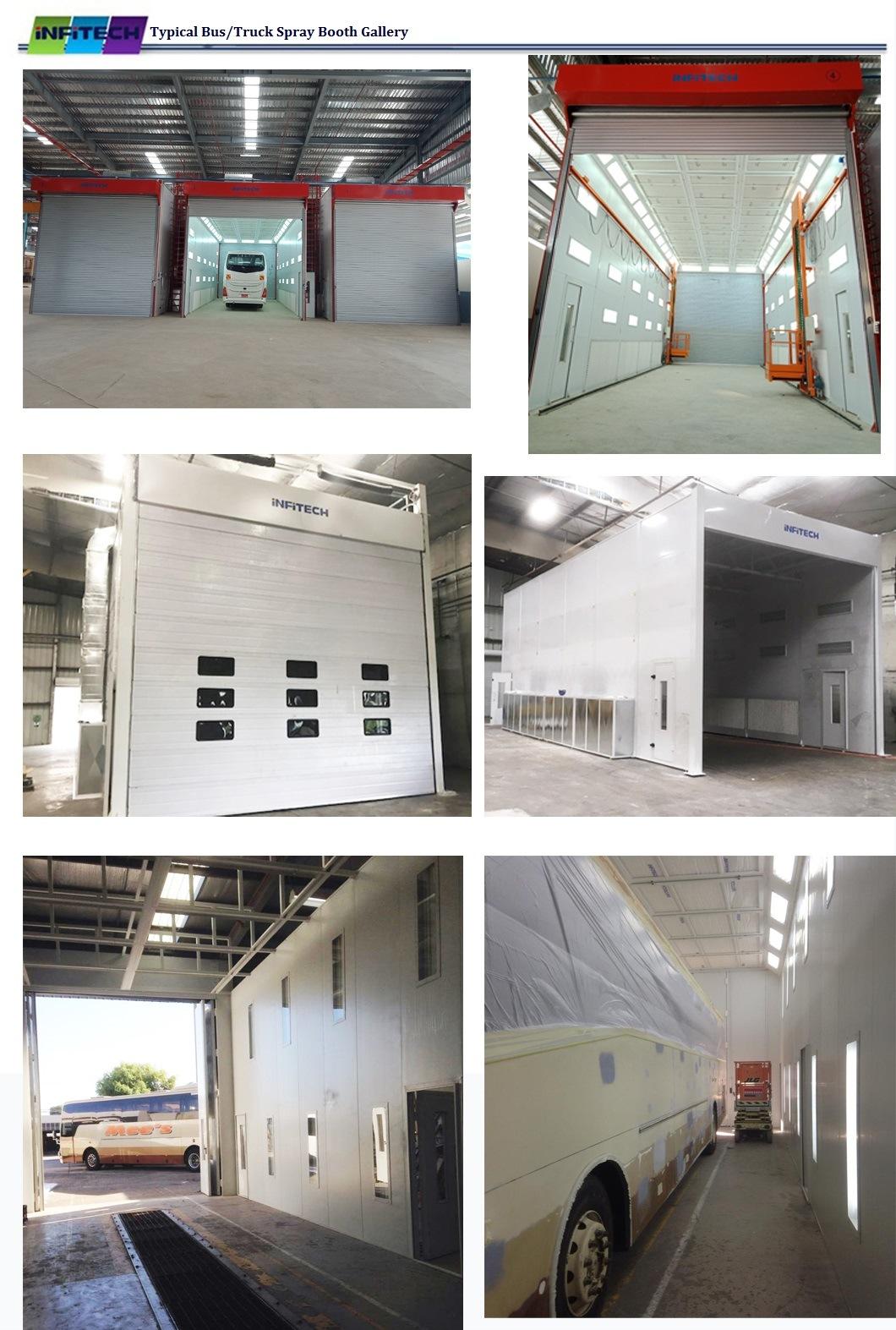

5. Typical projects display
Dry Filter Side Downdraft Spray Baking Cabin / Paint Baking Cabin for Large Vehicles

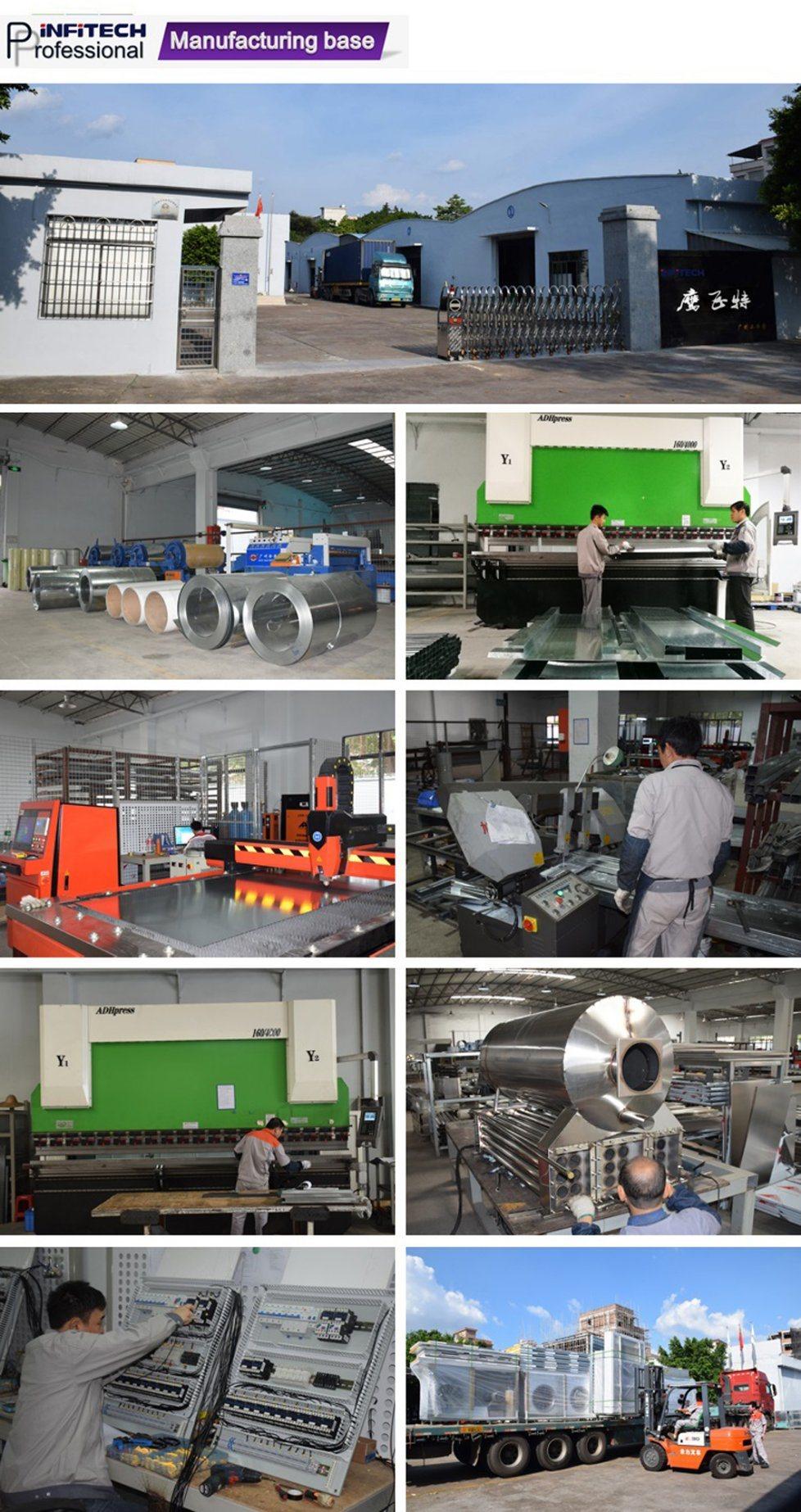

6. About INFITECH
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
