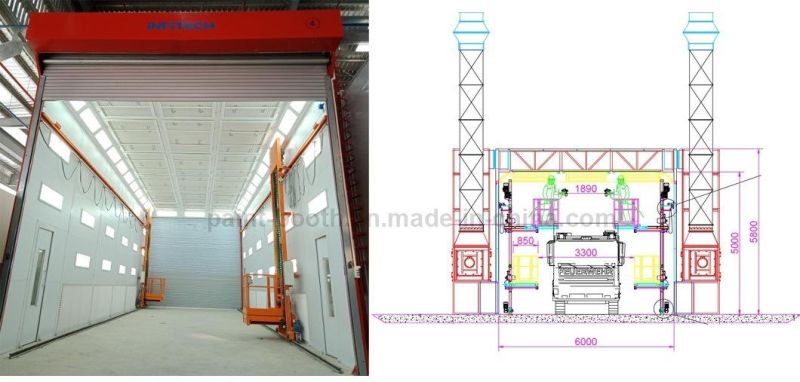

Australian / New Zealand Standard Spray Painting Room / Paint Baking Room with 3 Axis Integrated Painters Lift
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Lateral Undershot-type
- Paint Mist Treatment：Dry-type
Base Info
- Model NO.：IT-L15-W6
- Condition：New
- Fan：Direct-Drive, 2X11kw
- Air Volume：70,000m3,H
- Heat Exchanger：232kw X 2
- Burner：Riello Gas Burner RS5d X 2
- Walls：60mm Thick Rock Wool Panels
- Plenum：800mm High
- Filters：High Efficiency Filters
- Warranty：2 Years
- Empty Loaded Air Speed：0.22m,S
- Noise：<78dB
- Touch Screen Control：Yes
- Lighting：LED Lamp
- Illumination：>1,000lux
- Max. Working Temp.：80 Degree Celsius
- Rated Power：50kw
- Transport Package：Polyfoam and Metal Frame
- Specification：15000x6000x5000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
High Performance CE Certified Spray BoothITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009

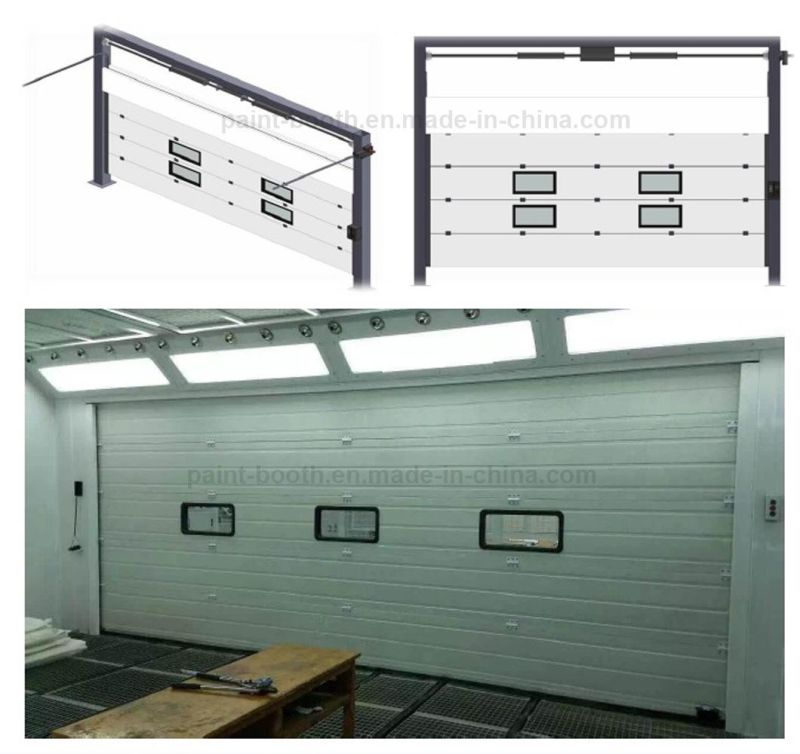

BS EN 60204: 2006+A1:2009 Internal dimensions 15000 X 6000 X 5000mm (L X W X H) External dimensions 15160 X 9370 X 6500mm (L X W X H) Plenum 800mm high Extraction Side downdraft, through two rows of exhaust plenum chambers Entrance door 1 set, 5000 X 4500mm (W X H), electric door Personnel door 4 sets, 800 X 2300mm (W X H) Walls 60mm rock wool panels Ceiling lighting (LED) 12 sets, each 4 X18W, 864W total Sidewall lighting (LED) 24 sets, each 4 X 18W, 1,728W total Brightness >1,000LUX Filters Pre-filter, high efficiency filter, floor-level filter, exhaust filter Air intake Direct-type turbine fan, 2x11KW WEG motor Air exhaust Direct-type turbine fan, 2x11KW WEG motor Air volume 70,000m3/h Empty loaded air speed +/-0.22m/s Maximum working temperature 80ºC Heat exchanger power 2x232KW Burner (Max. calorific value) 2 x RIELLO gas burner RS5D (two stage) Controls Touch screen control panel
Independent control for each working zone Rated power 50KW

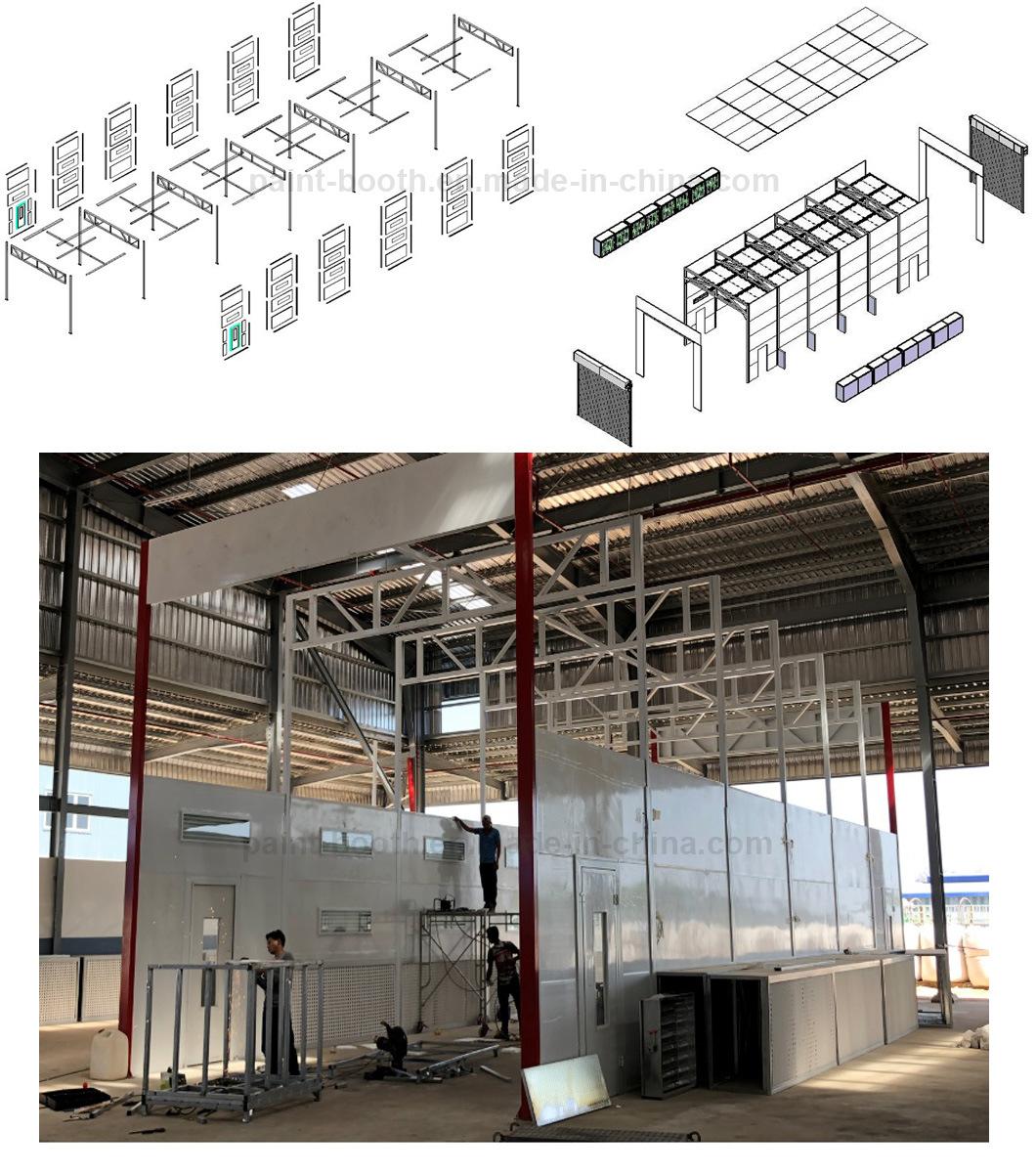

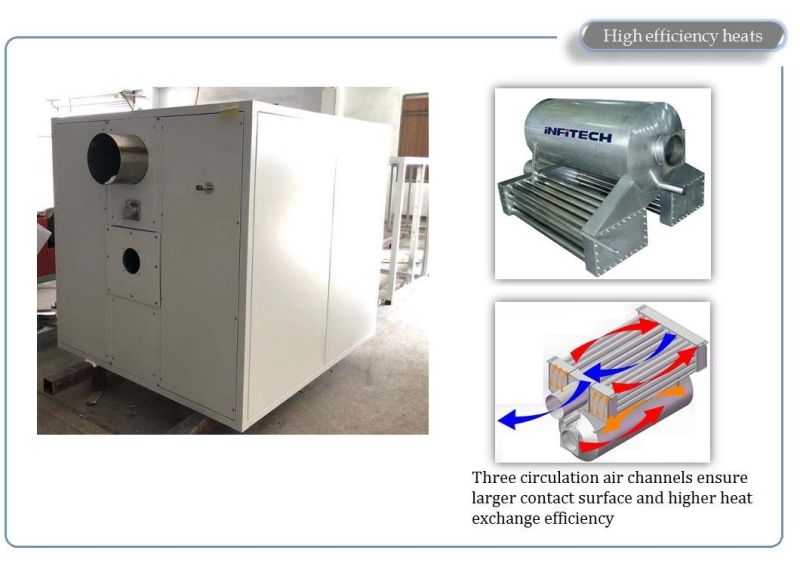

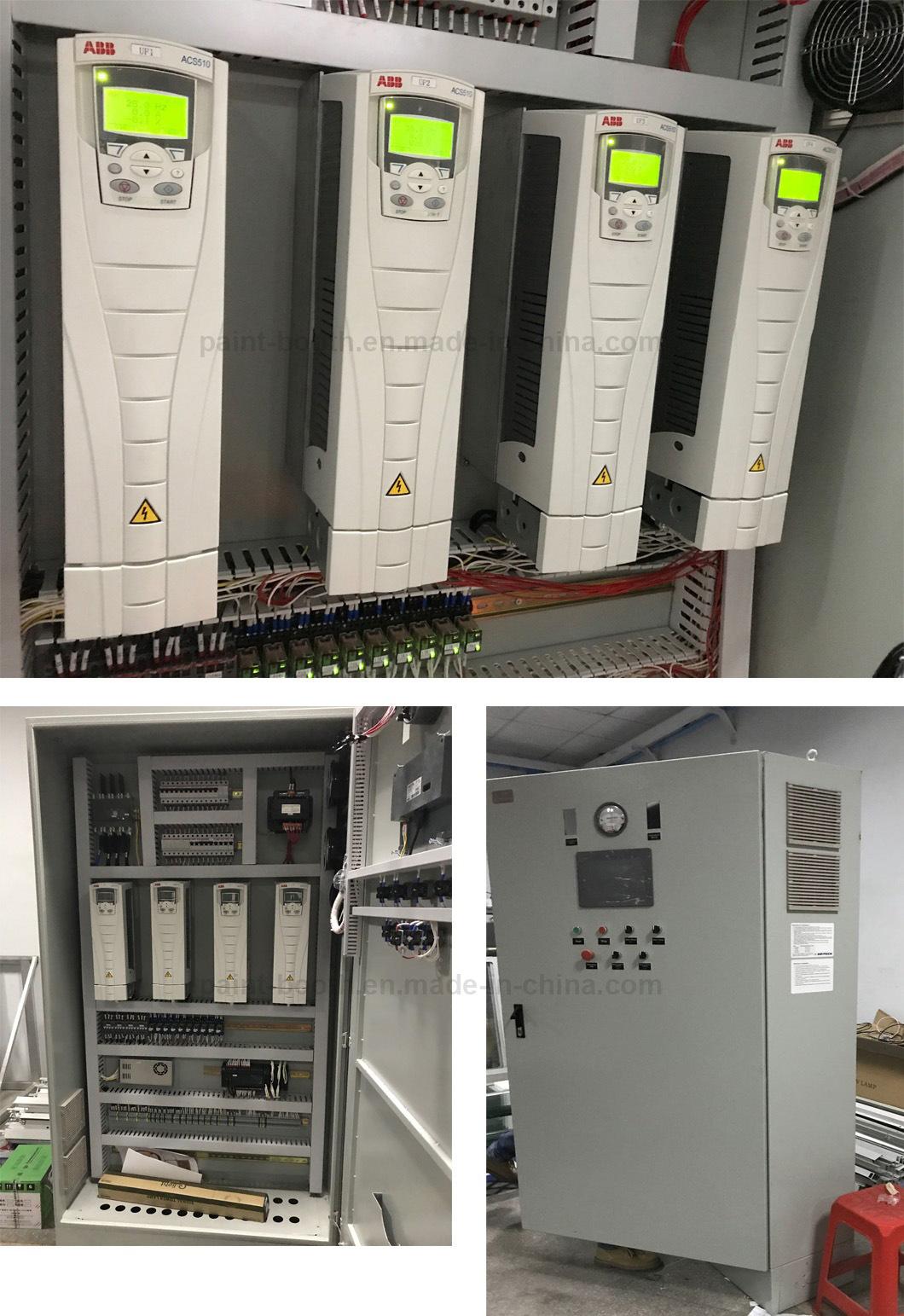

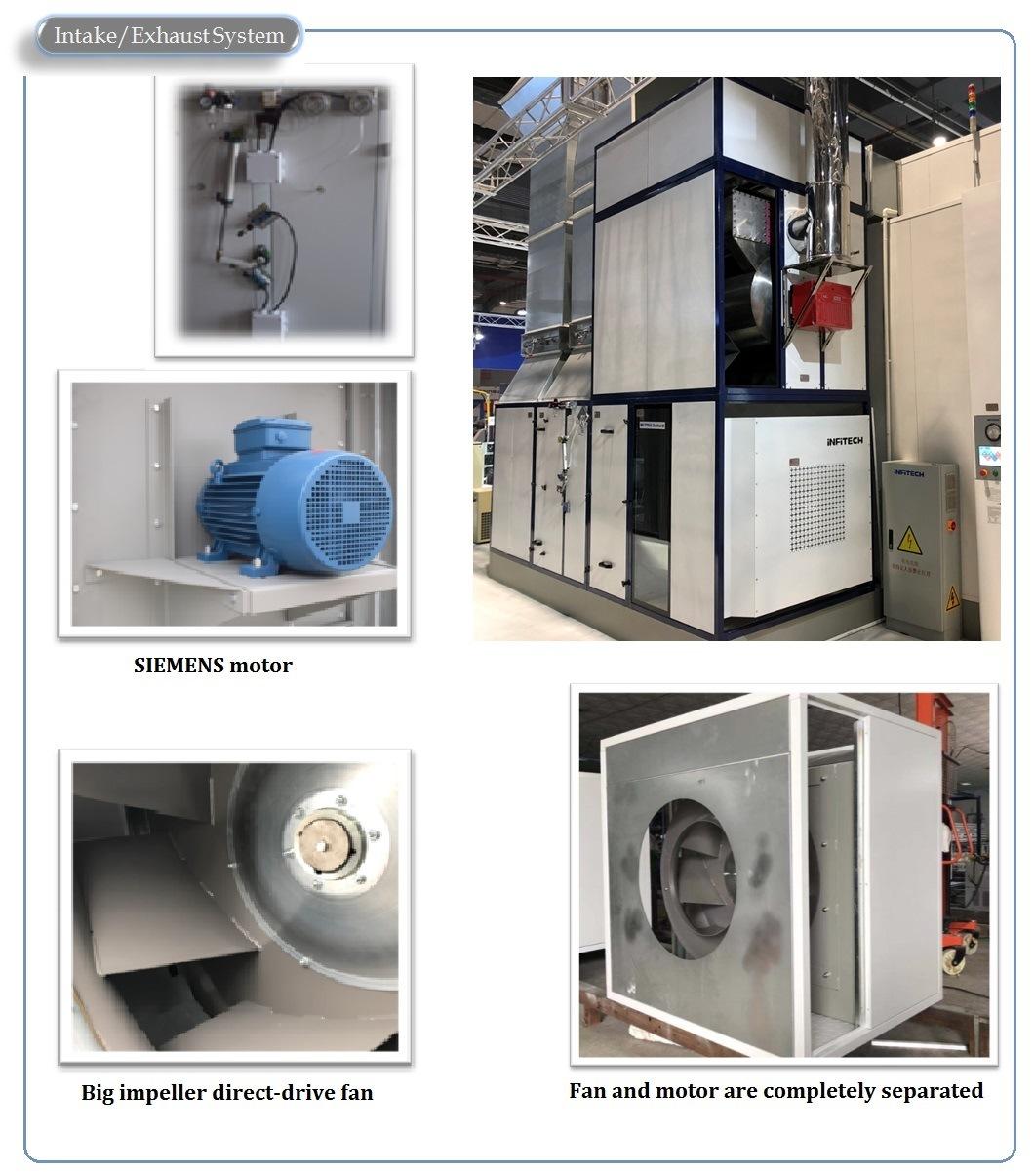

3. Details (key components)
4. Packaging & Loading

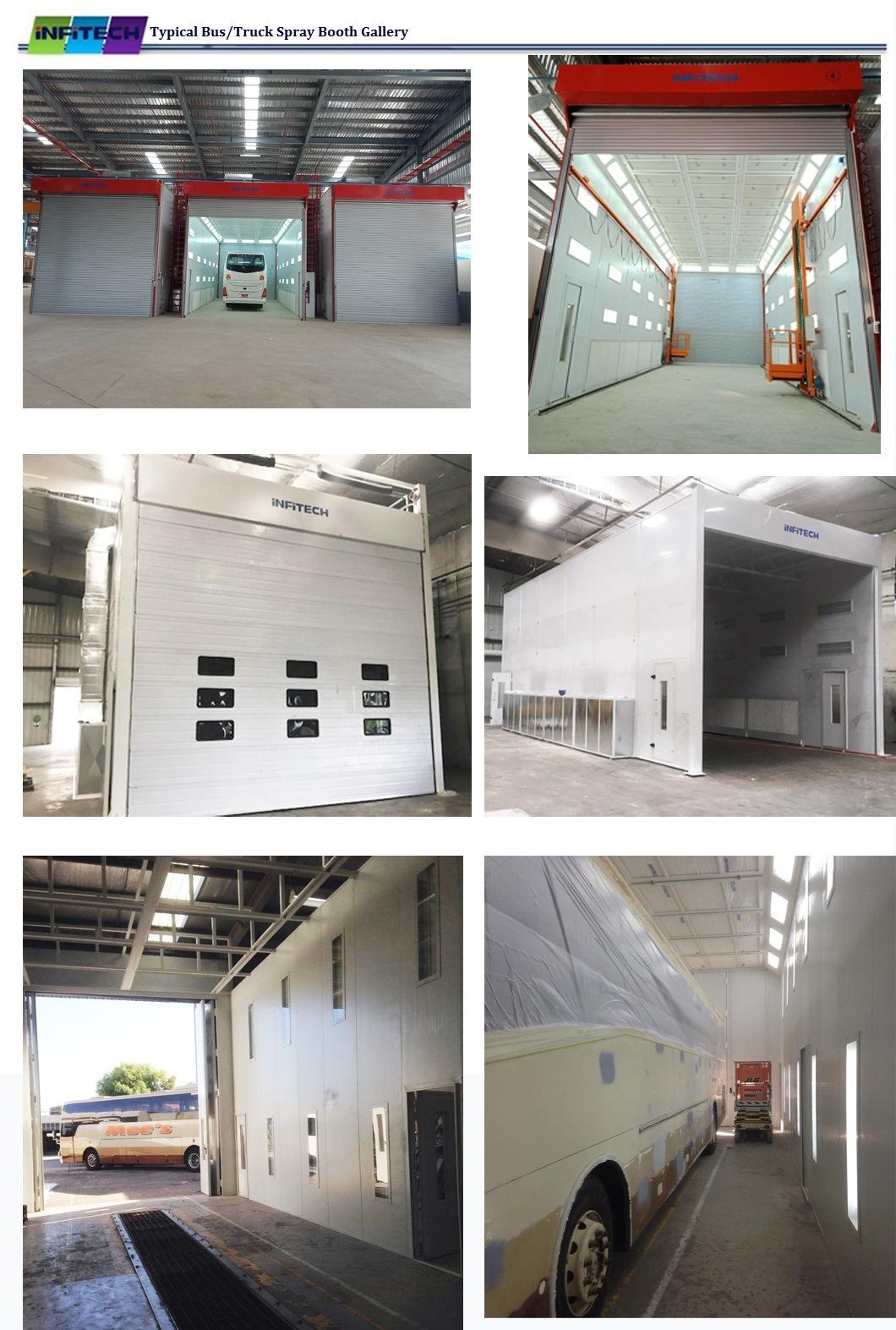

5. Typical projects display

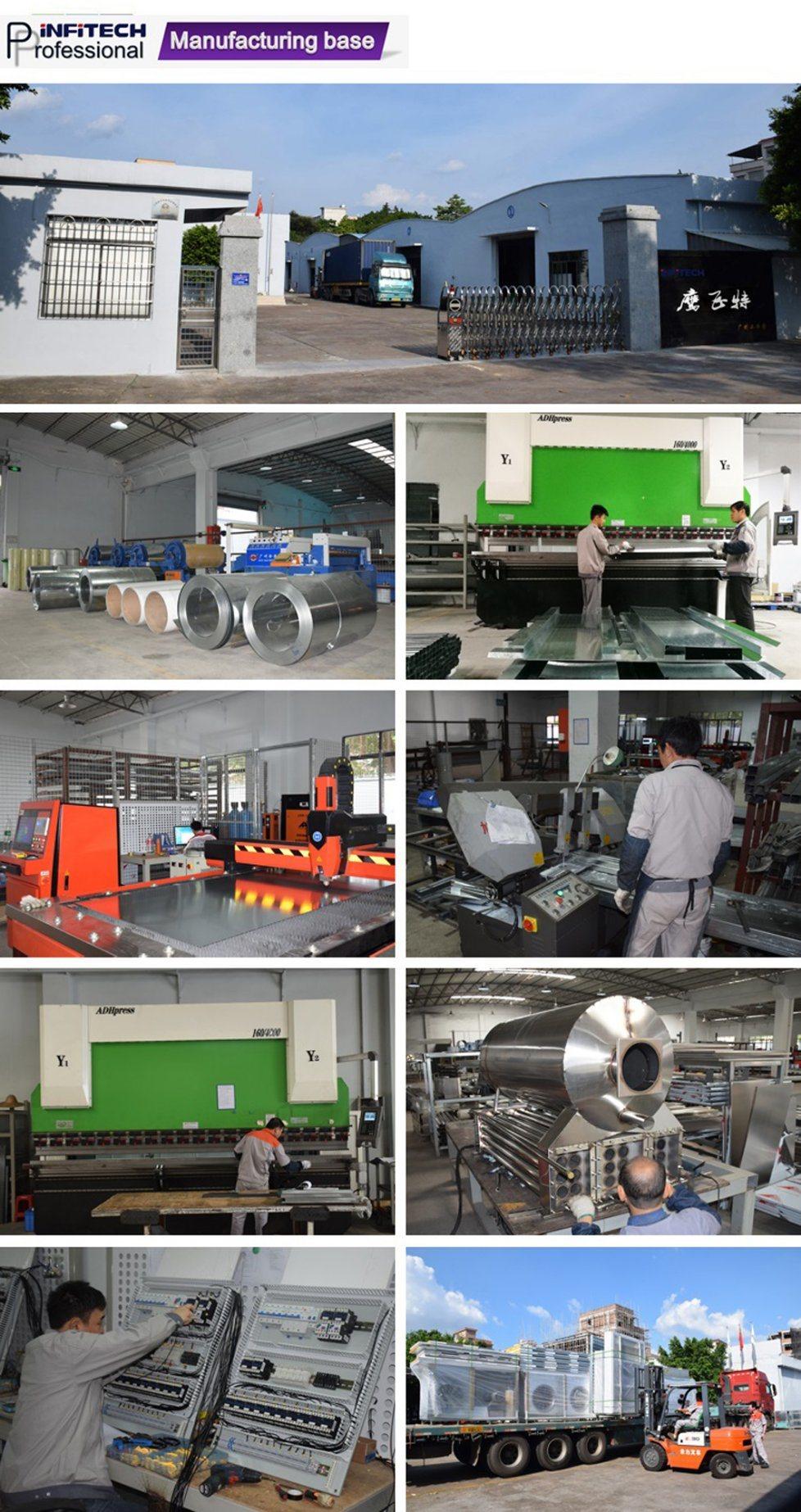

6. About INFITECH
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
Welcome to send your inquiries! :-)
