• Model NO.：Launch CRP429C
• Color：Red & Black
• Material：Plastic
• Screen Size：5" IPS Touch Screen
• Special Features：Bluetooth & WiFi
• Update：1 Year′s Free Update
• Warranty：1 Year′s Free Warranty
• Voltage：9~18V
• Current：4000mA
• Transport Package：Carton
• Specification：1.18kg
• Trademark：Launch
• Origin：China
• HS Code：9031809090
• Production Capacity：2631

Basic Info.

Model NO. Launch CRP429C Color Red & Black Material Plastic Screen Size 5" IPS Touch Screen Special Features Bluetooth & WiFi Update 1 Year′s Free Update Warranty 1 Year′s Free Warranty Voltage 9~18V Current 4000mA Transport Package Carton Specification 1.18kg Trademark Launch Origin China HS Code 9031809090 Production Capacity 2631

Product Description

Launch CRP429C Bluetooth WiFi Auto Scanner OBD II PK CRP123

Why choose our products ?
1. All products in our company are 100% original LAUNCH products.
2. The lowest price in whole Made-in-China.
3.Overseas warehouse: Fast shipping & Seller paying customs tax for EU countries.
4.Countries with local free return : United States, Canada, Australia, United Kingdom, France, Spain, Germany, Russia, Brazil, Israel, South Korea, Saudi Arabia, UAE, Poland, Netherlands, Italy. ( Note: If products are blamed of any quality problem, free return service to local country will be open. )

Product Introduction :
Launch CRP429C is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCH's advanced diagnostic technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Launch CRP429C supports all 10 models of OBDII test for a complete diagnosis. CRP429C also supports the system diagnosis of ABS, SRS, ENG and AT system, and supports 11 reset functions.
SKU:SC54-H

Features:
1. Reset Functions:
   Oil Light Reset, TPMS Reset, Brake Pad Reset, SAS Reset, DPF Reset, etc.
2. Special Functions:
    Anti-theft Matching, Gear Learning, Battery Maintenance, ABS Bleeding, etc.
3. Four System Diagnosis:
    Engine System, Transmission System, ABS System, SRS System.
4. Modes of OBDII test:
    Reading and Clearing DTCs, Data Stream, I/M Readiness, etc.
5. Multiple Car Models:
    Covering over 50 prevailing models from Asia, America and Europe.
6. Support 7 kinds of languages:
    English, French, Spanish, Russian, Portuguese, German, Japanese, etc.
7. 5" IPS Touch & Keypad input, meets majority of users needs.
8. One-click update online via Wi-Fi, One years free update.



CRP429C has the following FUNCTIONS and  ADVANTAGES :

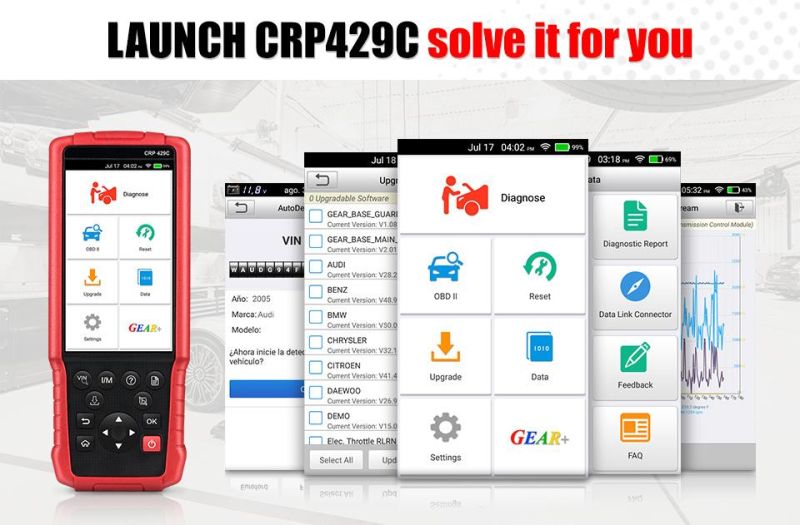

• Smart(Auto-Detect) Diagnosis: Once CRP429C and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).

• Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (It supports 3 display modes: Value, Graph and Merged ).

• OBDII/EOBD Diagnosis: 10 modes of OBD II test are supported, including EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing etc.

• Remote Diagnosis (optional): This option aims to help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster.

• Reset: Frequently used maintenance and reset items including Oil Lamp Reset, Brake Pad Reset, TPMS Reset, Battery Matching, Injector Programming, Throttle Adaptation, DPF Reset, Gear Learning, Steering Angle Reset, ABS Brake Bleeding and Anti-Theft Matching can be done.

• One-click Update: Let you update your diagnostic software and APK online.

• Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.

• Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and trouble shooting.

• DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from abundant DTC database.

• Displays battery real-time voltage once properly connected to the vehicle.

• Features screenshot capture. Screenshots and reports sharing are supported.

• Touch & Keypad input are supported. Quick Dial buttons enable you to easily access corresponding functions.

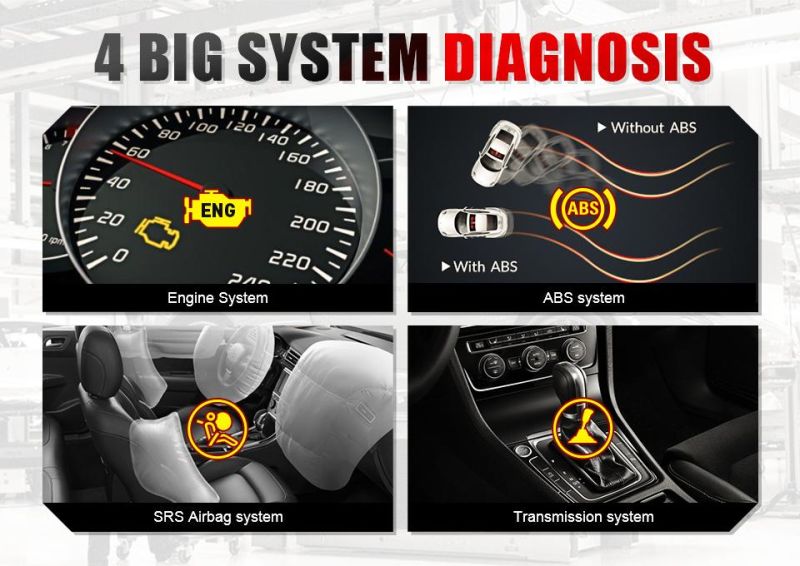

CRP429C supports 4 big systems diagnoses :
Engine System: The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
Transmission System: It makes great sense in the safe driving when your car is slipping or difficult to shift. This diagnostic scanner can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.
SRS Airbag System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

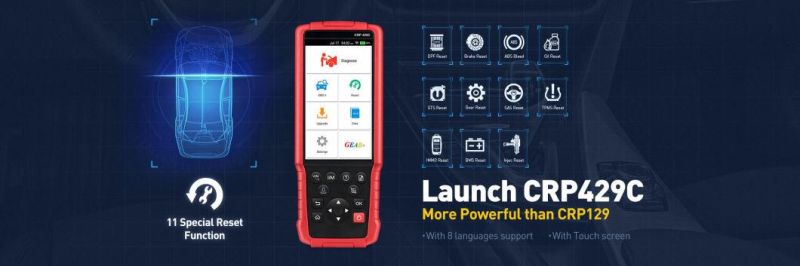

CRP429C supports 11 Special Reset Service Functions :

1. Oil Reset: allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB Reset: is important in the maintenance of electronic braking system's safety and efficiency.

3. BMS Reset: allows the scan tool to evaluate battery charge state, monitor close-circuit current, register battery replacement, and activate the rest state of the vehicle.

4. DPF Reset: specially for DPF system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS Reset: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS Reset: makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO reset: it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

9. Gear Learning:The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

10. Injector Coding: Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off.

11. Throttle reset: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

( Note : These special functions are NOT for all car models, if you are confused, Please send your car brand, model and release year to seller to check it for you. )

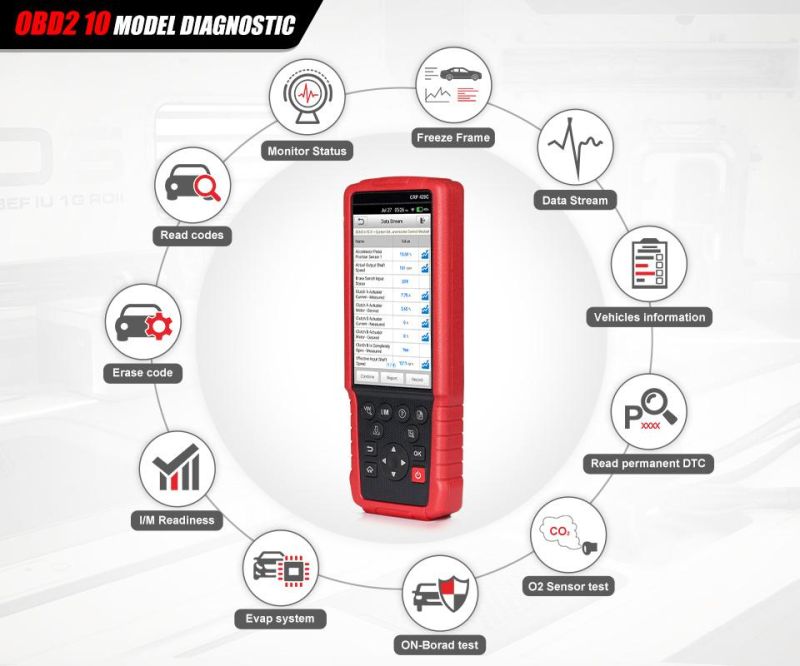

CRP429C supports full 10 models diagnostic functions for engine :

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).

Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

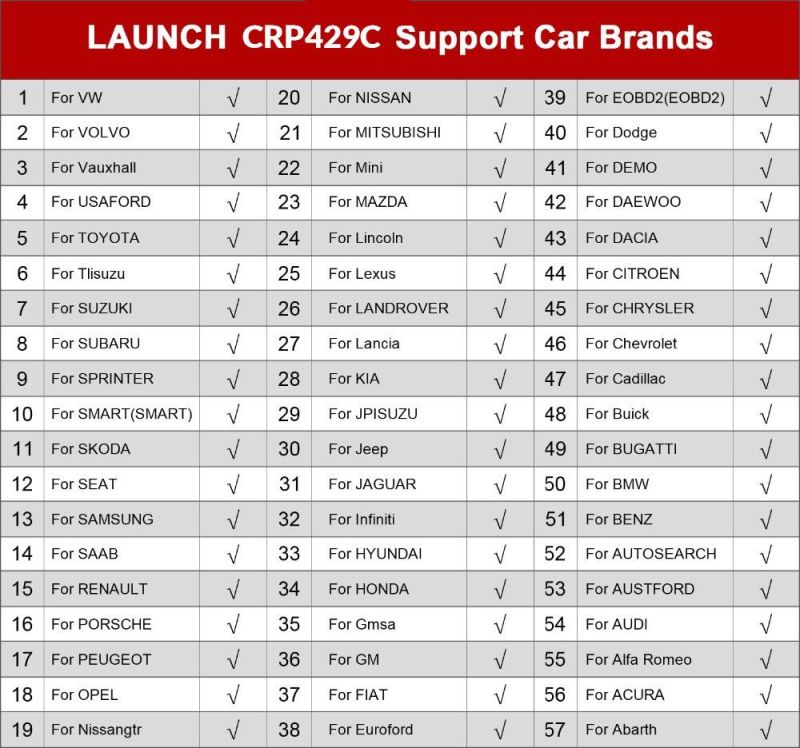

Vehicle Coverage:Support Car Models for OBDII diagnostic functions on Most of OBDII Vehicles


(Note: CRP429C only Supports 12V Gasoline/petrol cars, Does not support 24V Diesel vechicles or Truck )

CRP429C supports multiple languages :
Including English , French , Japanese Spanish , German, Italian ,Portugues, Russian, etc.
The device default language is English , you could switch the supported language freely by choose setting menu.

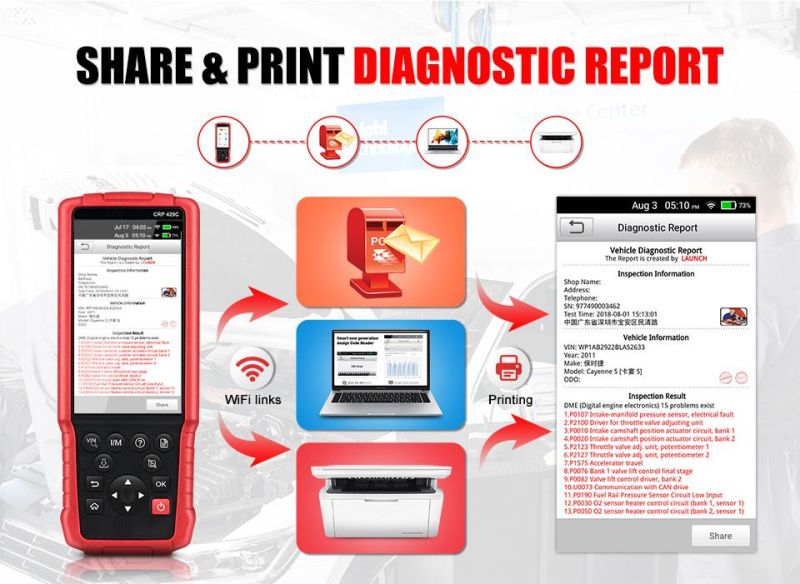

CRP429C could Share & Print diagnostic report :
You could share diagnostic data via Email , and print car diagnostic report via printer.

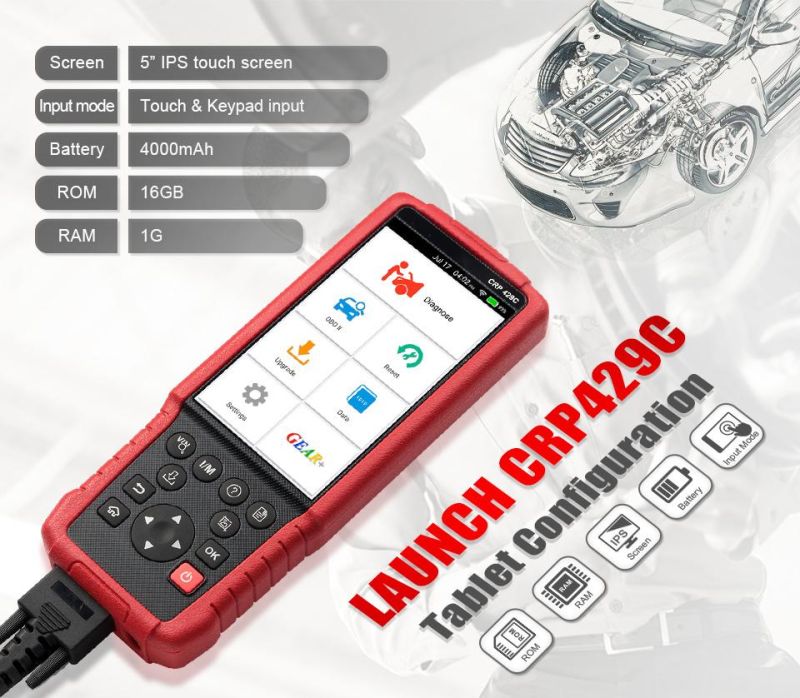

Specifications :

Item Type	car code reader	Voltage	9~18V
Special Features	Bluetooth & WiFi	Current	4000mA
Color	red & black	ROM	16GB
Material	plastic	RAM	1GB
Input Mode	touch & keypad input	Item weight	0.15kg
Update	1 year's free update	Screen Size	5" IPS touch screen
Warranty	1 year's free warranty	Certifications	CE & FCC

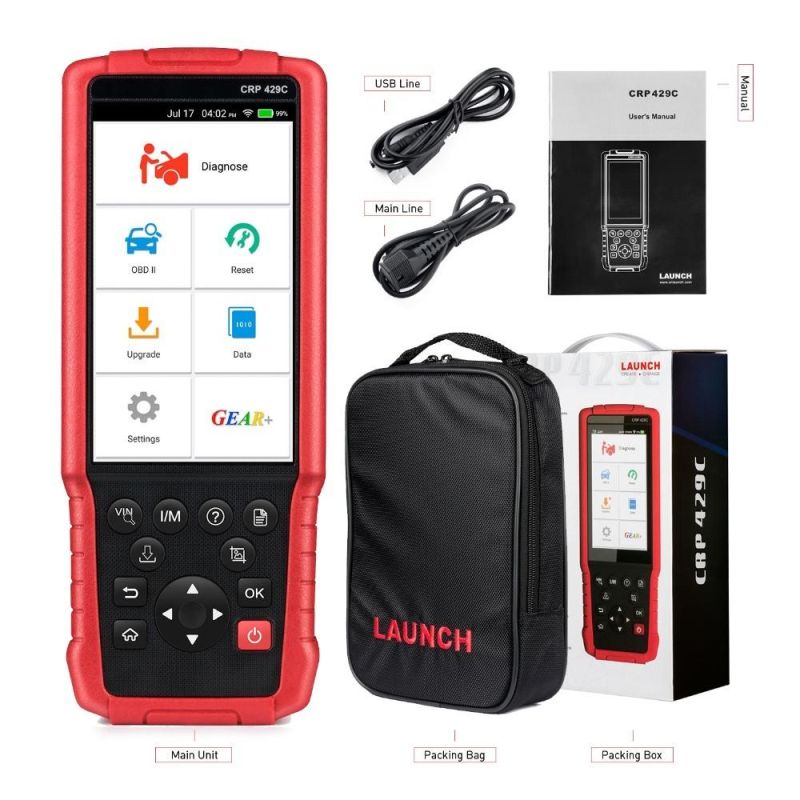

CRP429C Packing List :
Packing list supplied with CRP429C together
1. CRP429C handset
2. OBD II diagnostic cable
3. DC 5V charging cable
4. User manual
5. Padded carrying case

Attention pls:
*This one can't support Diesel vechicles.
*Can do most of OBDII gasoline cars,but can't support all OBDII cars.
*CRP429C can do MOST of the OBDII vehicles, but it CAN NOT do all models.
