Infitech European Standard High Efficiency Industrial Paint Baking Booth

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Airflow Direction：Cross-flow Type
  • Heating Mode：Diesel

Base Info

  • Model NO.：IT-L6B
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Illumination：>1,000lux
  • Fan：Direct-Drive
  • Motor：5.5kw
  • Air Volume：18,000m3,H
  • Empty Loaded Air Speed：0.45m,S
  • Noise：<80dB
  • Warranty：2 Years
  • Burner：Riello Diesel Burner Rg5d
  • Heat Exchanger：232kw
  • Filter：High Efficiency Filter
  • Transport Package：Polyfoam and Metal Frame
  • Specification：6000*4000*2650mm(L*W*H)
  • Trademark：INFITECH
  • Origin：China
  • HS Code：8419899090
  • Production Capacity：900 Sets,Year

Description

Spray Booth - Cross draft airflowITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions6000 X 4000 X 2650mm (L X W X H)External dimensions8780 X 4110 X 3350mm (L X W X H)Entrance door1 set, 3400 X 2150 mm (W X H)Ceiling lighting (LED)8 sets, each 4 X18W, 576W totalSidewall lighting (LED)6 sets, each 2 X 8W, 96W totalBrightness>1,000LUXFiltersPre-filter, high efficiency filter, floor-level filter, exhaust filterAir intakeDirect-type turbine fan, 5.5KW CE motorAir exhaustDirect-type turbine fan, 5.5KW CE motorAir volume18,000m3/hEmpty loaded air speed+/-0.45m/sAir exchange times4 times/minMaximum working temperature80ºCHeat exchanger power232KWBurner (Max. calorific value)RIELLO gas burner RS5D (two stage)ControlsCE standard control boxRated power13KW Paint Mixing RoomITEMSSPECIFICATIONSInternal dimensions3110 X 4000 X 2800mm (L X W X H)External dimensions3220 X 4110 X 2850mm (L X W X H)Entrance door1 set, 800 X 2000 mm (W X H)Ceiling lighting (LED)3 sets, each 4 X18W, 216W totalBrightness>800LUXFiltersPre-filter, exhaust filterAir intakeNatural air intakeAir exhaustDirect-type turbine fan,1.5KW, CE motorAir volume3,500m3/hControlsCE standard control boxRated power2KW
3) Packaging and Loading
Infitech European Standard High Efficiency Industrial Paint Baking Booth

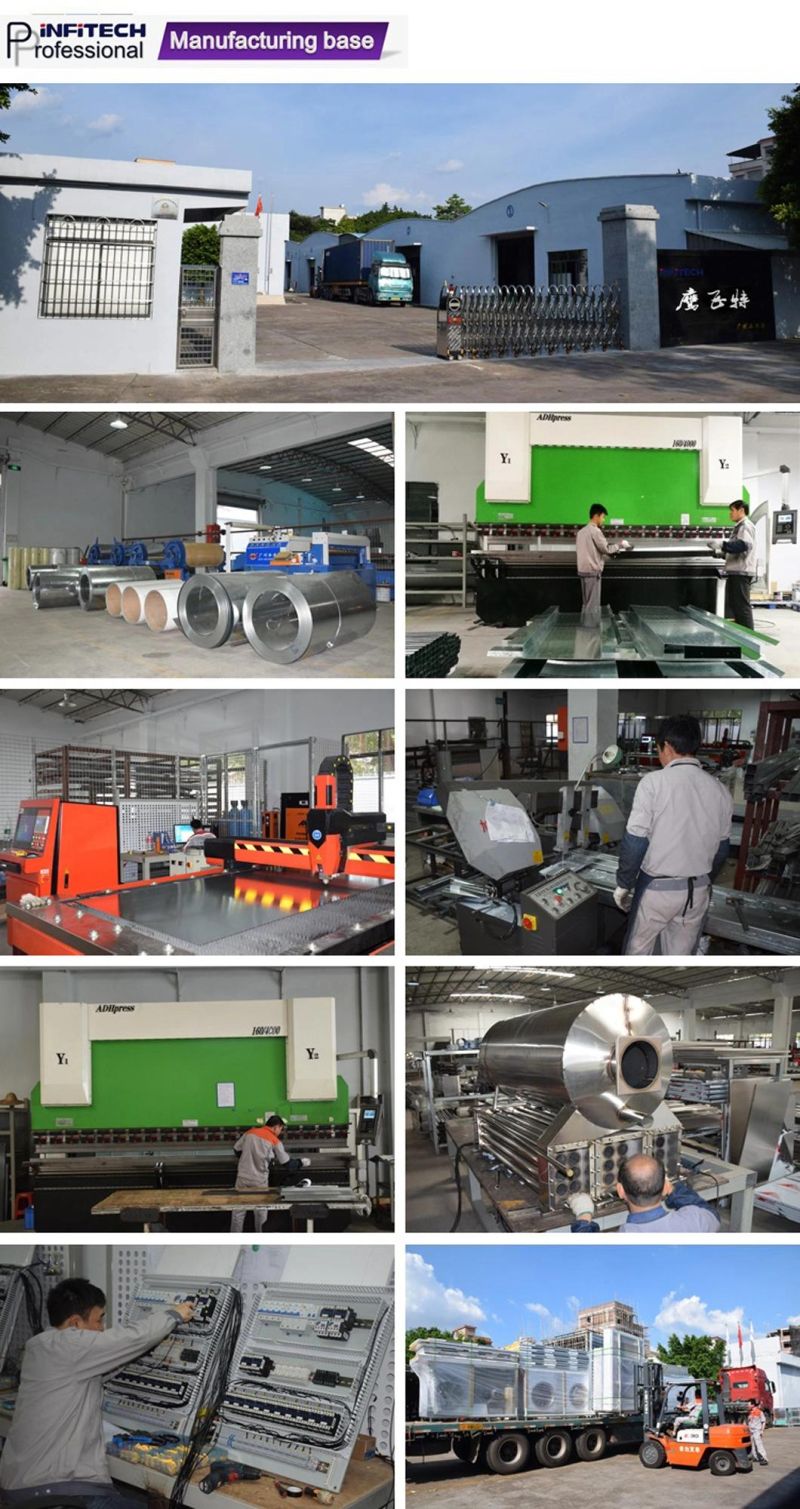

3) Company information

Infitech European Standard High Efficiency Industrial Paint Baking Booth

Infitech European Standard High Efficiency Industrial Paint Baking Booth

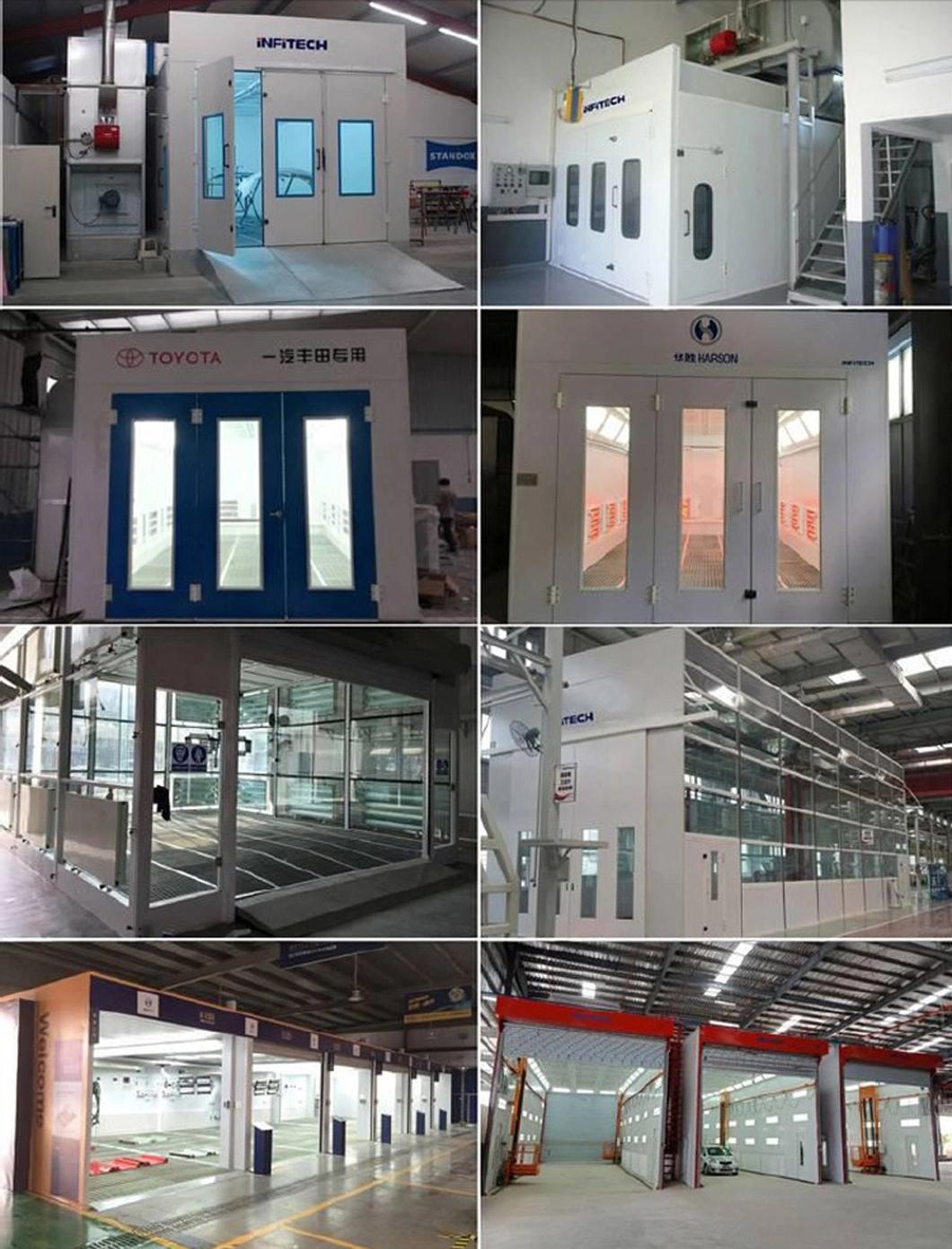

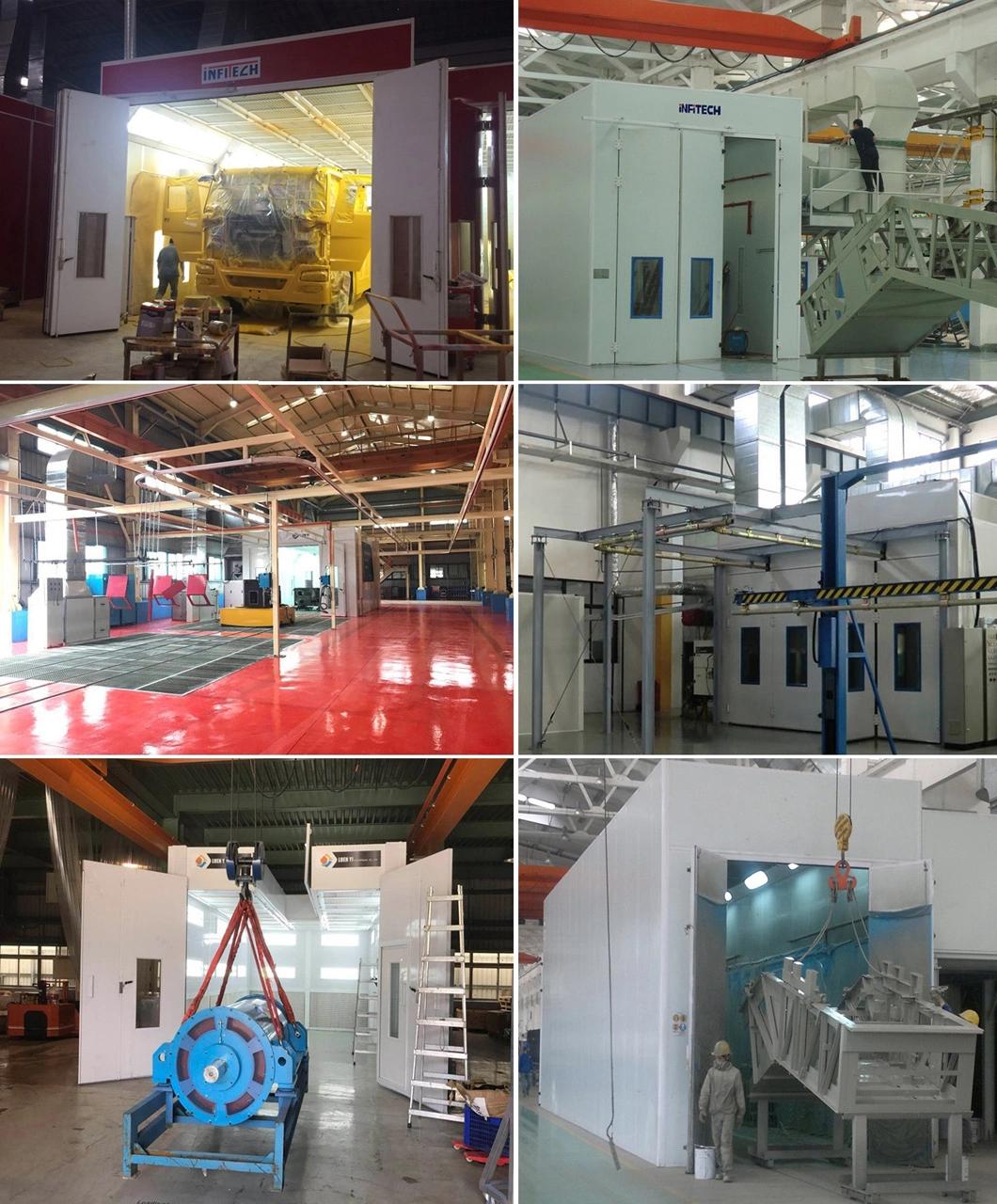

4) Spray Booth Gallery

Infitech European Standard High Efficiency Industrial Paint Baking Booth
Infitech European Standard High Efficiency Industrial Paint Baking Booth
