Infitech Auto Painting Equipment Sanding Bay, Primer Bay, Primer Paint Booth
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Semi Downdraft
- Paint Mist Treatment：Dry-type
Base Info
- Model NO.：IT-PREP-6
- Condition：New
- Usage：Preparation, Sanding, Primer, Masking
- Walls：50mm Rock Wool Panels
- Fans：Centrifugal Direct Drive Fan
- Air Volume：18,000m3,H
- Motor：5.5kw, Siemens Motor
- No-Load Air Speed：0.18m,S
- Noise：<78dB
- Electric Control & Tool Cabinets：Yes
- Filtration：High Efficiency Filter
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：7000*4000*2800mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets , Year
Description
INFITECH auto painting equipment sanding bay, primer bay, primer paint booth Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 7000 x 4000 x 2800mm (L X W X H) External dimensions 8520 x 4000 x 3260mm (L X W X H) Plenum height 400mm Entry/Exit Electric soft curtain door, 3800x2650mm(BxH) Divider door Electric soft curtain door, 6000x2800mm(BxH) Ceiling lighting 8 sets, each 4 X 18W, 576W total, LED lamp Brightness >900LUX Purification Pre-filter, ceiling filter, floor-level filter Air intake Direct-type turbine fan, 5.5KW, SIEMENS motor Air exhaust Direct-type turbine fan, 5.5KW, SIEMENS motor Air volume 18,000m3/h Empty loaded air speed +/-0.18m/s Controls CE standard control box Special items Electrical and tool cabinet Rated power 15KW
FeaturesThree axis infrared heating system
Packaging & Shipping

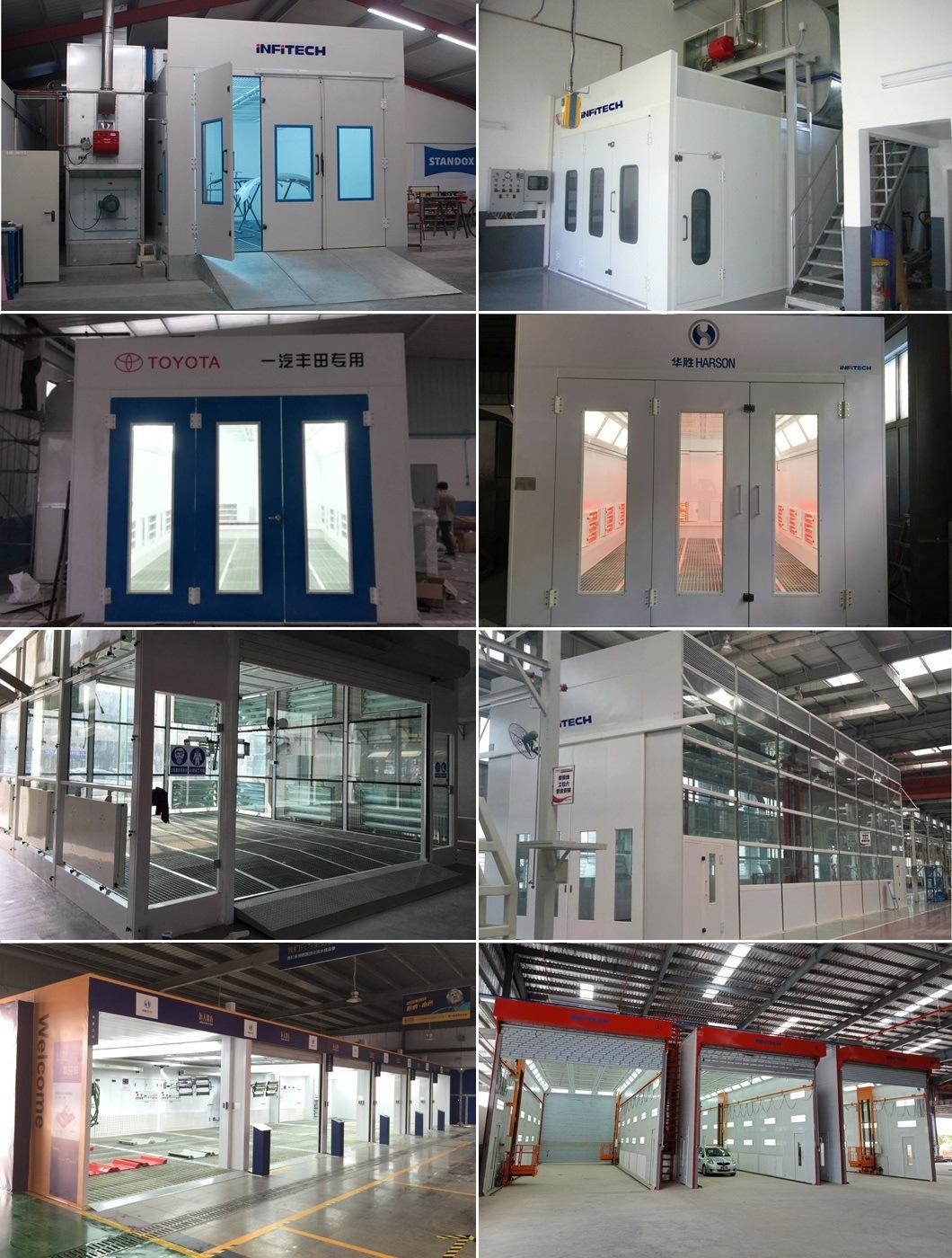

Engineering cases
Company introduction
INFITECH is professional manufacturer of CE standard spray booths. We provide complete spray workshop solution including design and layout, technical consultation, manufacturing, sales, installation and maintenance. And we pride ourselves in providing personalized and ideal paint workshop solution that best suit customers' requirements, helping improve workflow, and maximize profits for shop owners.
SEND INQUIRIES NOW. :-)
BS EN 60204: 2006 + A1: 2009
FeaturesThree axis infrared heating system
- Adopt high quality IRA infrared short-wave heating lamps (total power: 6X1KW) certified by international special light source lab.
- The system is mounted at the lead rails at the top of the booth, and it can move freely in any directions. The flexible swing arm allows the lamps to be in any position of the booth.
- The lamps are lifted by gas spring.
