• Model NO.：SJG
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Moral
• Design：Scissor
• Load capacity：2000kg
• Lifting height：3000m
• Platform size：5000*2500mm
• Warranty：12monthes
• Color：As customers′ request
• Drive mode：Hydraulic drive
• Motor power：5.5kw
• Voltage：AC 220V,380V 50Hz,60Hz
• Transport Package：Standard Export Packing
• Specification：6000(L)*3000(W)*1500(H)mm
• Trademark：MORAL
• Origin：Shandong, China(Mainland)
• HS Code：842890
• Production Capacity：500pieces,Month

Basic Info.

Model NO. SJG Shearing Lift Type Big Shear Type Condition New Brand Moral Design Scissor Load capacity 2000kg Lifting height 3000m Platform size 5000*2500mm Warranty 12monthes Color As customers′ request Drive mode Hydraulic drive Motor power 5.5kw Voltage AC 220V/380V 50Hz/60Hz Transport Package Standard Export Packing Specification 6000(L)*3000(W)*1500(H)mm Trademark MORAL Origin Shandong, China(Mainland) HS Code 842890 Production Capacity 500pieces/Month

Product Description

Garage Parking  Hydralic Car Lift Elevator with CE
ARAMETER


Model	SJG
Drive mode	Hydraulic
Platform  size	5500*2500mm/ customized according to customers' requirements
Loading capacity	Dynamic 5ton / customized according to customers' requirements
Motor power	5.5kw
Voltage	380v, 50hz, 3P * customized according to customers' requirements
Travle height	5000mm/ customized according to customer's requirements
Distance of two deck	The same with travel height/can be customized

1. Load weight: 3000kgs/customize
2. Table size: 5.5m x 2.5m/customize
3. Travel height: 5m/customize
4. Elevator controls system
5. Structure: high-strength Mn steel

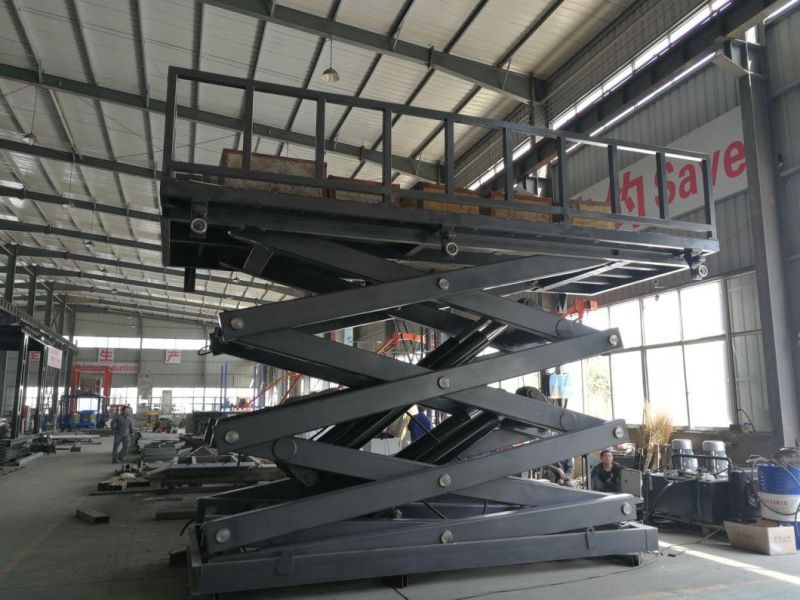

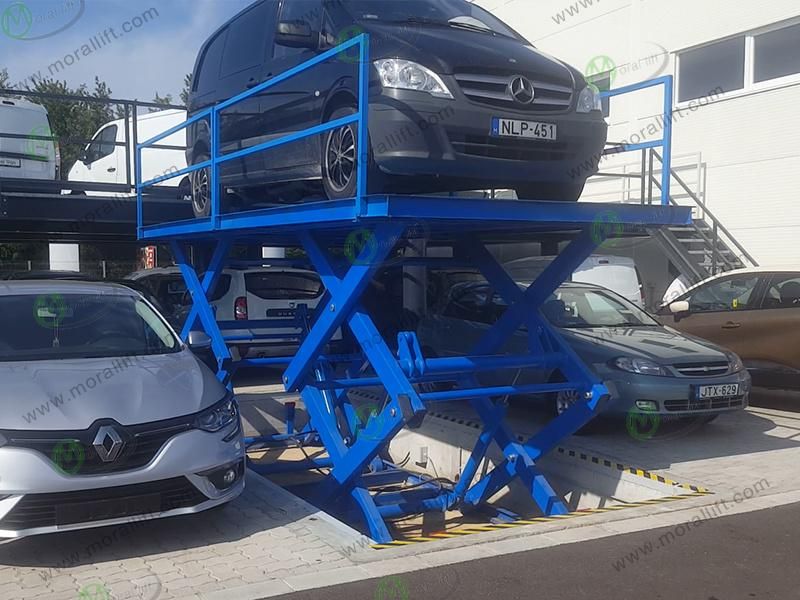

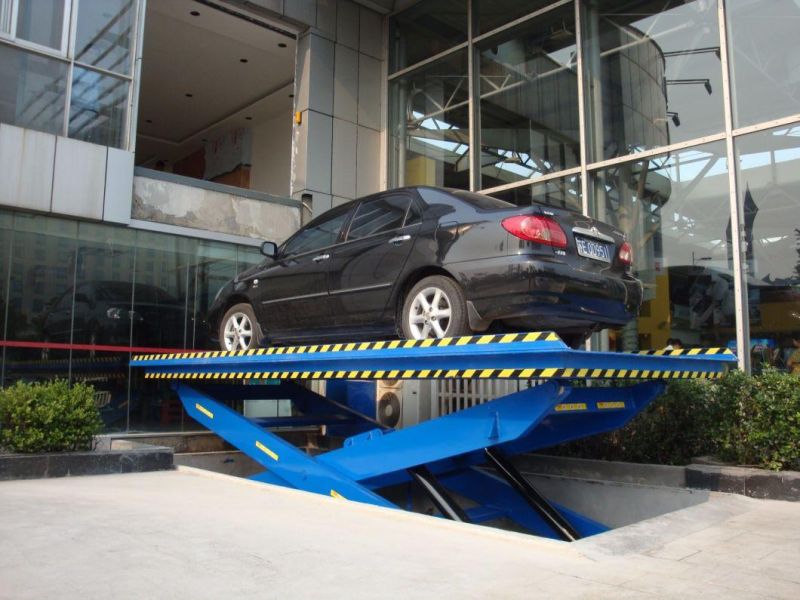

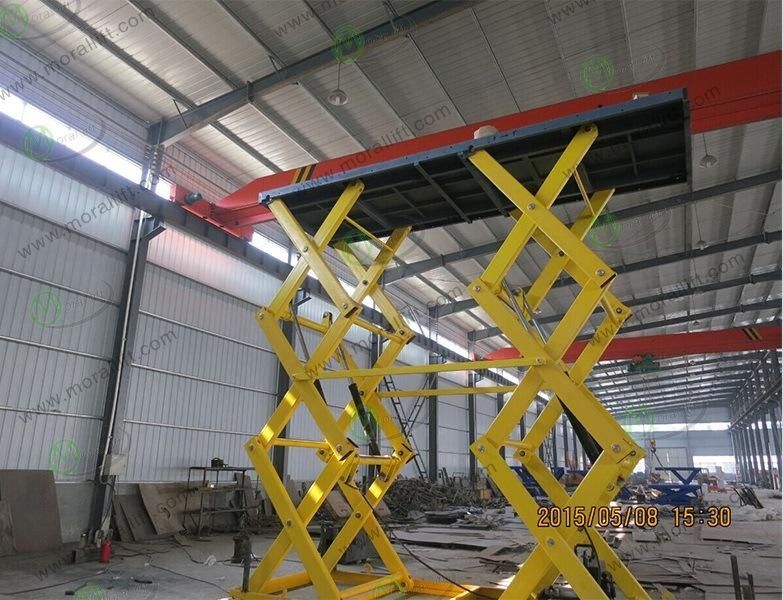

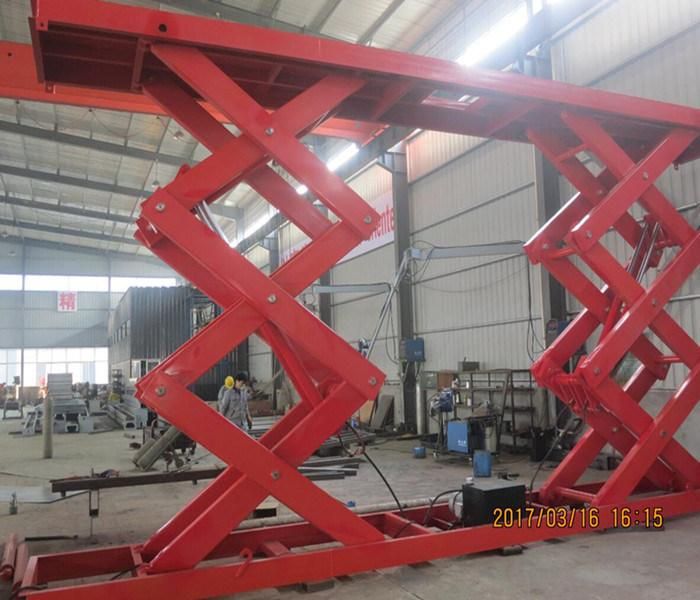

SHOW








SAFETY

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs;
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.

SPECIFICATIONS

1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. The handrail to guarantee safety of car
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensure lifts stop at accurate position.
5. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.


BUYING TIP

If you are interested in our products, please provide the following parameters:

1. Lifting height

2. Load capacity

3. Platform size

The best price will be provided once the above confirmed.
