Ce Certified Rear Extraction Furniture Spray Paint Cabins

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Heating Mode：Diesel
  • Paint Mist Treatment：Dry-type

Base Info

  • Model NO.：IT-RSD-501
  • Condition：New
  • Walls：50mm Rock Wool Panels
  • Lights：LED Lamp
  • Illumination：>1,000lux
  • Noise：<78dB
  • Warranty：2 Years
  • Voltage：380V, 50Hz, 3pH
  • Rated Power：15kw
  • Empty Loaded Air Speed：0.18m,S
  • Plenum：400mm High
  • Fans：Direct-Drive Fans, 5.5kw
  • Air Volume：18,000m3,H
  • Heat Exchanger：158kw
  • Burner：Riello Diesel Burner G20
  • Transport Package：Polyfoam and Metal Frame
  • Specification：6900 x 4000 x 2800mm
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：900 Sets,Year

Description

CE Certified Spray BoothITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions6900 X 4000 X 2800mm (L X W X H)External dimensions9080 X 4110 X 3260mm(L X W X H)AirflowRear semi downdraftPlenum400mm highExtractionThrough exhaust plenum chambers at the backEntrance door1 set, 1600X2700mm (W X H)Walls50mm thick rock wool panelsCeiling lighting (LED)8 sets, each 4 X 18W, 576W totalSidewall lighting (LED)6 sets, each 2 X 18W, 216W totalBrightness>1,000LUXFiltersPre-filter, high efficiency filter, filter at exhaust plenum chambers, exhaust filterAir intakeDirect-type turbine fan, 5.5KW SIEMENS motorAir exhaustDirect-type turbine fan, 5.5KW SIEMENS motorAir volume18,000m3/hEmpty loaded air speed+/-0.18m/sAir exchange times4 times/minMaximum working temperature80ºCHeat exchanger power158KWBurnerRIELLO diesel burner G20ControlsCE standard control boxRated power15KW

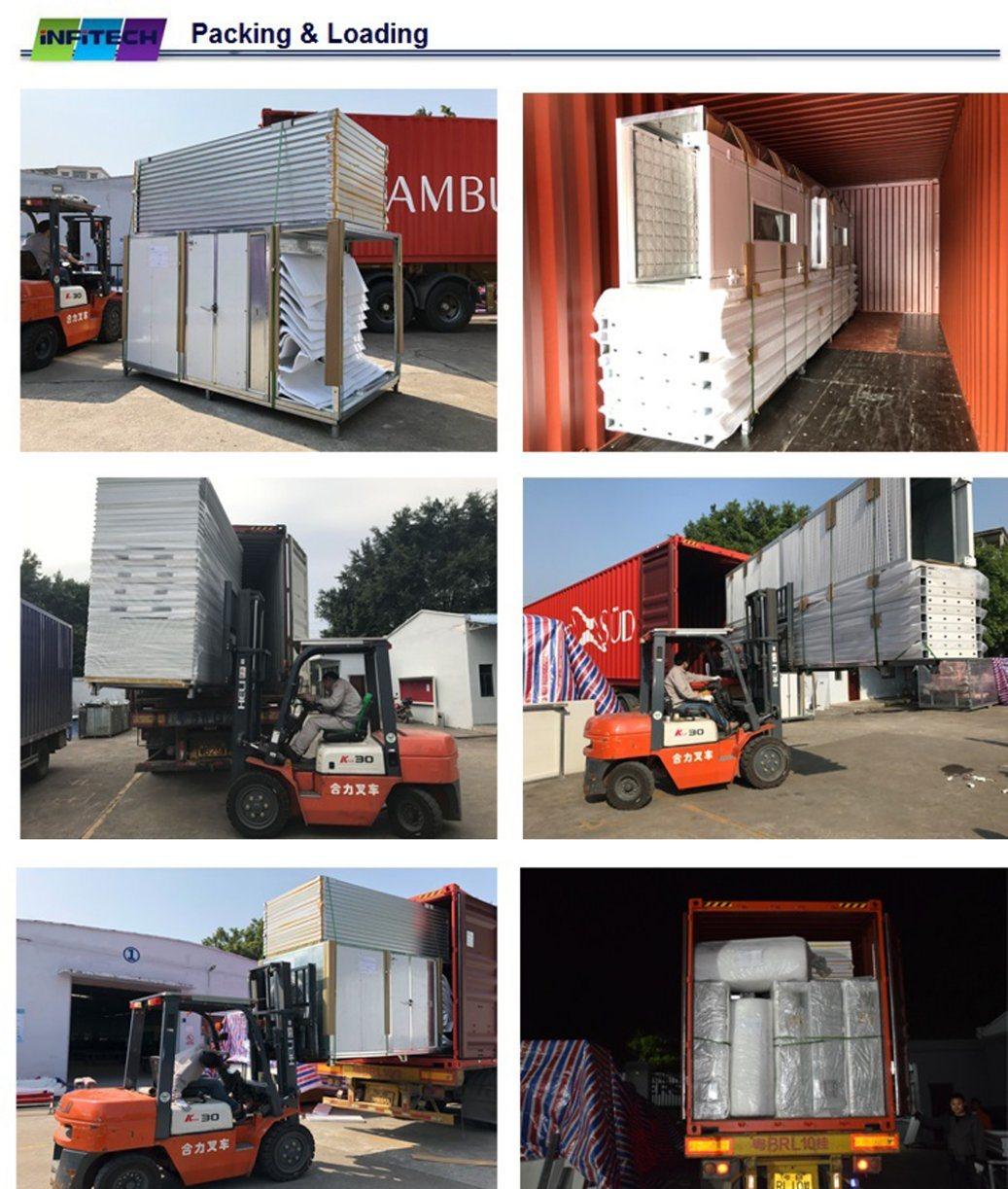

2. Packaging and Loading
Ce Certified Rear Extraction Furniture Spray Paint Cabins

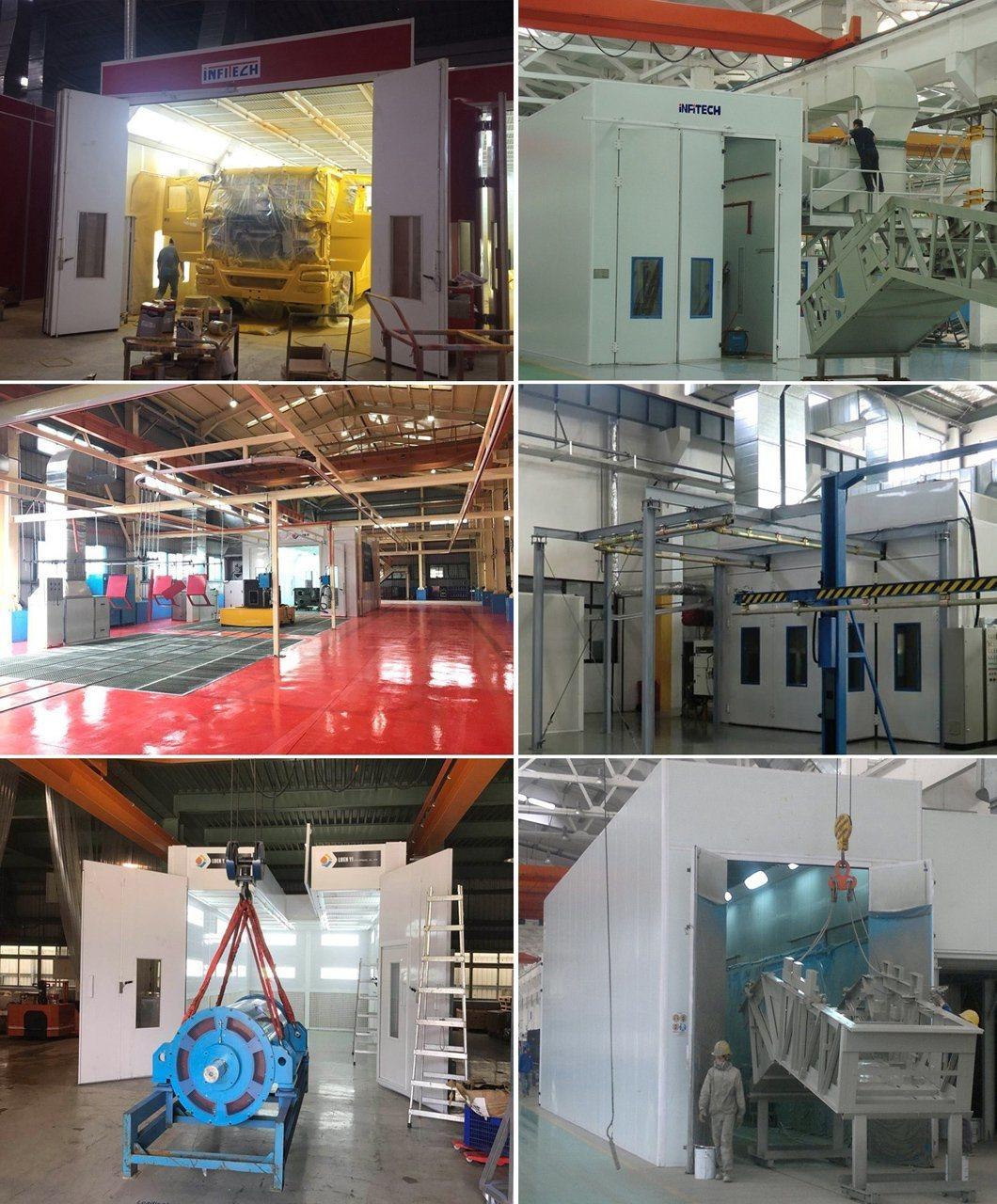

3. Typical Spray Booth Projects Display
Ce Certified Rear Extraction Furniture Spray Paint Cabins



4. Company Information
INFITECH is professional manufacturer of CE certified spray booth. We offer complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that is tailored to specific requirements, while maximizes profits for shop owners.
Ce Certified Rear Extraction Furniture Spray Paint Cabins

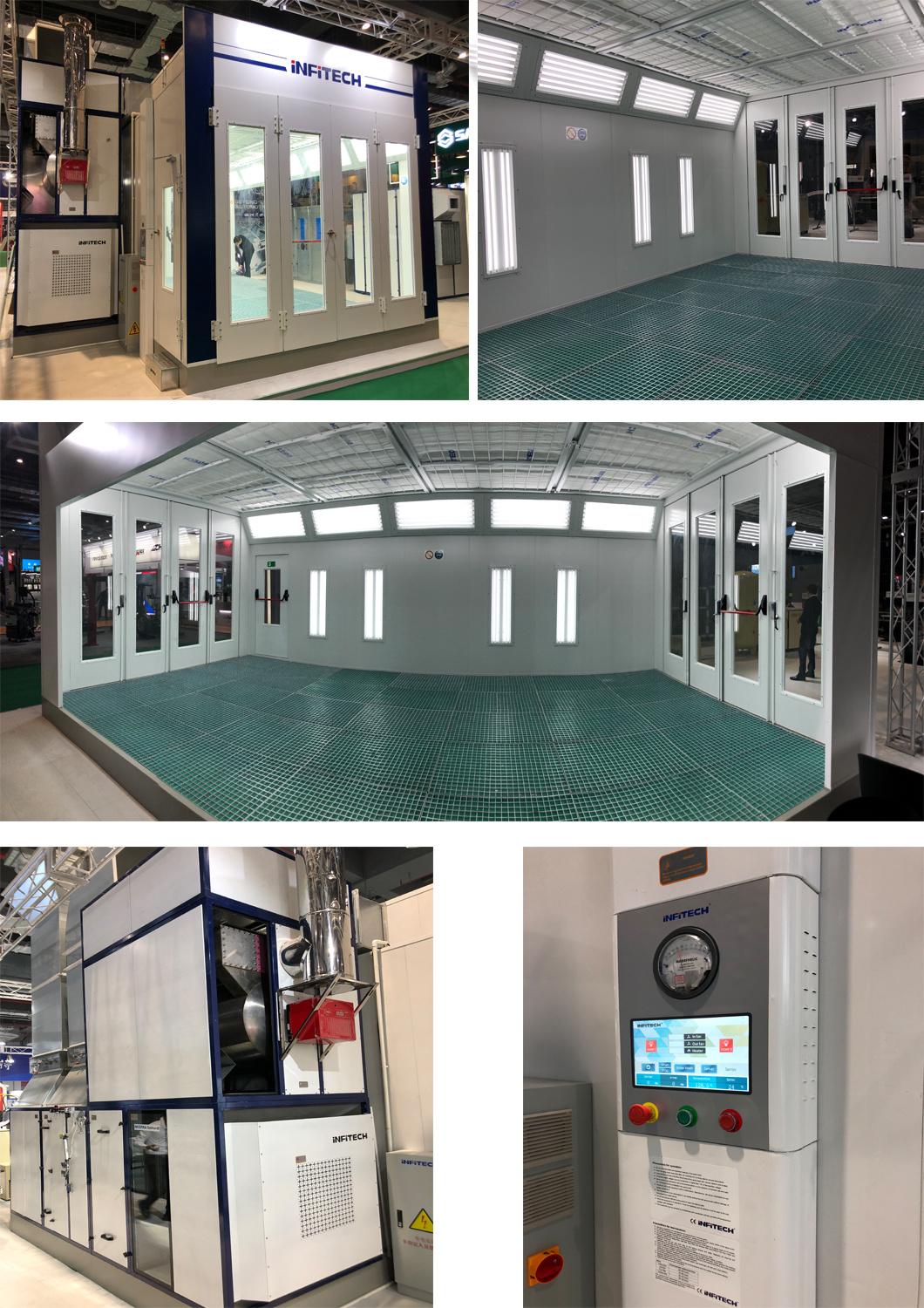

5. INFITECH at exhibition
Ce Certified Rear Extraction Furniture Spray Paint Cabins

Welcome to send your inquiries!
