Professional Automotive Paint Room for Car / Auto with Infra Red Heaters
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- Warranty：12months
- Type：Spray Booth
Base Info
- Model NO.：HY-CB55C
- Certification：CCC, CE, CSA, GS, UL, SGS
- Substrate：Aluminum
- Brand：Hongyuan
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50m Thickness EPS Foam Panel
- Intake Fan：1 or 2sets
- Exhaust Fan：1set
- Heating System：Gas, Diesel, Oil, Electric
- Heating Converter：Stainless Steel
- Lights：Available
- Control Box：1set, English Panel, Other Language for Option
- Drawing：Available
- User Manual：Available
- Control：Automatic
- Installation Video：Available
- Related Product 1：Car Lift
- Related Product 2：Tire Changer
- Related Product 3：Wheel Balancer
- Transport Package：Standard Package for Sea Shipment
- Specification：26CBM for FCL
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
- Package size per unit product：500.00cm * 200.00cm * 200.00cm
- Gross weight per unit product：1500.000kg
Description
Basic Info.
Model NO. HY-CB55C Certification CCC, CE, CSA, GS, UL, SGS Substrate Aluminum Brand Hongyuan Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Drawing Available User Manual Available Control Automatic Installation Video Available Related Product 1 Car Lift Related Product 2 Tire Changer Related Product 3 Wheel Balancer Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthPackaging & Delivery
Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1500.000kgProduct Description
Introduction of the Professional Automotive Paint Room for Car / Auto with infra red heaters1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Details of the Professional Automotive Paint Room for Car / Auto with infra red heaters
| Model | HY-CB55C |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 700*2000(W*H) |
| Total power | <40kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates. |
| Intake | two set of fan, motor: 4.0kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(electricity) | Electric heaters. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

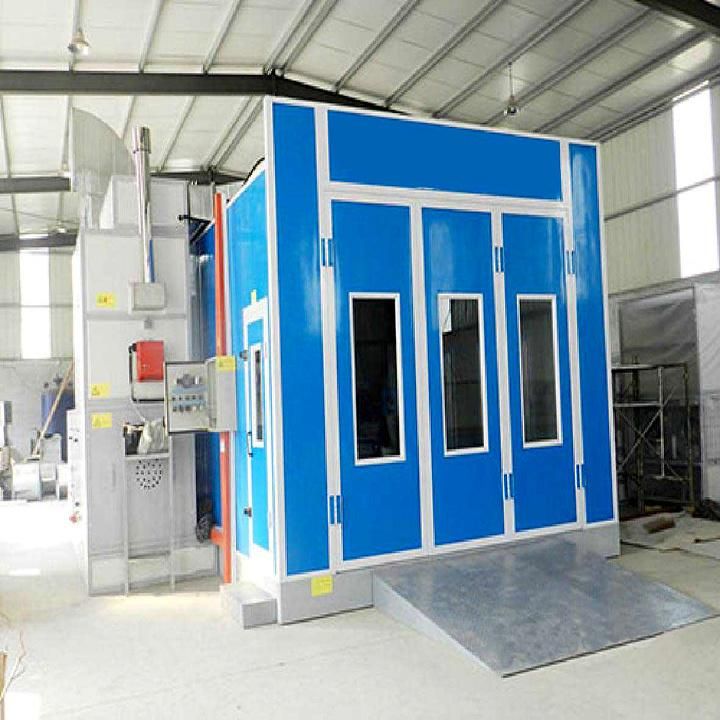

Picture of the Professional Automotive Paint Room for Car / Auto with infra red heaters
Details show of Professional Automotive Paint Room for Car / Auto with infra red heaters
parts show of paint booth
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry about Professional Automotive Paint Room for Car / Auto with infra red heaters
