Standard Dimension CE Approved Hot Selling Car Paint Spray Room with Electric Heaters
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CCC, CE, CSA, GS, UL, SGS
- Substrate：Aluminum
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB40C
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50m Thickness EPS Foam Panel
- Grid Plates：2rows
- Diamond Plates：3rows
- Intake Fan：1 or 2sets
- Exhaust Fan：1set
- Heating System：Gas, Diesel, Oil, Electric
- Heating Converter：Stainless Steel
- Lights：Available
- Control Box：1set, English Panel, Other Language for Option
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Lift,Tire Changer,Wheel Balancer
- Transport Package：Standard Package for Sea Shipment
- Specification：26CBM for FCL
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB40C Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Grid Plates 2rows Diamond Plates 3rows Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift/Tire Changer/Wheel Balancer Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Standard Dimension Ce Approved Hot Selling Car Paint Spray Room with electric heaters1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Details of the Standard Dimension Ce Approved Hot Selling Car Paint Spray Room with electric heaters
| Model | HY-CB40C |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 700*2000(W*H) |
| Total power | <40kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates. |
| Intake | two set of fan, motor: 4.0kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(electricity) | Electric heaters. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Picture of the Standard Dimension Ce Approved Hot Selling Car Paint Spray Room with electric heaters
Details show of Standard Dimension Ce Approved Hot Selling Car Paint Spray Room with electric heaters

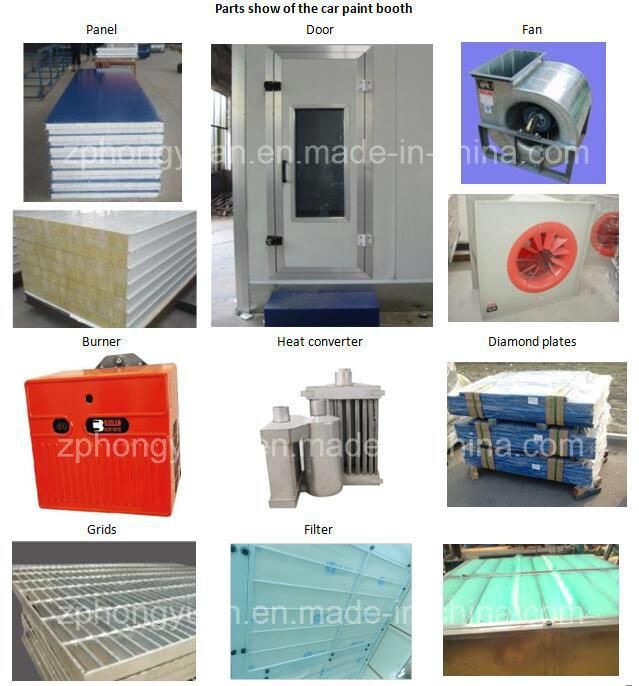

parts show of paint booth
