• Model NO.：HY-CB40B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50m Thickness EPS Foam Panel
• Grid Plates：2rows
• Intake Fan：1 or 2sets
• Exhaust Fan：1set
• Heating System：Gas, Diesel, Oil, Electric
• Heating Converter：Stainless Steel
• Lights：Available
• Control Box：1set, English Panel, Other Language for Option
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Car Lift
• Related Product 2：Car Preparation Room Bay
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB40B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Grid Plates 2rows Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift Related Product 2 Car Preparation Room Bay Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Used Car Painting Paint Spray Booth Room for Sale with italy diesel burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Details of the Used Car Painting Paint Spray Booth Room for Sale with italy diesel burner

Model	HY-CB40B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<40kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with  2rows of grid plates, 3rows of diamond plates.
Intake	Two set of fan, motor: 4.0kW.
Exhaust	One set of fan, motor: 4.0kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy diesel burner
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

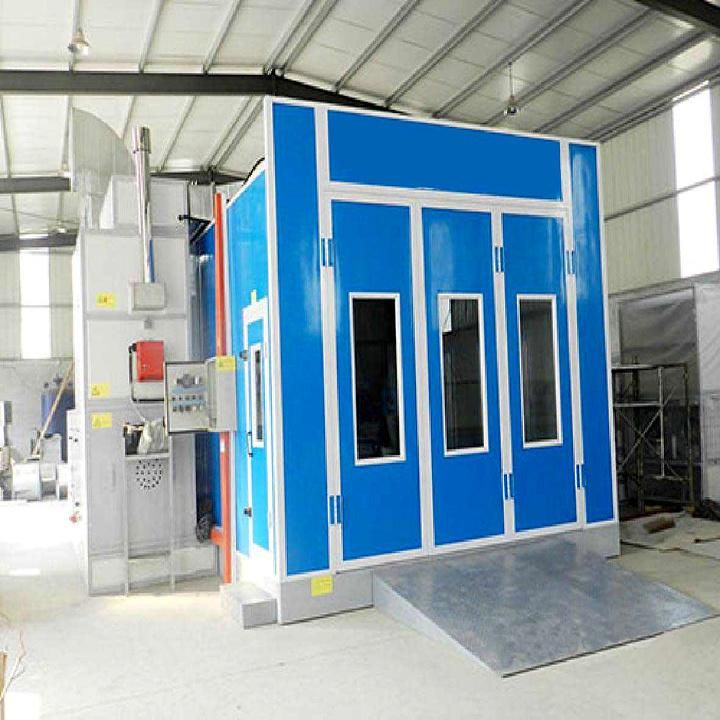

Picture of the Used Car Painting Paint Spray Booth Room for Sale with italy diesel burner


Details show of paint booth with oil burner


parts show of paint booth


Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time


Send us inquiry about our Used Car Painting Paint Spray Booth Room for Sale with italy diesel burner
