• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White, Grey
• Panel：50mm Thickness EPS Foam Panel
• Grates：2rows
• Diamond Plates：3rows
• Intake Fan：2set
• Exhaust Fan：1set
• Filter System：4-Stage Filtration
• Heating System：Diesel, Oil
• Upper Lights：Available
• Side Lights：for Option
• Control Box：English Panel
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Large Truck Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 50mm Thickness EPS Foam Panel Grates 2rows Diamond Plates 3rows Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Diesel, Oil Upper Lights Available Side Lights for Option Control Box English Panel Drawing Available User Manual Available Installation Video Available Related Product Large Truck Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the paint booth design for car and minivan with oil burner or diesel Burner and heat insulation panel
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the paint booth design for car and minivan with oil burner or diesel Burner and heat insulation panel

Model	HY-CB55B
Outside Size(mm)	7050(L)*4050(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	15.5kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello oil burner or diesel burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Picture of the Auto paint spray booth design for car and minivan with oil burner or diesel burner and heat insulation panel


details show of paint booth

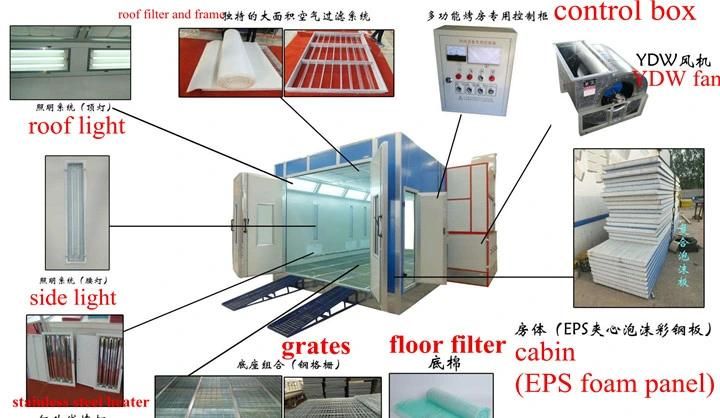

parts show of paint booth






Project case for paint booth
