• Model NO.：non-standard
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Brand Name：Baoyues
• Voltage：220V, 380V, 50Hz
• Color：Optional
• Purification：≥95%
• Noise Db (a)：≤75
• Certificate：CE, CCS
• Air Capacity：21000m3,H
• Place of Origin：China (Mainland )
• Usage：for Car Spraying and Baking
• Wararanty：1years
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：50set,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3200.000kg

Intake and Exhaust
system
 Inlet: 1×5.5KW turbo fan , air capacity for each fan:  21000m3/h .Outlet: optional, 4m ducts, 1 pcs 900 bend.Heating systemG10 diesel burner , stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity:  180000kcal/h,  max temperature: 80°C, 4pcs chimney, 1pcs bend.Purification systemPre-filter, ceiling filter, fibreglass filter.RoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, all motors is normal start.Total power7.5KW  (Power supply 1×220V, 3×380V, 50HZ)


Parts details:






What customer saying:

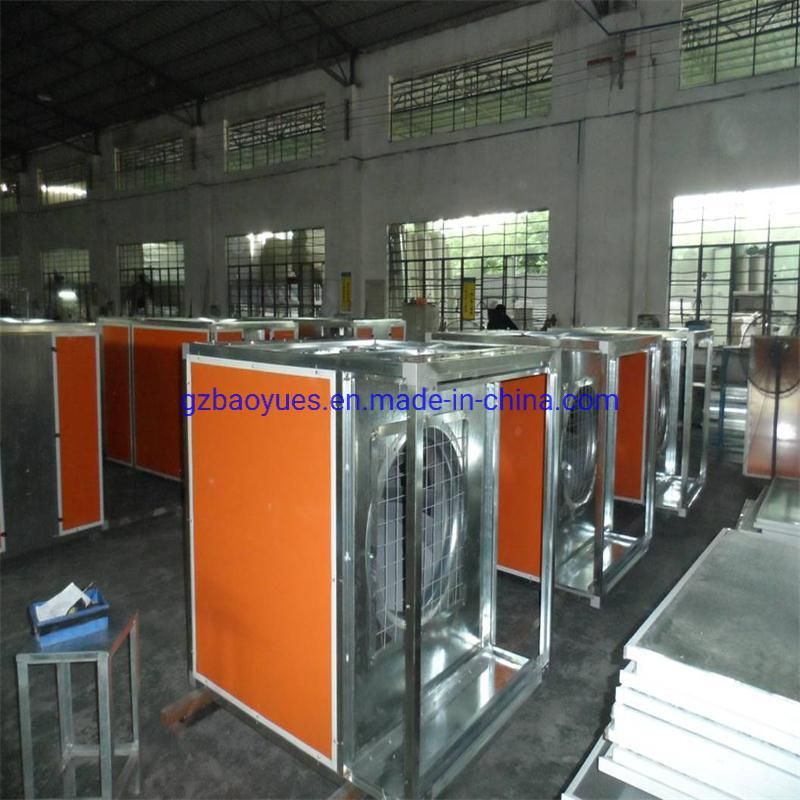

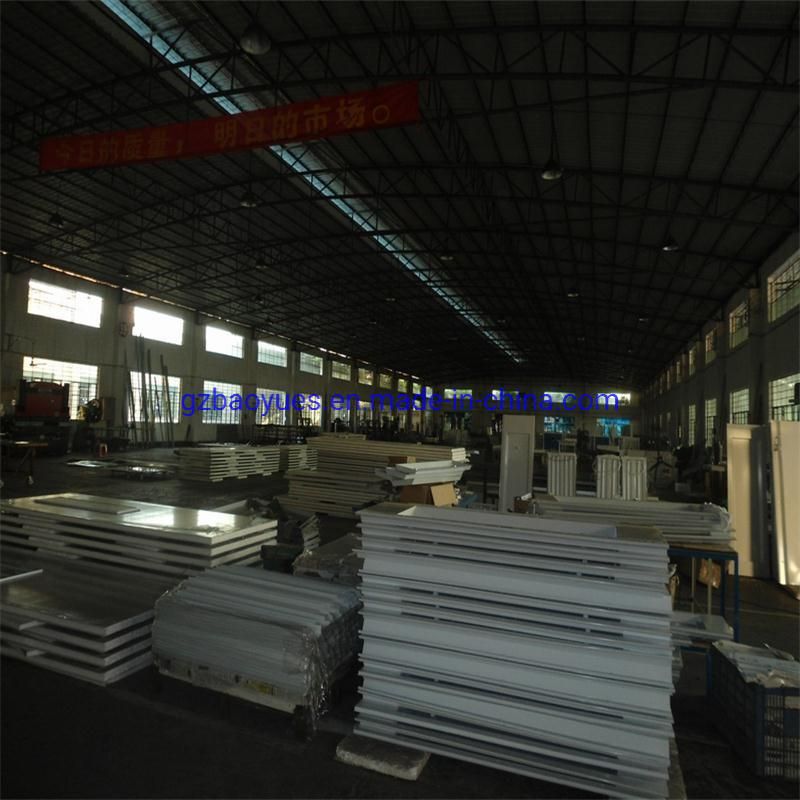

Factory show:
