Spray Bake Paint Booth/Car Wash Booth/Lacquer Finish Spray Booth

Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.

After-sales Service：Available
Warranty：12months
Type：Spray Booth
Certification：CCC, CE, SGS
Substrate：Aluminum
Brand：Hongsheng

Base Info

Model NO.：HY-CB55A
Coating：Painting
Airflow Direction：Fully Undershot-type
Heating Mode：Steam
Paint Mist Treatment：Dry-type
Condition：New
Color：Red, Blue, White
Panel：50m Thickness EPS Foam Panel
Grid Plates：2rows
Diamond Plates：3rows
Intake Fan：1 or 2sets
Exhaust Fan：1set
Heating System：Gas, Diesel, Oil, Electric
Heating Converter：Stainless Steel
Lights：Available
Control Box：1set, English Panel, Other Language for Option
Drawing：Available
User Manual：Available
Control：Automatic
Installation Video：Available
Related Product：Large Retractable Paint Spray Booth
Transport Package：Standard Package for Sea Shipment
Specification：26CBM for FCL
Trademark：Hongyuan
Origin：Shandong, China
Production Capacity：100 Set Per Month

Description

Basic Info.

Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Steam Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Grid Plates 2rows Diamond Plates 3rows Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Drawing Available User Manual Available Control Automatic Installation Video Available Related Product Large Retractable Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

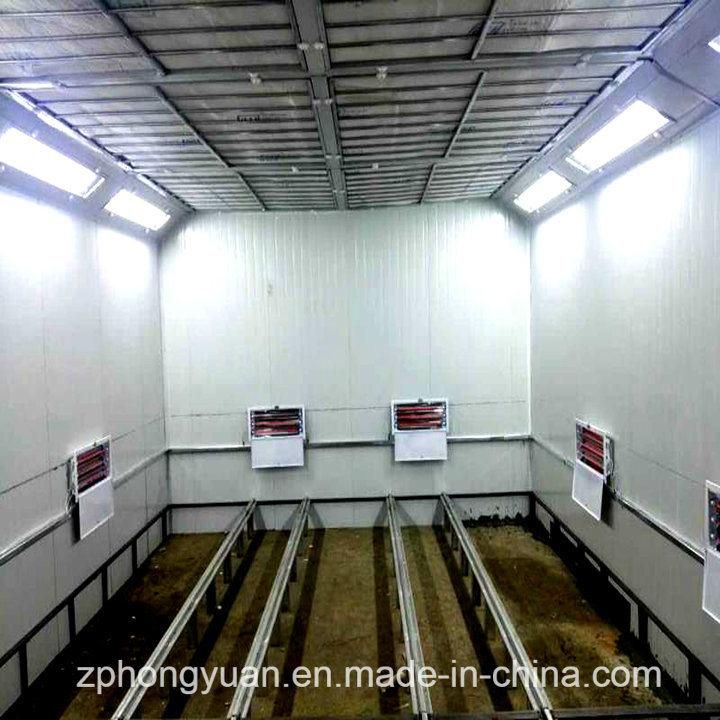

Introduction of the Auto paint spray booth for car and minivan with electric heaters
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Details of the Automotive Paint booth with intake and exhaust fan

Model	HY-CB55A
Outside Size(mm)	7000(L)4000(W)3400(H)
Inside Size(mm)	6900(L)3900(W)2700(H)
Front Door(mm)	30002600(WH)
Side Door(mm)	6001800(WH)
Total power	15.5kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel

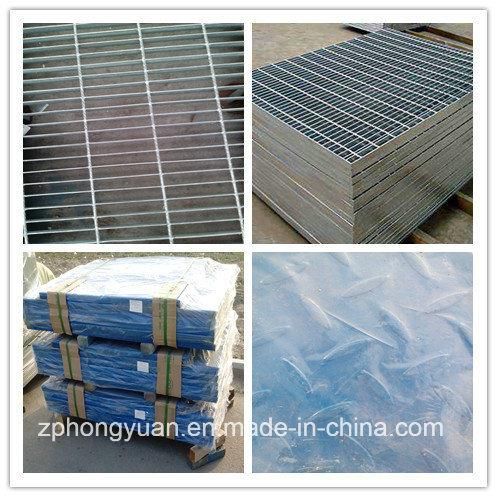

Basement&floor	Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(GAS)	Italy Riello GAS BURNER, one-stage oil burner FOR OPTION.

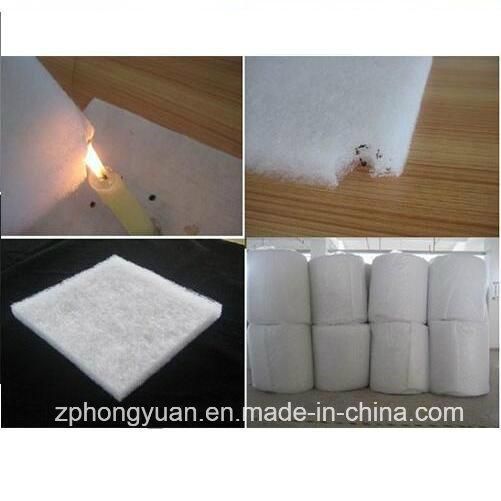

Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.
