• Model NO.：HY-CB55A
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Steam
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50m Thickness EPS Foam Panel
• Grate：2rows
• Diamond Plates：3rows
• Intake Fan：1 or 2sets
• Exhaust Fan：1set
• Heating System：Gas, Diesel, Oil, Electric
• Heating Converter：Stainless Steel
• Lights：Available
• Control Box：1set, English Panel, Other Language for Option
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product 1：Large Truck Paint Spray Booth
• Related Product 2：Folding Retractable Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Steam Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Grate 2rows Diamond Plates 3rows Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Drawing Available User Manual Available Installation Video Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Auto paint spray booth for car and minivan with electric heaters
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Details of the Automotive Paint booth with intake and exhaust fan

Model	HY-CB55A
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	600*1800(W*H)
Total power	20kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel

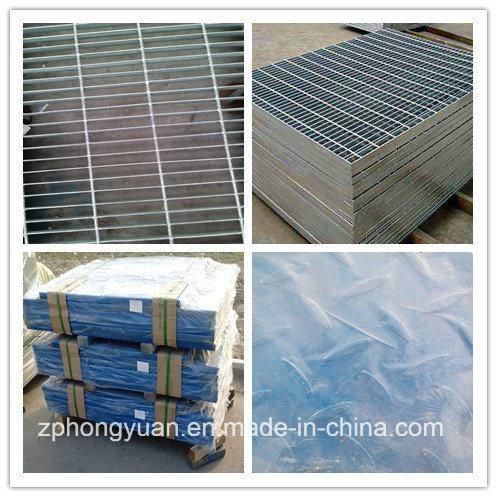

Basement&floor	Raised metal-base (300mm high) with 2ROWS of grates, 3rows of diamond plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(GAS)	Italy Riello GAS BURNER, one-stage oil burner FOR OPTION.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

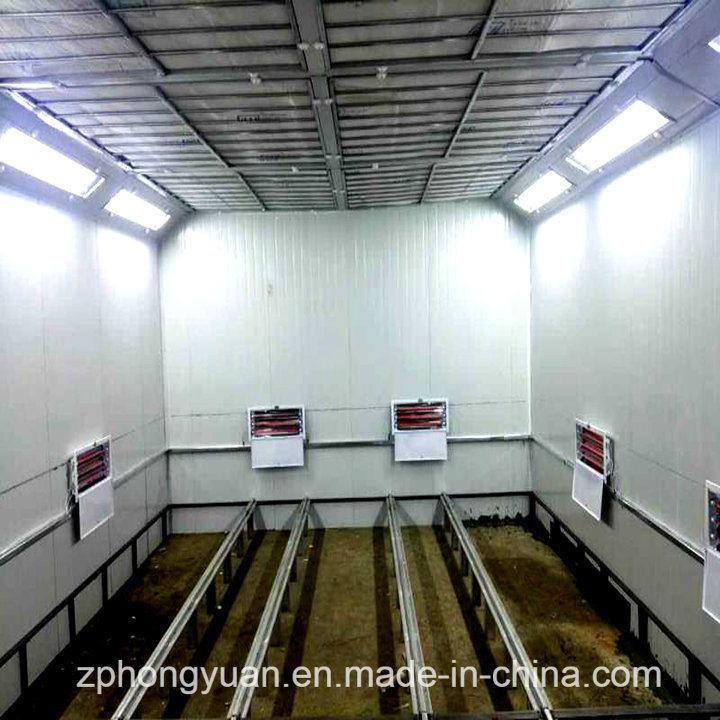

Picture of the Automotive Paint booth with intake and exhaust fan



Details show of paint booth with oil burner


parts show of paint booth





Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time
