• Model NO.：HY-CB40C
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50,75mm EPS Foam Panel
• Grate：5rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filtration System
• Upper Light：Available
• Side Light：Optional
• Control Box：English Panel
• Standard Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Car Lift,Car Preparation Room Bay
• Transport Package：Proper Packing Suitable for Sea Shipment
• Specification：25cbm for a 20ft container loading.
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB40C Airflow Direction Lateral Undershot-type Heating Mode Electric Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 5rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift/Car Preparation Room Bay Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the High Quality Spray Booth Cabina De Pintura Car Painting Room
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the High Quality Spray Booth Cabina De Pintura Car Painting Room

Model	HY-CB40C
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	600*1800(W*H)
Total power	20kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grid plates and 3rows of diamond plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 4kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(electricity)	electric heaters, Italy Riello one-stage oil burner for option.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Picture of the High Quality Spray Booth Cabina De Pintura Car Painting Room


details show of paint booth



parts show of paint booth




Production area and equipment for High Quality Spray Booth Cabina De Pintura Car Painting Room

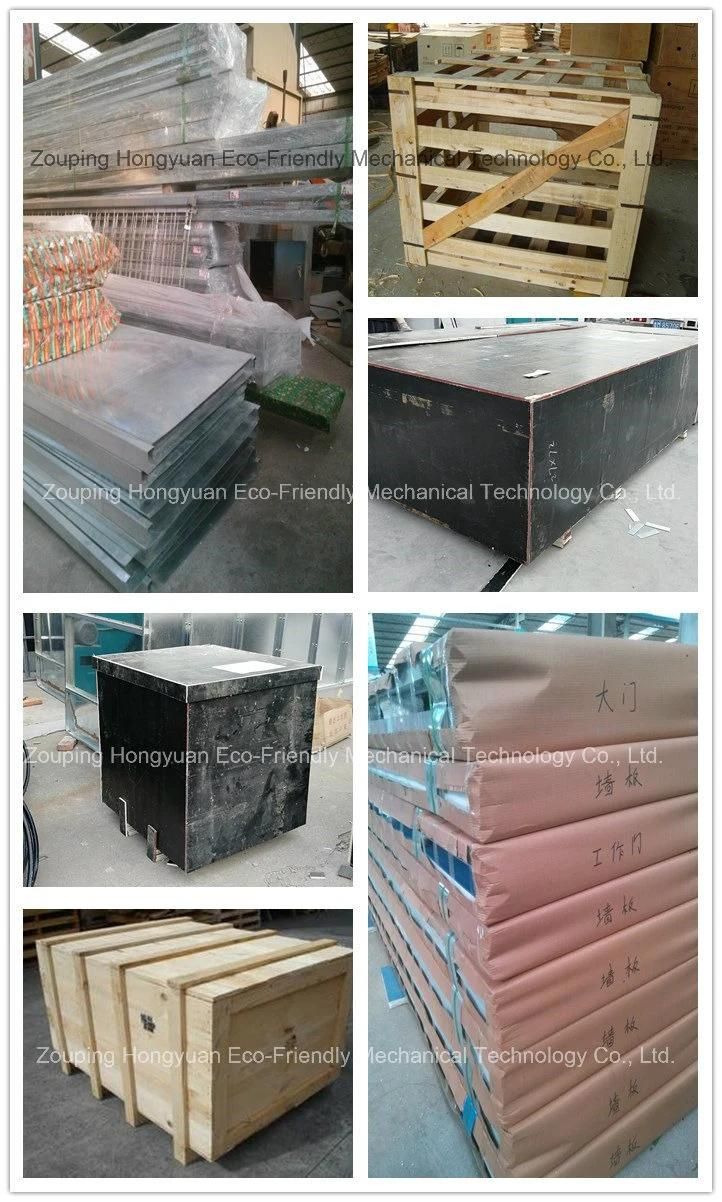

Package Show of High Quality Spray Booth Cabina De Pintura Car Painting Room


Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time


Send us inquiry about High Quality Spray Booth Cabina De Pintura Car Painting Room
