CE Approved China Factory Direct Supply Car Painting Room Price
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Auto Paint Spray Booth
- Certification：CE, ISO, SGS
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55C
- Coating：Painting
- Airflow Direction：Lateral Undershot-type
- Heating Mode：Electric
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：2rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Lif,Tire Changer,Wheel Balancer
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55C Coating Painting Airflow Direction Lateral Undershot-type Heating Mode Electric Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lif/Tire Changer/Wheel Balancer Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Ce Approved China Factory direct Supply Car Painting Room Price1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Ce Approved China Factory direct Supply Car Painting Room Price
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <13kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 3row of grates and 2rows of diamond plates. |
| Intake | TWO sets of fan, motor: 3kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner./electric heating system/Riello gas burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Picture of the Ce Approved China Factory direct Supply Car Painting Room Price

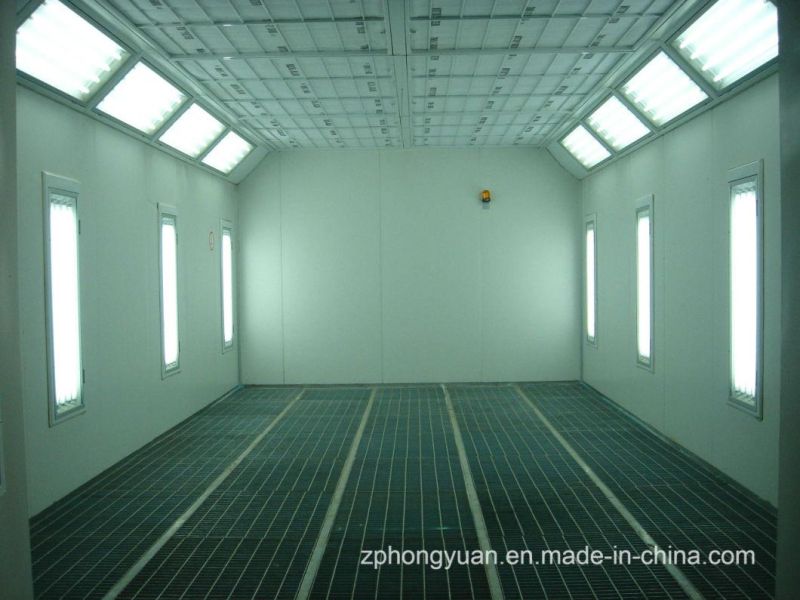

details show of paint booth
parts show of paint booth
Production area and equipment for Ce Approved China Factory direct Supply Car Painting Room Price
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us Inquiry about Ce Approved China Factory direct Supply Car Painting Room Price
