• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50m Thickness EPS Foam Panel
• Grid Plates：2rows
• Intake Fan：1 or 2sets
• Exhaust Fan：1set
• Heating System：Gas, Diesel, Oil, Electric
• Heating Converter：Stainless Steel
• Lights：Available
• Control Box：1set, English Panel, Other Language for Option
• Drawing：Available
• User Manual：Available
• Control：Automatic
• Installation：Available
• Related Product 1：Car Lift
• Related Product 2：Car Preparation Room Bay
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：N,A
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Grid Plates 2rows Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Drawing Available User Manual Available Control Automatic Installation Available Related Product 1 Car Lift Related Product 2 Car Preparation Room Bay Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Baking Car Auto Paint Spray Booth Room for Sale
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Details of the Baking Car Auto Paint Spray Booth Room for Sale

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	600*1800(W*H)
Total power	20kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grid plate and 3rows of diamond plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

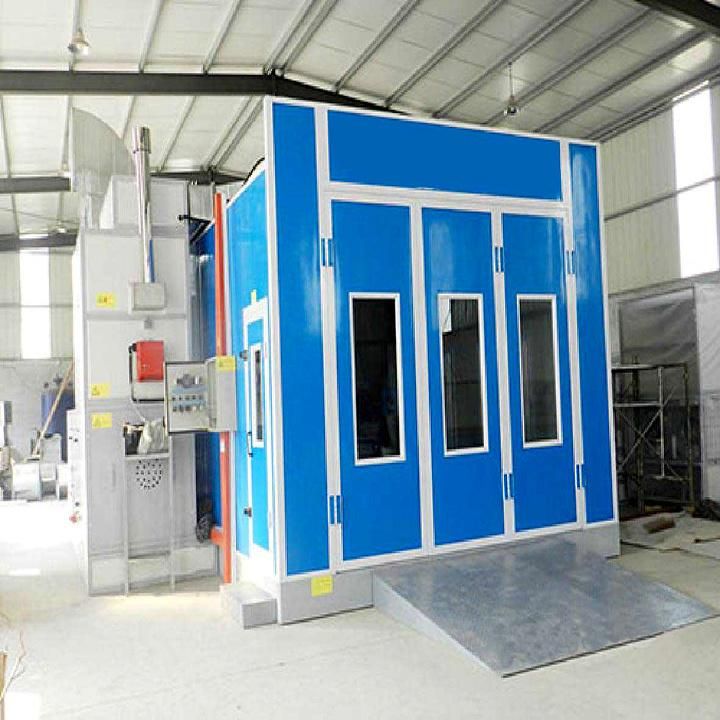

Picture of the Baking Car Auto Paint Spray Booth Room for Sale

Details show of Baking Car Auto Paint Spray Booth Room for Sale

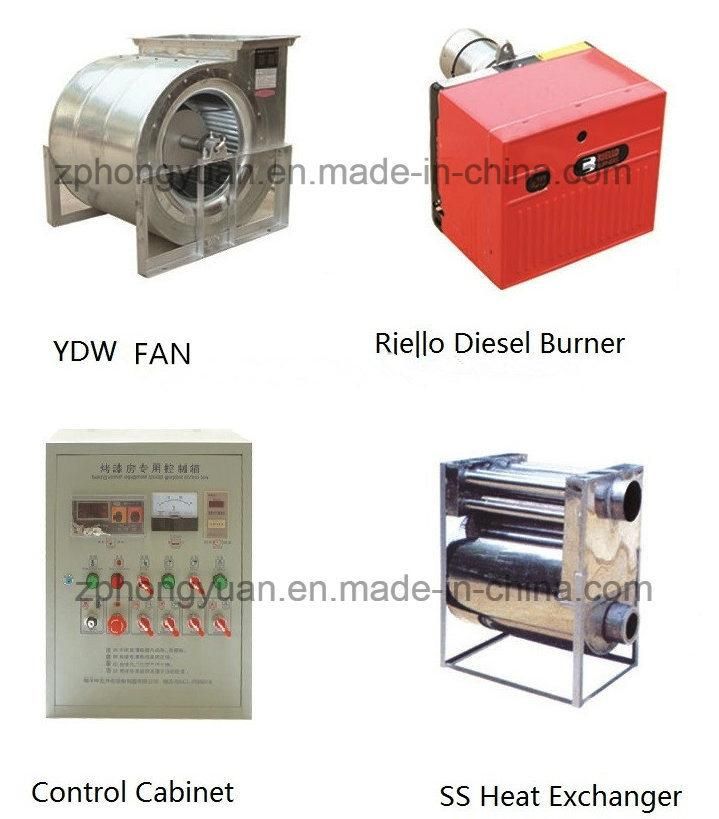

parts show of Baking Car Auto Paint Spray Booth Room for Sale

parts show of Baking Car Auto Paint Spray Booth Room for Sale


Production area and equipment for Baking Car Auto Paint Spray Booth Room for Sale


Package Show of Baking Car Auto Paint Spray Booth Room for Sale


Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time


Send us inquiry for more info about Baking Car Auto Paint Spray Booth Room for Sale
