Auto Painting Booth for Car Repair and Painting and Baking
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CCC, CE, CSA, GS, UL, SGS, ISO
- Substrate：Aluminum
- Brand：Hongsheng
Base Info
- Model NO.：HY-CB55B
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50m Thickness EPS Foam Panel
- Intake Fan：1 or 2sets
- Exhaust Fan：1set
- Heating System：Gas, Diesel, Oil, Electric
- Heating Converter：Stainless Steel
- Lights：Available
- Control Box：1set, English Panel, Other Language for Option
- Drawing：Available
- User Manual：Available
- Control：Automatic
- Related Product 1：Furniture Paint Spray Booth
- Related Product 2：Folding Paint Spray Booth
- Related Product 3：Wet Type Water Curtain Paint Spray Booth
- Related Product 4：Dry Type Andrea Filter Open Face Paint Spray Booth
- Transport Package：Standard Package for Sea Shipment
- Specification：26CBM for FCL
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Drawing Available User Manual Available Control Automatic Related Product 1 Furniture Paint Spray Booth Related Product 2 Folding Paint Spray Booth Related Product 3 Wet Type Water Curtain Paint Spray Booth Related Product 4 Dry Type Andrea Filter Open Face Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Auto Painting Booth for Car Repair and Painting and Baking1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Details of the Auto Painting Booth for Car Repair and Painting and Baking
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <15.5kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 3row of grates and 2rows of diamond plates. |
| Intake | TWO sets of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage OIL burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Picture of the Auto Painting Booth for Car Repair and Painting and Baking

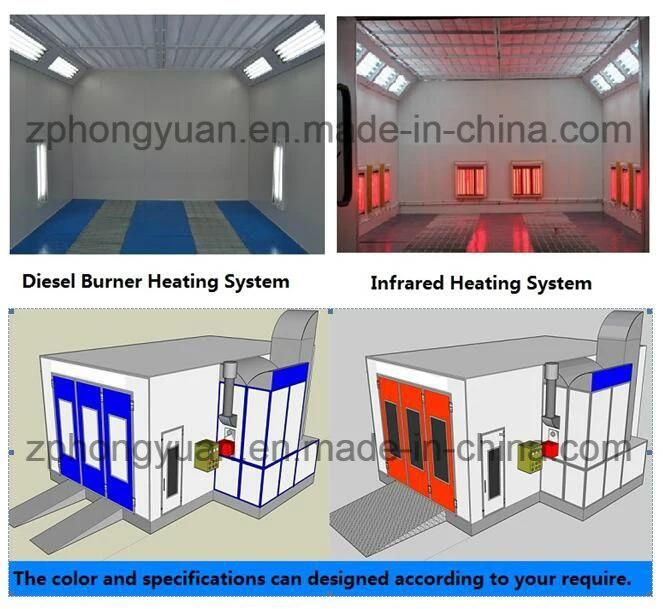

Details show of Auto Painting Booth for Car Repair and Painting and Baking

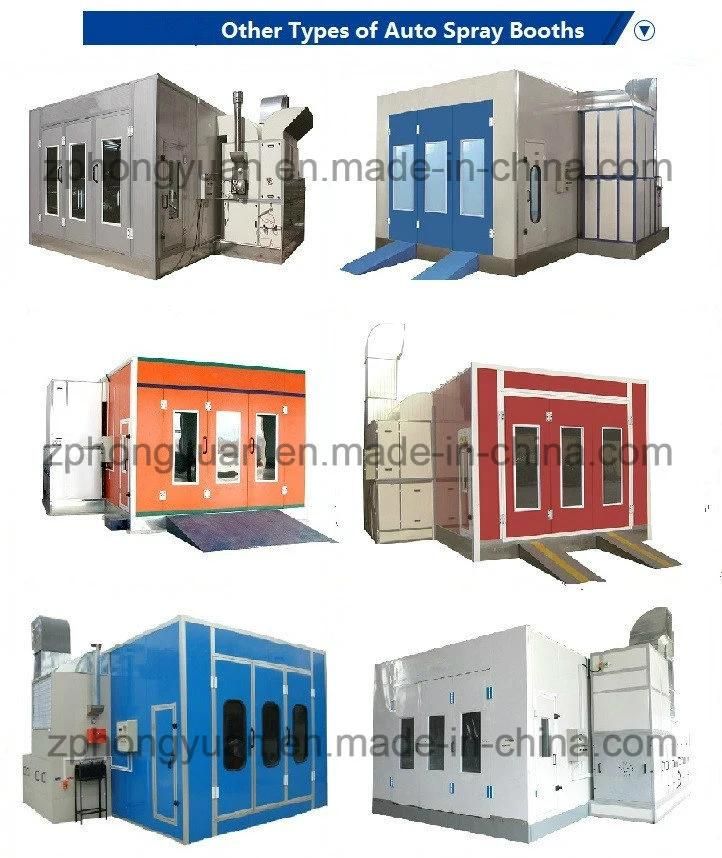

Other types of Auto Painting Booth for Car Repair and Painting and Baking
Production area and equipment for Auto Painting Booth for Car Repair and Painting and Baking
Package Show of Auto Painting Booth for Car Repair and Painting and Baking
Project case for paint booth
Certificate of our product and company
