• Model NO.：HY-CB40C
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50m Thickness EPS Foam Panel
• Grates：2rows
• Intake Fan：1 or 2sets
• Exhaust Fan：1set
• Heating System：Gas, Diesel, Oil, Electric
• Heating Converter：Stainless Steel
• Lights：Available
• Control Box：1set, English Panel, Other Language for Option
• Drawing：Available
• User Manual：Available
• Control：Automatic
• Filtration：4-Stage
• Related Product 1：Furniture Paint Spray Booth
• Related Product 2：Folding Large Retractable Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：N,A
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB40C Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Grates 2rows Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Drawing Available User Manual Available Control Automatic Filtration 4-Stage Related Product 1 Furniture Paint Spray Booth Related Product 2 Folding Large Retractable Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Automotive Equipment for Car Painting and Baking
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Details of the Automotive Equipment for Car Painting and Baking

Model	HY-CB40C
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<40kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates.
Intake	two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 4kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Electricity)	Electric heaters.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Picture of the Automotive Equipment for Car Painting and Baking



Details show of Automotive Equipment for Car Painting and Baking

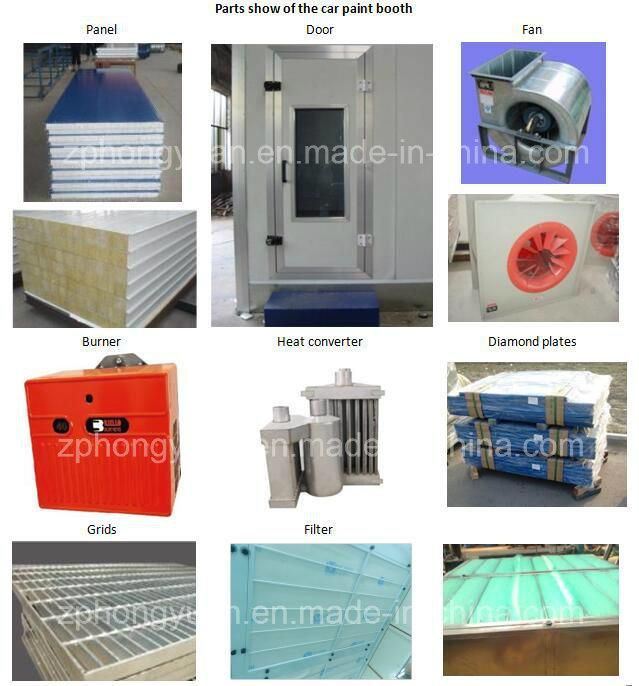

parts show of paint booth
