• Certification：CCC, CE, CSA, GS, UL, SGS
• Substrate：Aluminum
• Brand：Hongyuan
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50m Thickness EPS Foam Panel
• Intake Fan：1 or 2sets
• Exhaust Fan：1set
• Heating System：Gas, Diesel, Oil, Electric
• Heating Converter：Stainless Steel
• Lights：Available
• Control Box：1set, English Panel, Other Language for Option
• Drawing：Available
• User Manual：Available
• Control：Automatic
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：N,A
• Origin：Shandong, China
• Production Capacity：100 Set Per Month
• Package size per unit product：500.00cm * 200.00cm * 200.00cm
• Gross weight per unit product：1200.000kg

Basic Info.

Certification CCC, CE, CSA, GS, UL, SGS Substrate Aluminum Brand Hongyuan Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50m Thickness EPS Foam Panel Intake Fan 1 or 2sets Exhaust Fan 1set Heating System Gas, Diesel, Oil, Electric Heating Converter Stainless Steel Lights Available Control Box 1set, English Panel, Other Language for Option Drawing Available User Manual Available Control Automatic Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per Month

Packaging & Delivery

Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1200.000kg

Product Description

Introduction of the Auto paint spray booth for car and minivan with electric heaters
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Details of the Automotive Paint booth with intake and exhaust fan

Model	HY-CB75C
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<40kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	One set of fan, motor: 5.5kW.
Exhaust	One set of fan, motor: 7.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Electric heaters.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

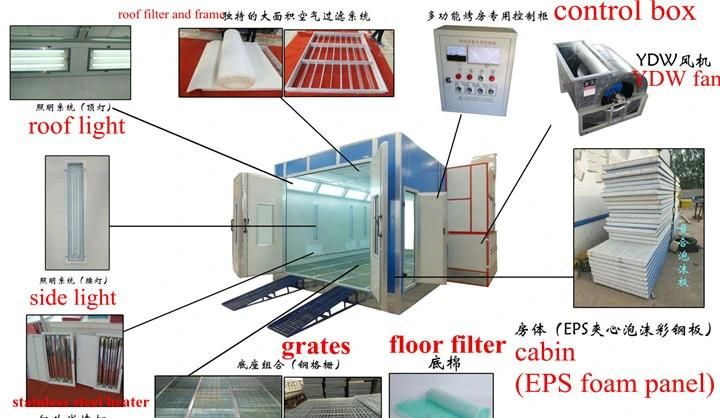

Picture of the Automotive Paint booth with intake and exhaust fan

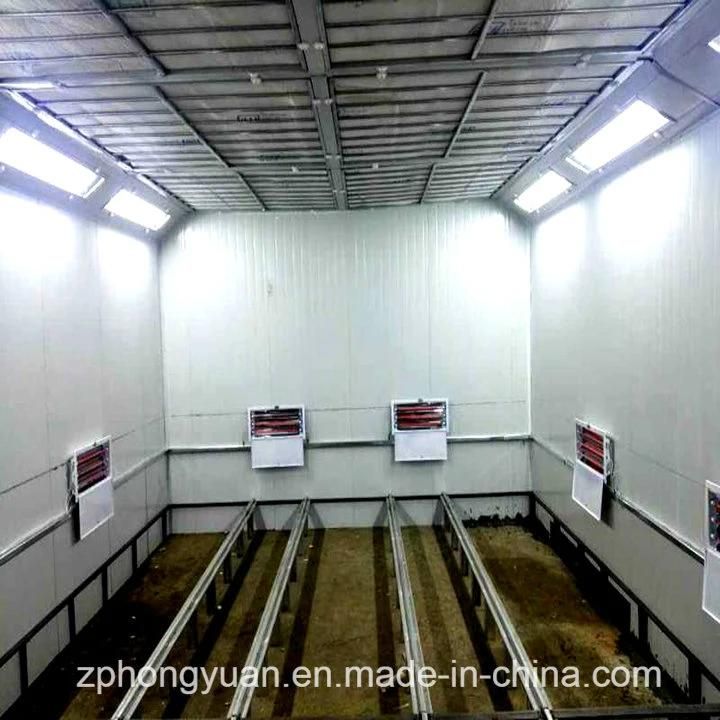

Details show of paint booth with oil burner

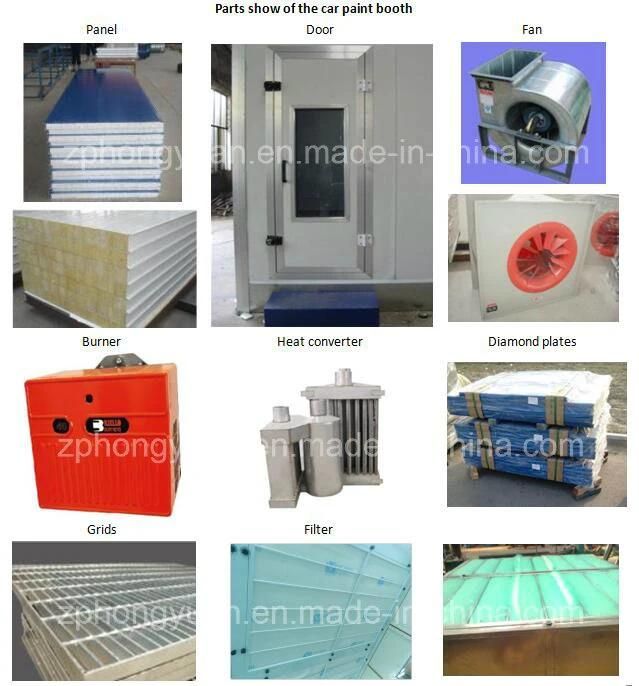

parts show of paint booth
