• Model NO.：IT-SUPER-1101
• Paint Mist Treatment：Dry-type
• Condition：New
• Walls：50mm PU Panel
• Lighting：LED Lamp
• Brightness：>1,000lux
• Fan：Direct-Drive
• Motor：11kw Siemens
• Air Volume：35,000m3,H
• Empty Loaded Air Speed：+,-0.35m,S
• Heat：315kw, Riello RS5d Burner
• Filter：High Efficiency Filter
• Noise：< 78dB
• Transport Package：Polyfoam and Metal Frame
• Specification：7000X4000X2800MM
• Trademark：INFITECH
• Origin：China
• HS Code：8419899090
• Production Capacity：900 Sets,Year

Basic Info.

Model NO. IT-SUPER-1101 Paint Mist Treatment Dry-type Condition New Walls 50mm PU Panel Lighting LED Lamp Brightness >1,000lux Fan Direct-Drive Motor 11kw Siemens Air Volume 35,000m3/H Empty Loaded Air Speed +/-0.35m/S Heat 315kw, Riello RS5d Burner Filter High Efficiency Filter Noise < 78dB Transport Package Polyfoam and Metal Frame Specification 7000X4000X2800MM Trademark INFITECH Origin China HS Code 8419899090 Production Capacity 900 Sets/Year

Product Description

INFITECH Hot Sale CE Certified Full Downdraft Dry Type Auto Paint Oven

1) PRODUCT OVERVIEW

Features:

1) CE certified

2) High performance direct drive 11KW fan

3) Touch screen control

4) Inverter control, save energy

5) Good noise control and high performance

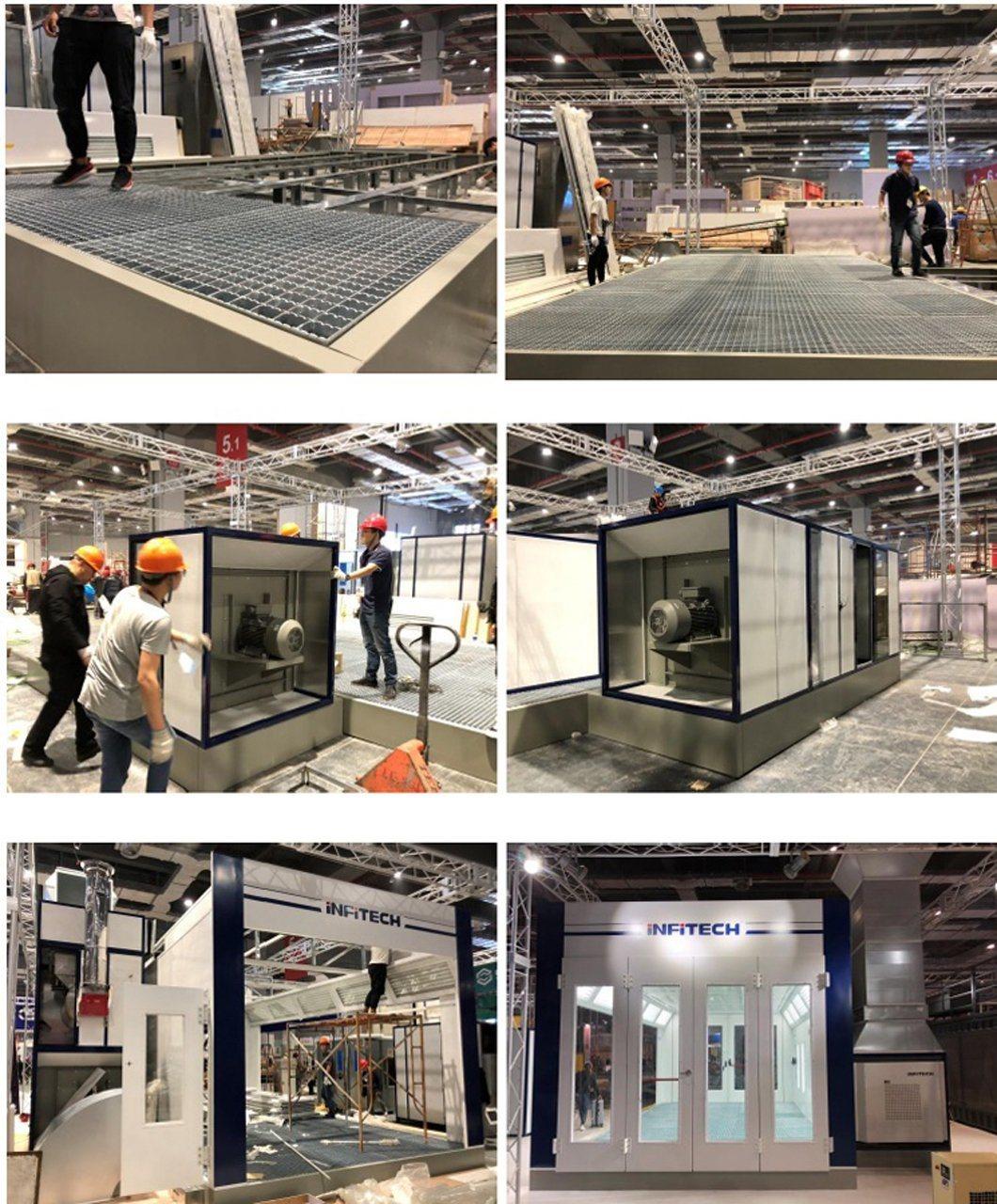

INSTALLATION AT A GLANCE

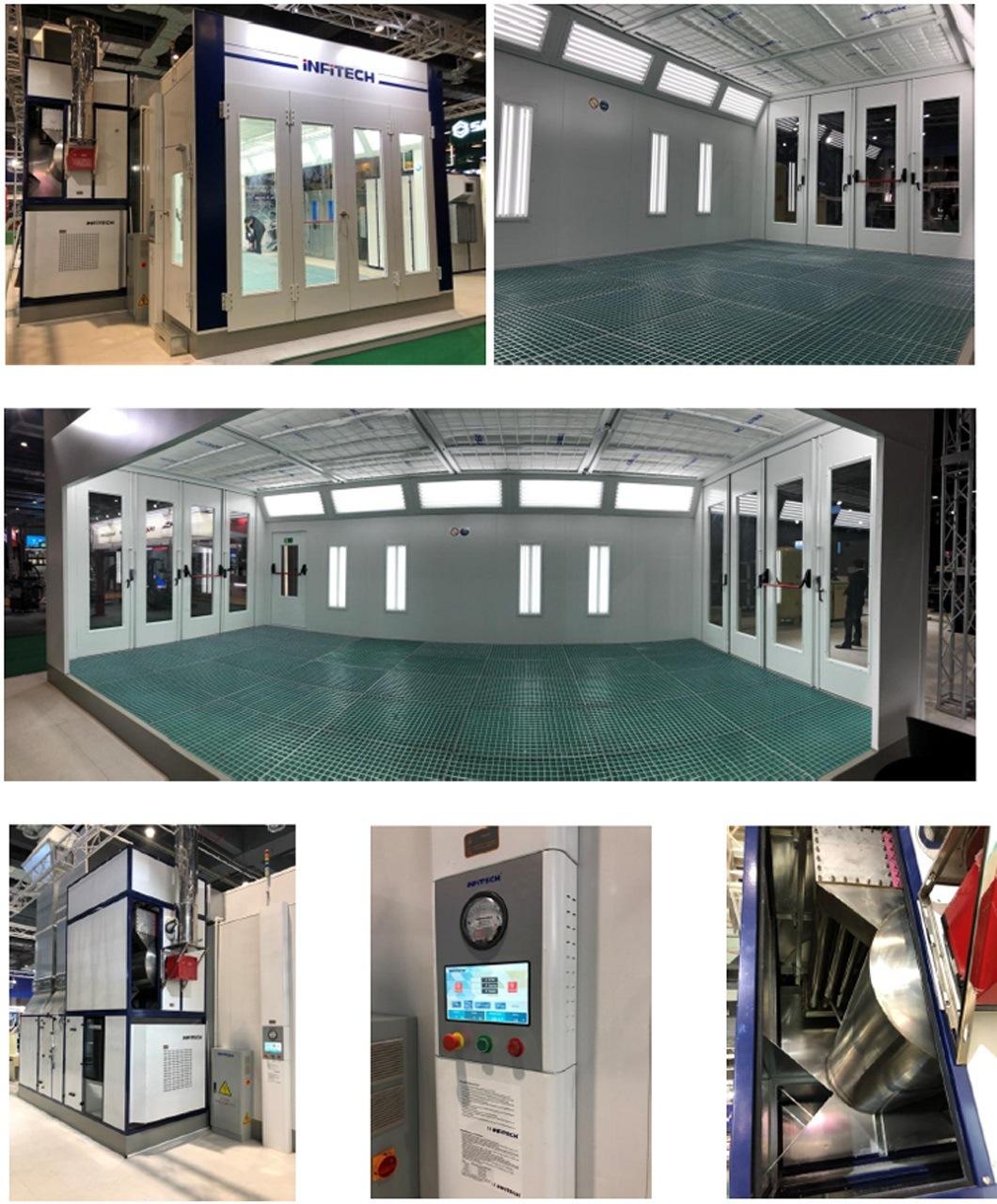

PRODUCT AT A GLANCE


2) TECHNICAL SPECIFICATIONS

ITEMS	SPECIFICATIONS
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	7000 X 4000 X 2800mm (L X W X H)
External dimensions	7110 X 5760 X 3810mm (L X W X H)
Entrance door	1 set, 3400 X 2700 mm (W X H)
Personnel door	1 set, 800 X 2000 mm (W X H)
Ceiling lighting (LED)	10 sets, each 6 X18W, 1,080W total
Sidewall lighting (LED)	6 sets, each 2 X 18W, 216W total
Brightness	>1,000LUX
Filters	Pre-filter, ceiling filter, floor filter, exhaust filter
Air intake	Direct-type turbine fan, 11KW CE motor
Air exhaust	Direct-type turbine fan, 11KW CE motor
Air volume	35,000m3/h
Empty loaded air speed	+/-0.35m/s
Air exchange times	7 times/min
Maximum working temperature	80ºC
Heat exchanger power	315KW
Burner (Max. calorific value)	RIELLO gas burner RS5D (two stage)
Controls	CE standard control box
Rated power	28K

3) PACKAGING AND SHIPPING


4) ENGINEERING CASES

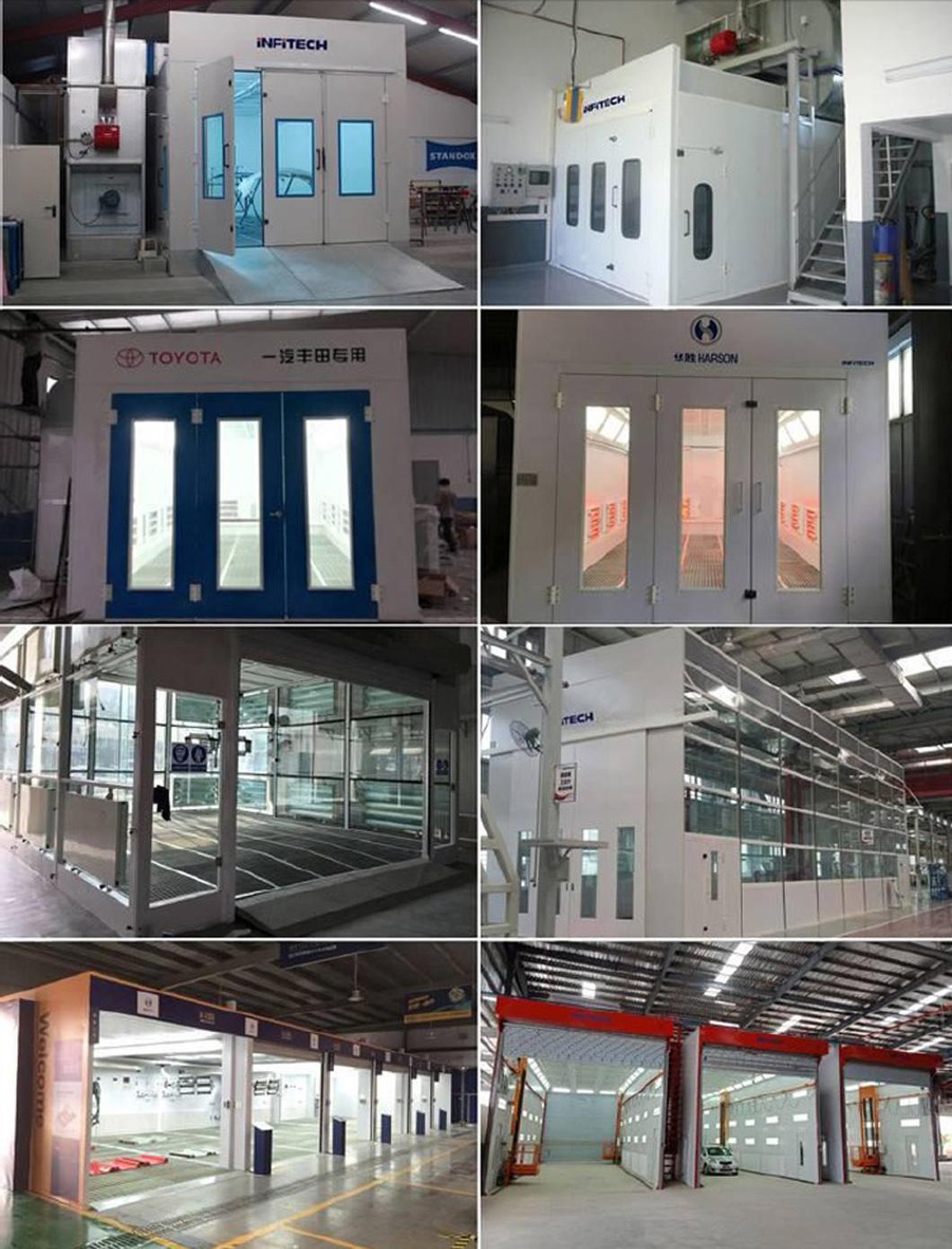

>>>Automotive Solution

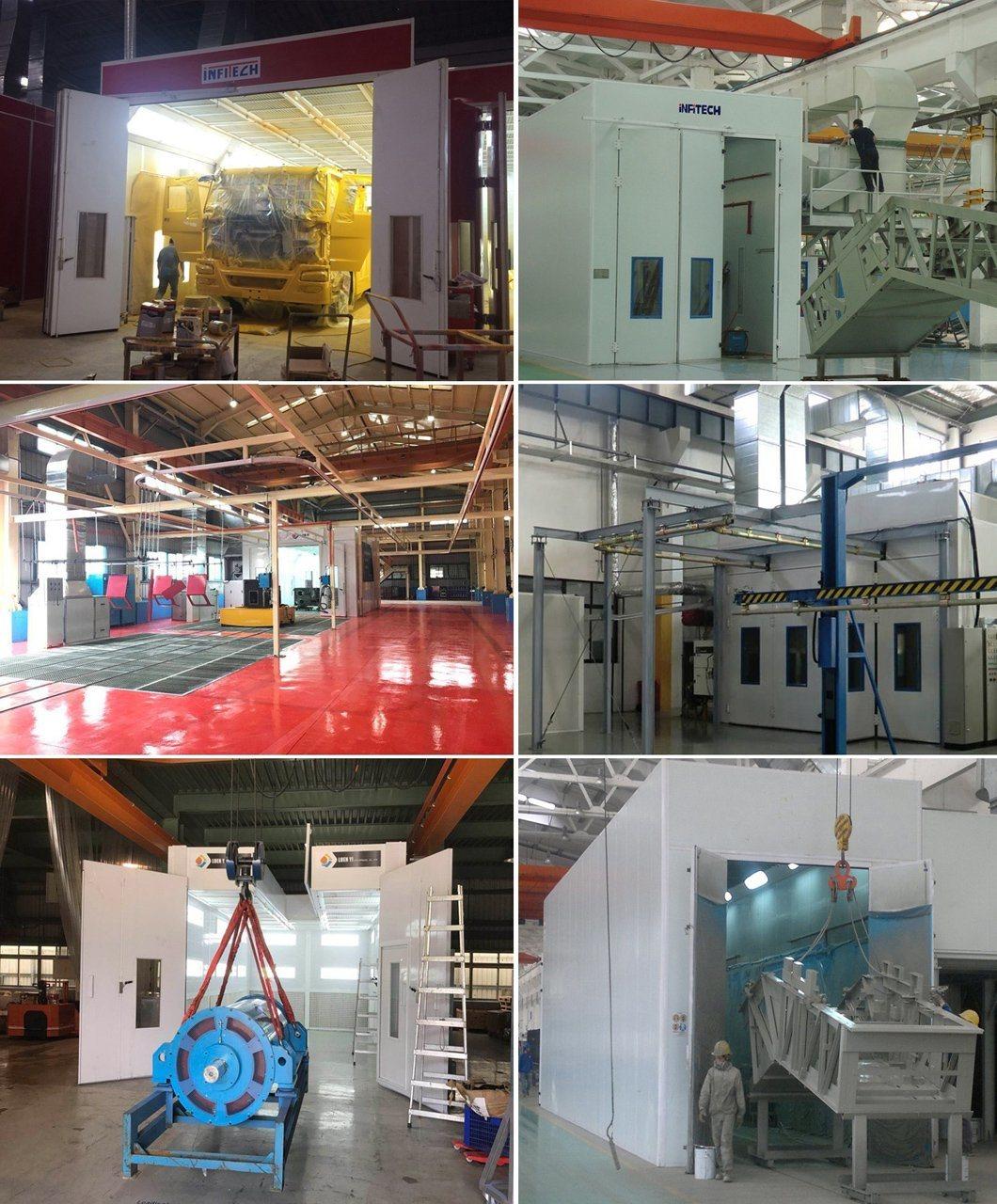

>>>Industrial solution



5) COMPANY PROFILE

INFITECH is professional manufacturer of CE standard paint booths. We offer complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and optimal solution that best suits specific requirements, while maximizes profits for shop owners. Attached please find our company profile for your reference.

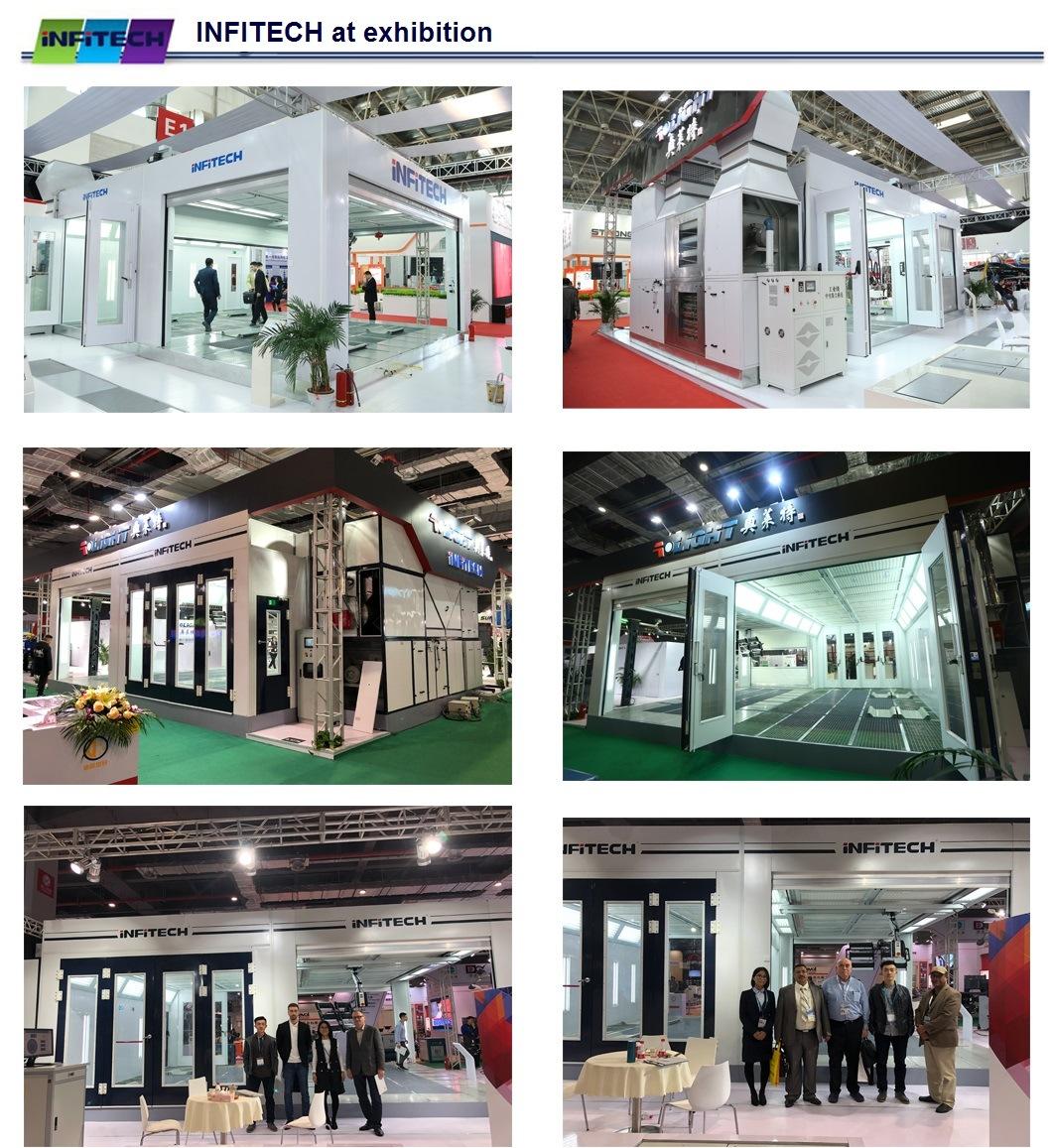

6) INFITECH AT EXHIBITION
