Infitech Open Front Industrial Cross Draft Woodworking Paint Spray Booth / Painting Box for Sale
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Cross Draft for Spray
- Paint Mist Treatment：Dry-type
Base Info
- Model NO.：IT-510
- Condition：New
- Front Opening：12000X5000mm (Wxh)
- Lighting：LED Lamp
- Brightness：> 900lux
- Filter：Pleated Andreae Filter & Fiberglass Filter
- Air Volume：18,000m3,H
- Empty Loaded Air Speed：+,- 0.68m,S
- Controls：Ce Standard Control Box
- Noise：<80dB
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：7000X12000X5000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets,Year
Description
INFITECH open front industrial cross draft woodworking paint spray booth / painting box for saleDesign standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009
OR
AS/NZS 4114.1:2003 Airflow Cross draft for spray Internal dimensions 7000×12000×5000mm (L×W×H) External dimensions 8100×12160×5800mm (L×W×H) Front opening 12000×5000mm (W×H) Structure Gantry structure made from 80 x 80 x 3.0mm square tubes
Walls: 1.5mm bended galvanized steel plate Lighting 33 sets, each 4 X 18W, 2,376W total Brightness > 900Lux Filters Pleated andreae filter & fiberglass filter Exhaust system 4 x 7.5KW, 1,460rpm, 380V, 50Hz, explosion-proof motor Air volume 4 x 37,000m3/h, 474Pa Equipment empty loaded air speed +/- 0.68m/s Noise <80db Controls CE standard control box Special item Rated power: 32.5KW
BS EN 60204: 2006 + A1: 2009
OR
AS/NZS 4114.1:2003
Walls: 1.5mm bended galvanized steel plate

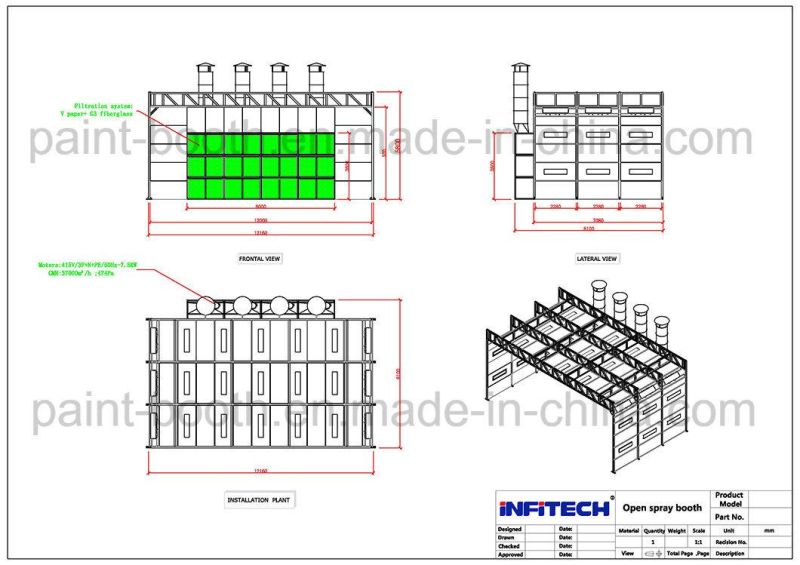

Product design details

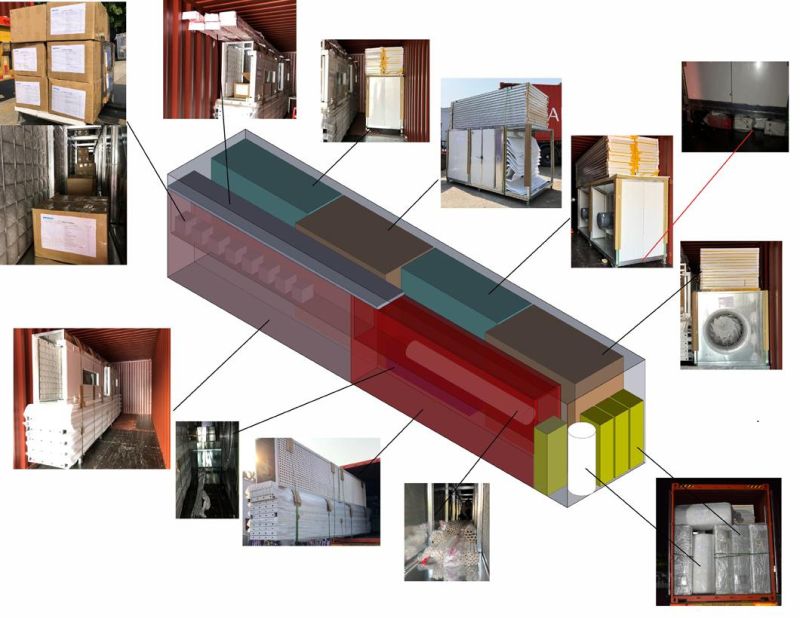

Packaging and loading
Company information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
