Infitech Auto Body Repair Work Station/Prep Bay for Sanding Cars or Parts for Painting
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Paint Mist Treatment：Dry-type
Base Info
- Model NO.：IT-503
- Condition：New
- Plenum Height：600mm
- Walls：50mm Rock Wool Panel
- Lighting：LED Lamp
- Brightness：>720lux
- Filter：High Efficiency Filters
- Fan：Direct Drive Fan, 5.5kw Motor
- Air Volume：18,000m3,H
- Empty Loaded Air Speed：+,-0.15m,S
- Controls：Ce Standard Control Box
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：8000x4000x2800mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets,Year
Description
INFITECH auto body repair work station/prep bay for sanding cars or parts for painting Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 8000 x 4000 x 2800mm (L X W X H) External dimensions 9860 x 4000 x 3460mm (L X W X H) Plenum height 600mm PVC soft Curtains 8200x2700mm on 8m side; 4200x2700mm on 4m side Ceiling lighting 10 sets, each 4 X 18W, 720W total, LED lamp Brightness >700LUX Purification Pre-filter, ceiling filter, floor filter Air intake Direct-type turbine fan, 5.5KW, SIEMENS motor Air exhaust Direct-type turbine fan, 5.5KW, SIEMENS motor Air volume 18,000m3/h Empty loaded air speed +/-0.16m/s Controls CE standard control box Special items Electrical and tool cabinet Rated power 13KW
Features
BS EN 60204: 2006 + A1: 2009
Features
| Airflow • Full downdraft • Controlled airflow ceiling | Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum • Full grids, 500mm high basement to be constructed by customer |
| PVC soft curtains • Fire-resistant • Grey color at both ends, transparent in the middle | Air intake & exhaust • Intake and exhaust motors, 5.5kw, SIEMENS motor |
| Filtration • Pre-filter: G3 grade pre-filter plate filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters | Controls Functions: Sanding, painting, lighting, emergency stop switch, failure indication, motor over-load and over-current protection |

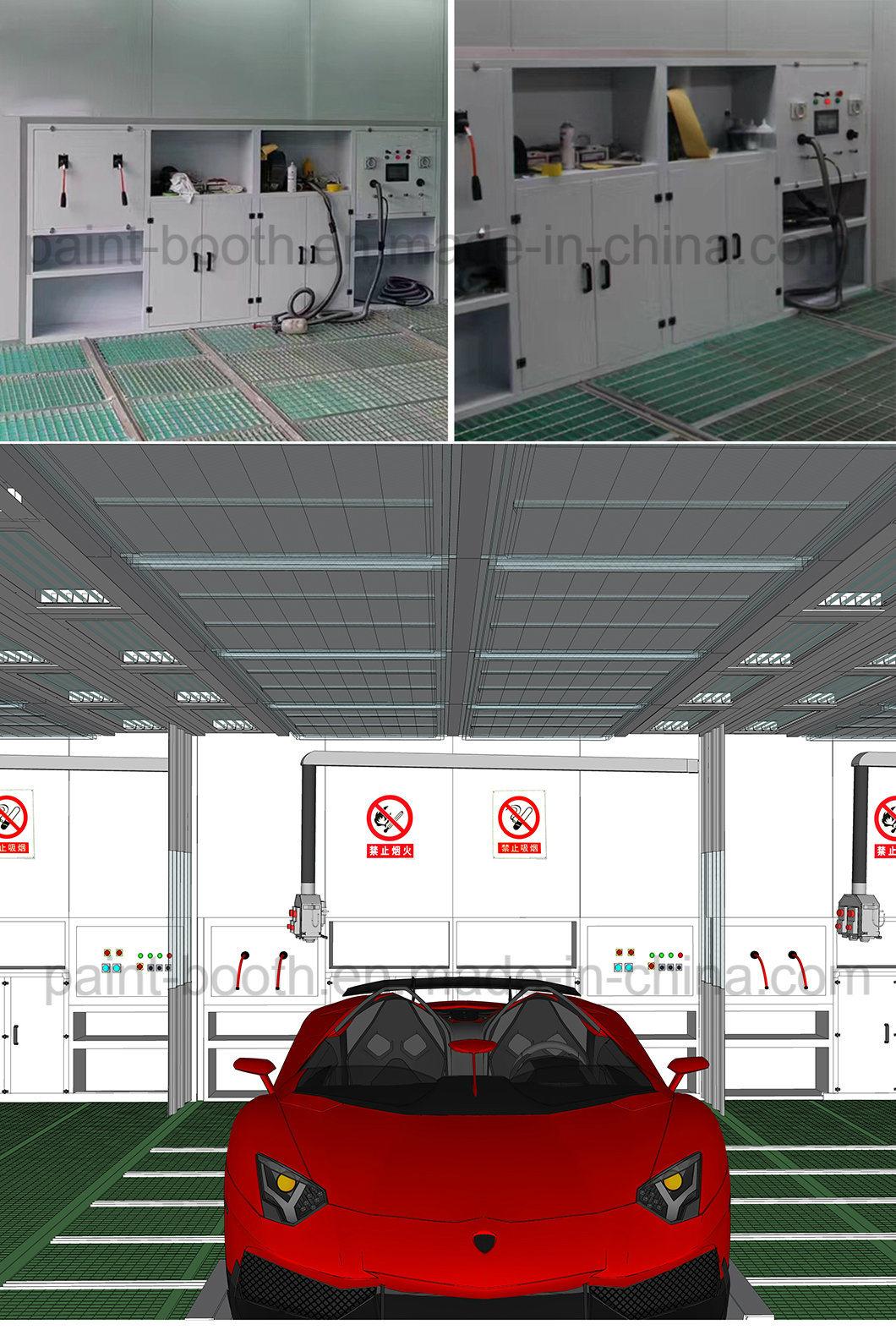

| Electrical & Tool cabinets • Electrical cabinets specially designed for preparation and sanding • 2 x 380V 16A power supply, 2 x 220V power supply • 2 interfaces for compressed air | 5.5kw vacuum dry sanding machine • High vacuum host adopts vortex type industrial motor • Automatic constant pressure frequency control, energy-saving • The host starts when the tools start, and delay stop when the tools stop. • Cleaning method: automatic frequency conversion, automatic pulse cleaning |
Product details
Packaging and loading

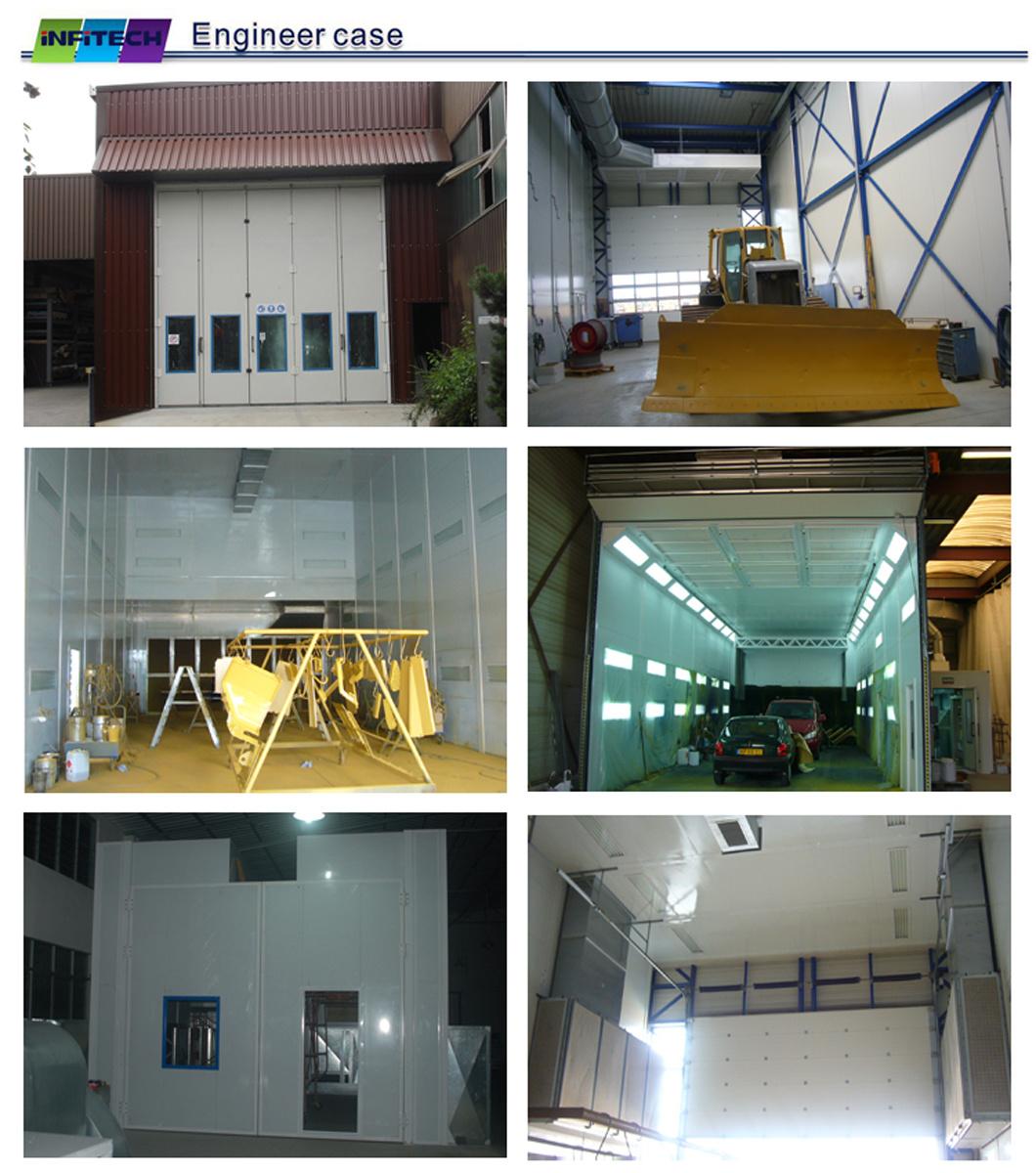

Engineering case
Company information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
