2018 Hot Sale Environmental Customized Spray Booth with Infrared Heating for Car/Auto (IT-F501)
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
Base Info
- Model NO.：IT-F501
- Paint Mist Treatment：Dry-type
- Condition：New
- Product Name：Infitech Customized Spray Booth
- Key Word：Customized Spray Booth
- Voltage：380V,50Hz, Your Special Voltage Is Acceptable
- Heating System：Infrared Ray, 12 Units , 3*1kw,Unit
- Brightness：>800 Lux
- Fan：Direct-Type Turbine Fan,1*5.5kw
- Empty Loaded Air Speed：0.18m,S
- Rated Power：50kw
- Warranty：2 Years
- Transport Package：Goods Packed by Polyfoam and Loaded on Metal Frame
- Specification：6900*4000*2800mm(L*W*H)
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：500 Sets,Year
Description
BS EN 60204:2006+A1:2009
Red: failure alarm ; Green:Normal operation , machine is operating ; Yellow : standby , idle
Features
Entrance door
• 3-wing entry doors with durable rubber for airtight seal
• 0.6mm white color steel plate
• With tempered observation window on all doors
• Heavy duty handles, 3 hinges per door leaf
Cabin structure
• Standard modular design, European ladder structure for the ceiling
• With high strength, easy to install
Lighting system
• Accessible from outside the booth
• IP55 protection grade
• 45 degree angled ceiling lights create virtually shadow-free environment
Intake & Exhaust System
• Non-spark fan
• Motor and fan are completely separated
• With cylinder-drive paint-bake conversion damper
• Direct-drive fans

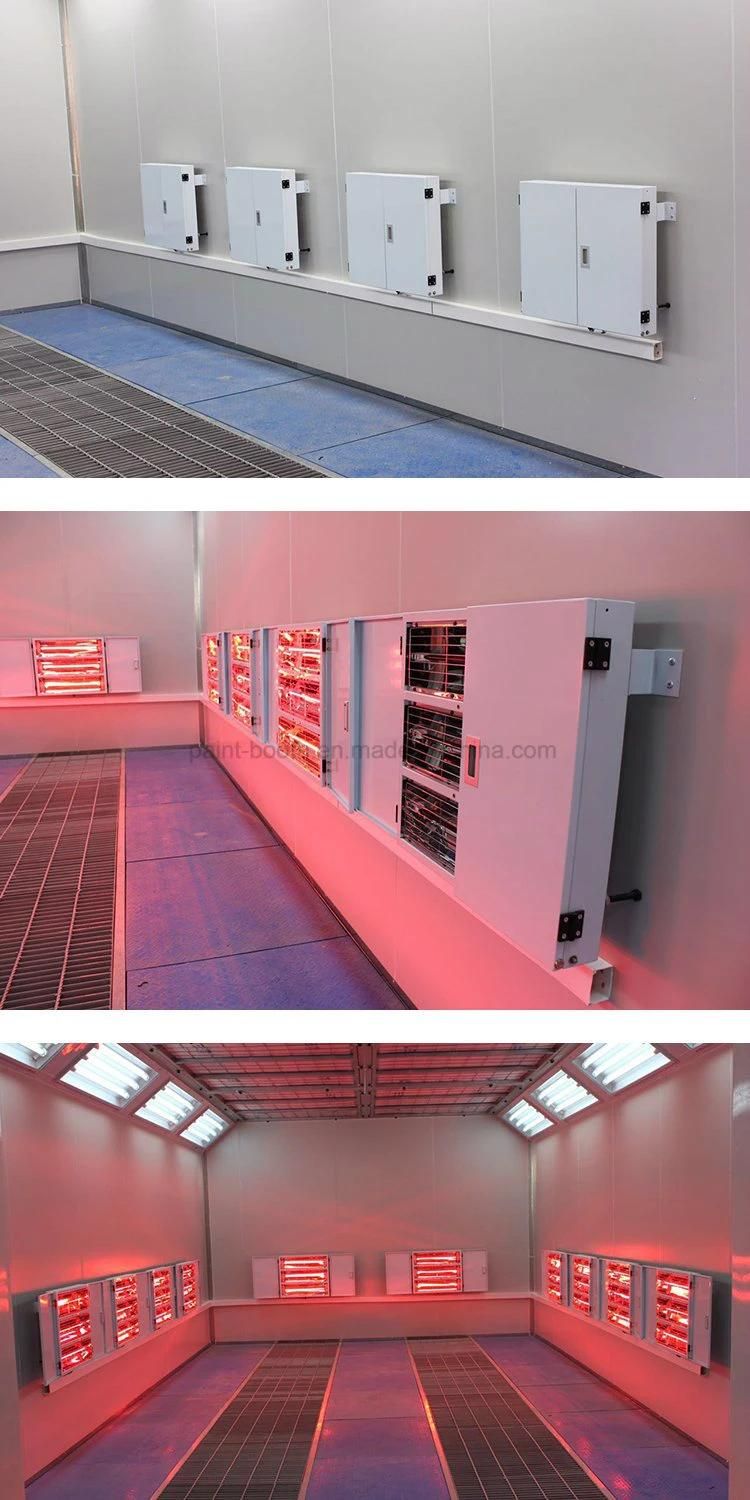

Infrared heating system• Infrared ray lamps
3 x 1kW/unit, size: 585 x 80 x 500MM per set
The service time of the lamps can last as long as 5000 hours.
Each fixture has a door, which keeps lamps off paint in painting phase.
• Control system: Microcomputer control system, touch button for the panel, stable and convenient to use.
• Temperature control
When it reaches the set temperature, the heating system stops working automatically; when the temperature falls down below the set temperature, the heating system starts working automatically.
• Time control: The baking time can be set in advance.
• Group control: Every unit works individually or 12 units work together.
• Power adjustment
The control box is installed with silicon controlled rectifier, which can adjust the heating power. When electricity power is not enough or no need to increase the temperature quickly, the operating power of the lamps can be turned down (10KW - 36KW).
• Automatic slow start function
Control system
• Conforms to EU standard EN13355.
Product details

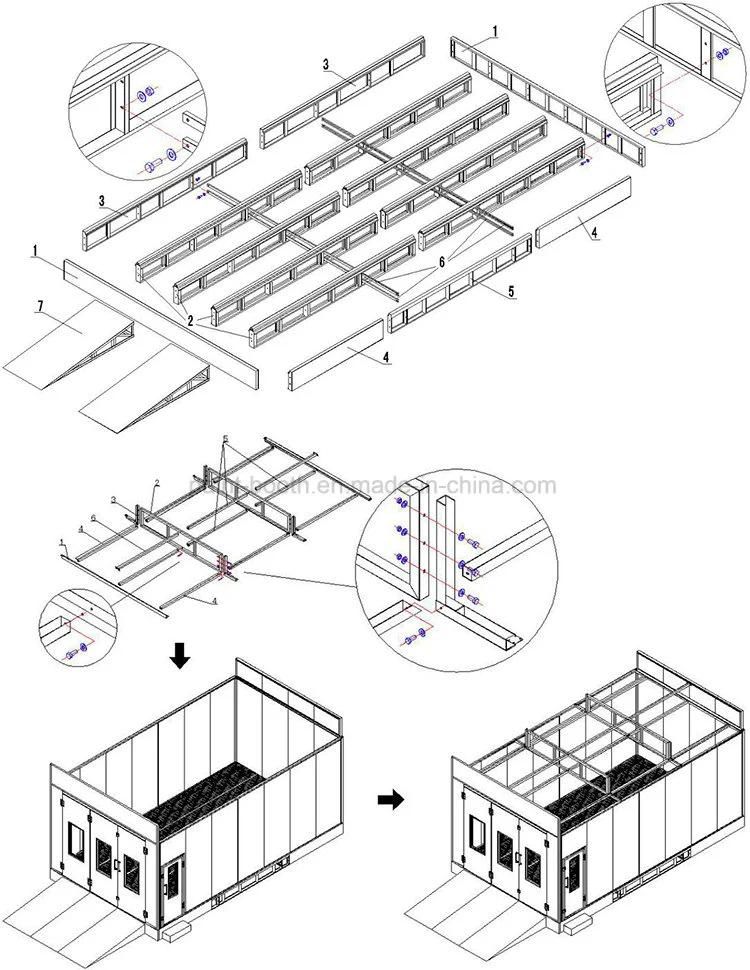

Basement / Cabin structure

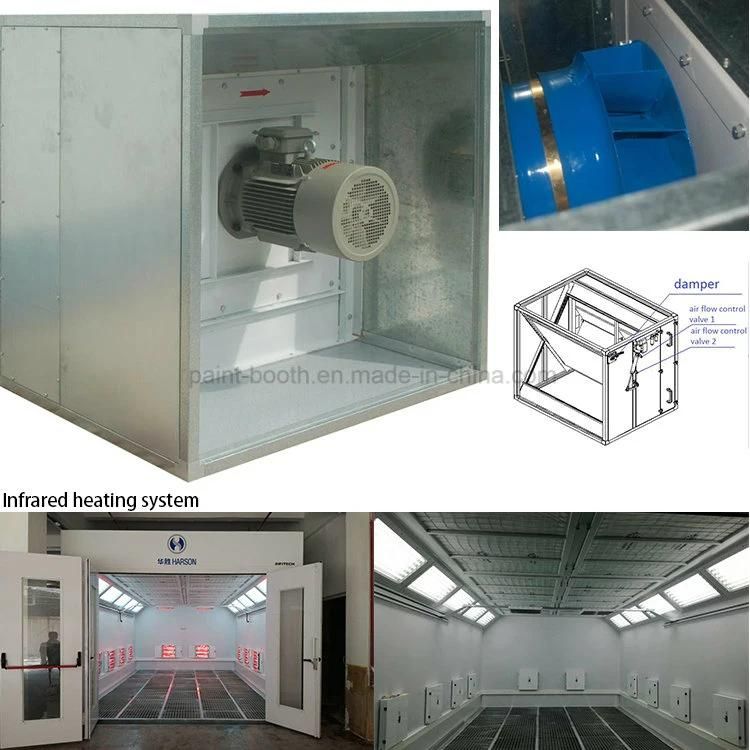

Intake & Exhaust System

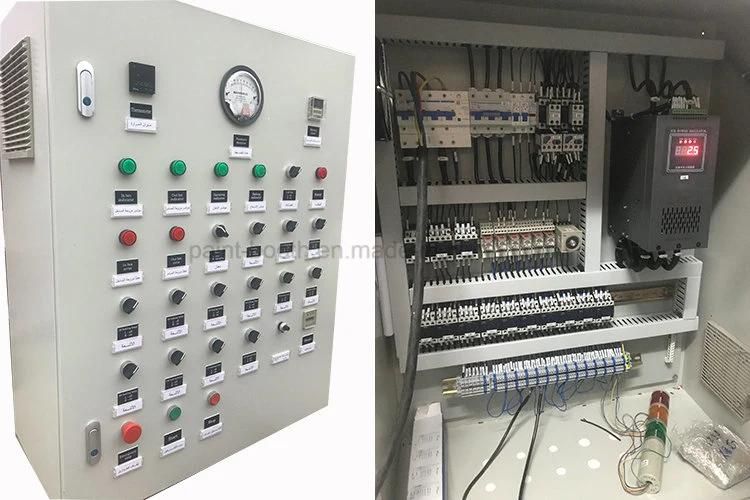

Control system
Engineering Case

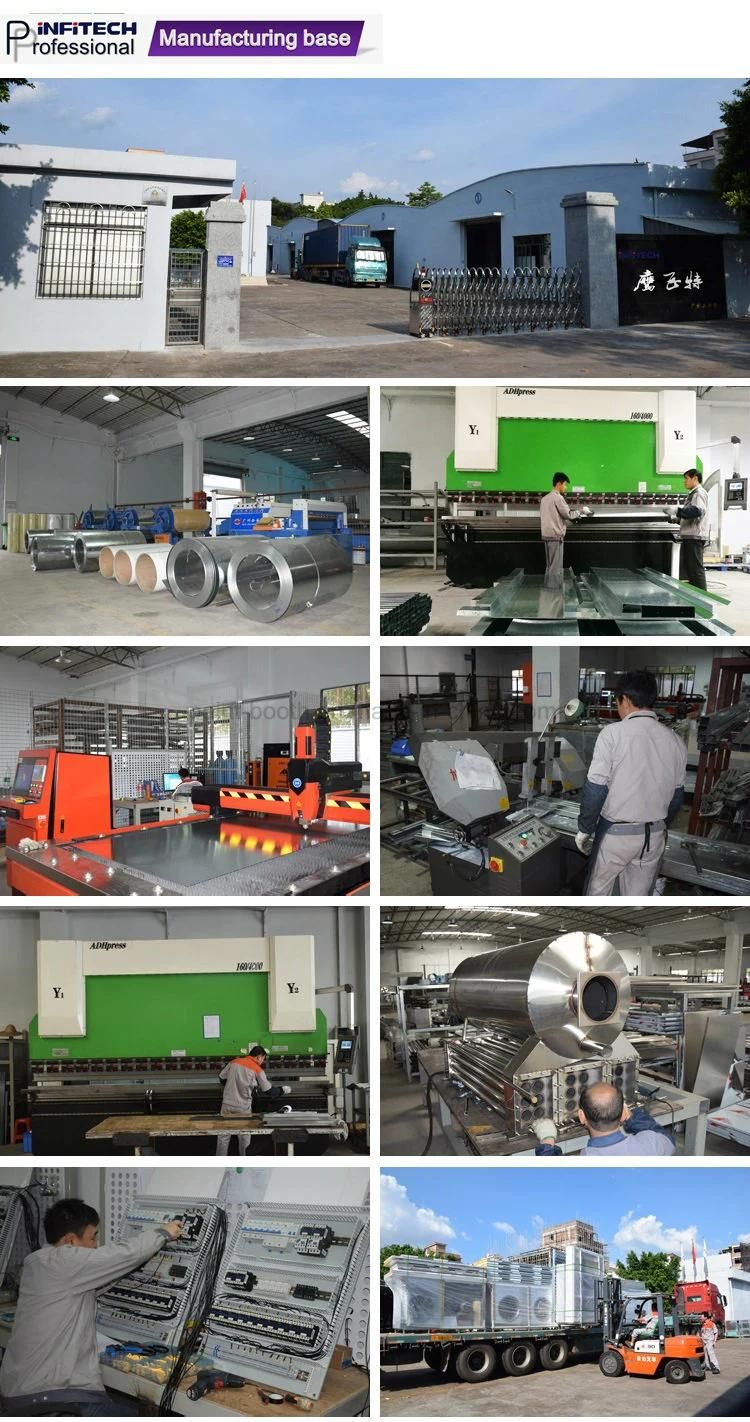

Company Information
Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.
