Infitech Automobile Maintenance Car Care Car Polish Painting Baking Cabinet Spray Paint Chamber
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
Base Info
- Model NO.：IT super 701
- Heating Mode：Gas
- Paint Mist Treatment：Dry-type
- Condition：New
- Product Name：Painting Baking Cabinet Spray Paint Chamber
- Usage：Car Painting and Baking
- Key Word：Paint Chamber
- Voltage：380V,50Hz
- Fan：Direct-Type Turbine Fan,
- Empty Loaded Air Speed：+,-0.27m,S
- Lighting System：LED Lamp
- Illumination：>1600lux
- Heating System：Gas Burner
- Warranty：2 Years
- Transport Package：Goods Packed by Polyfoam and Loaded on Metal Frame
- Specification：18000*4500*5000mm(L*W*H)
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets,Year
Description
INFITECH automobile maintenance car care car polish painting baking cabinet spray paint chamber Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 7000 X 4000 X 2800mm (L X W X H) External dimensions 7110 X 5560 X 3810mm (L X W X H) Entrance door 1 set, 3200 X 2700 mm (W X H) Personnel door 1 set, 800 X 2000 mm (W X H) Ceiling lighting 8 sets, each 6 X18W, 864W total, LED lamp Sidewall lighting 10 sets, each 2 X18W, 360W total, LED lamp Brightness >1,600LUX Filters Pre-filter, ceiling filter, floor filter, exhaust filter Air intake Direct-type turbine fan, 7.5KW motor Air exhaust Direct-type turbine fan, 7.5KW motor Air volume 28,000m3/h Empty loaded air speed +/-0.27m/s Air exchange times 6 times/min Maximum working temperature 80ºC Direct heating Gas burner Controls CE standard control box Rated power 18KW
Features

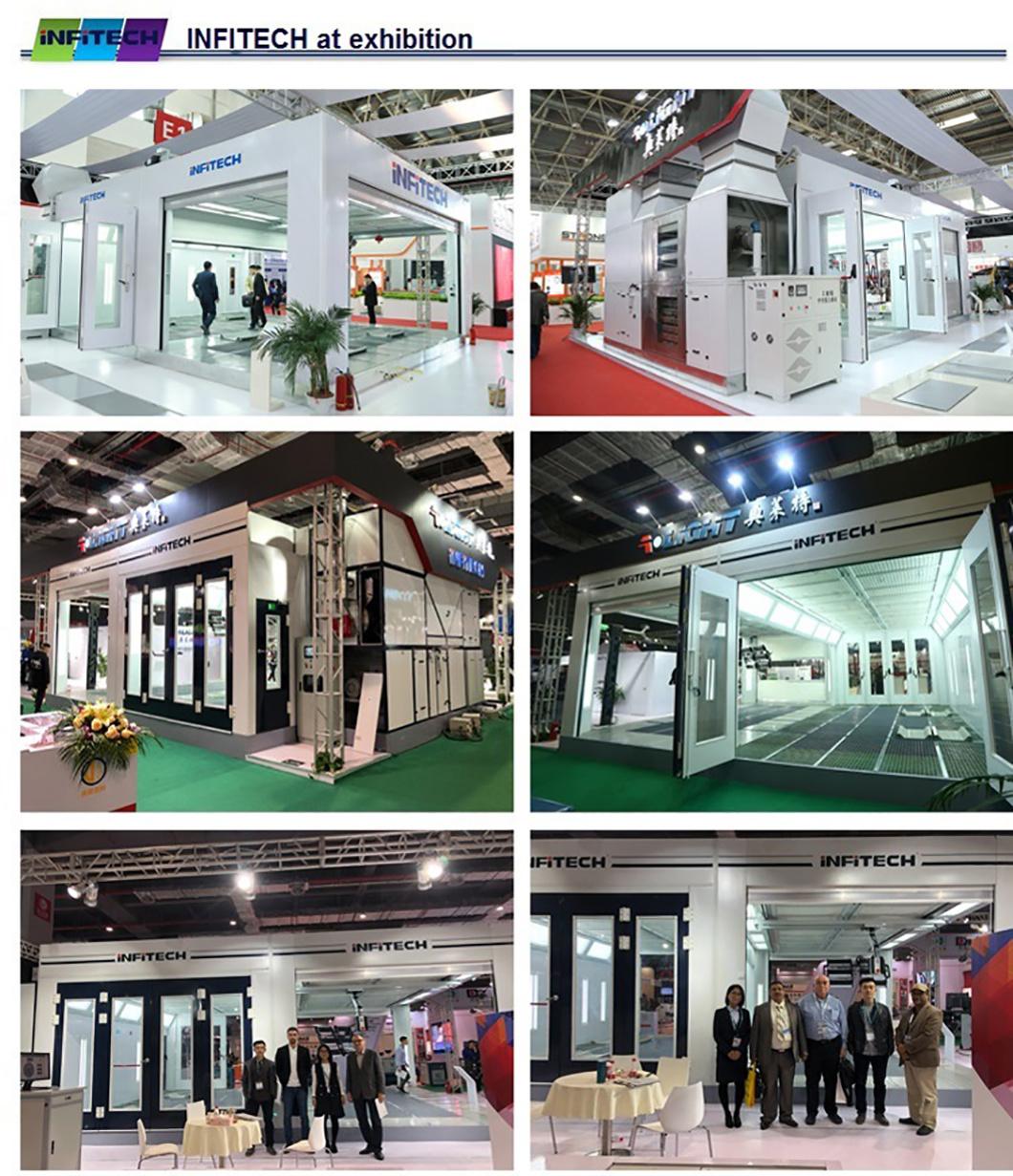

INFITECH at Exhibition
BS EN 60204: 2006 + A1: 2009
Features
| Airflow • Full downdraft airflow for spray and cure • Controlled airflow ceiling | Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum •350mm high basement, full grids |

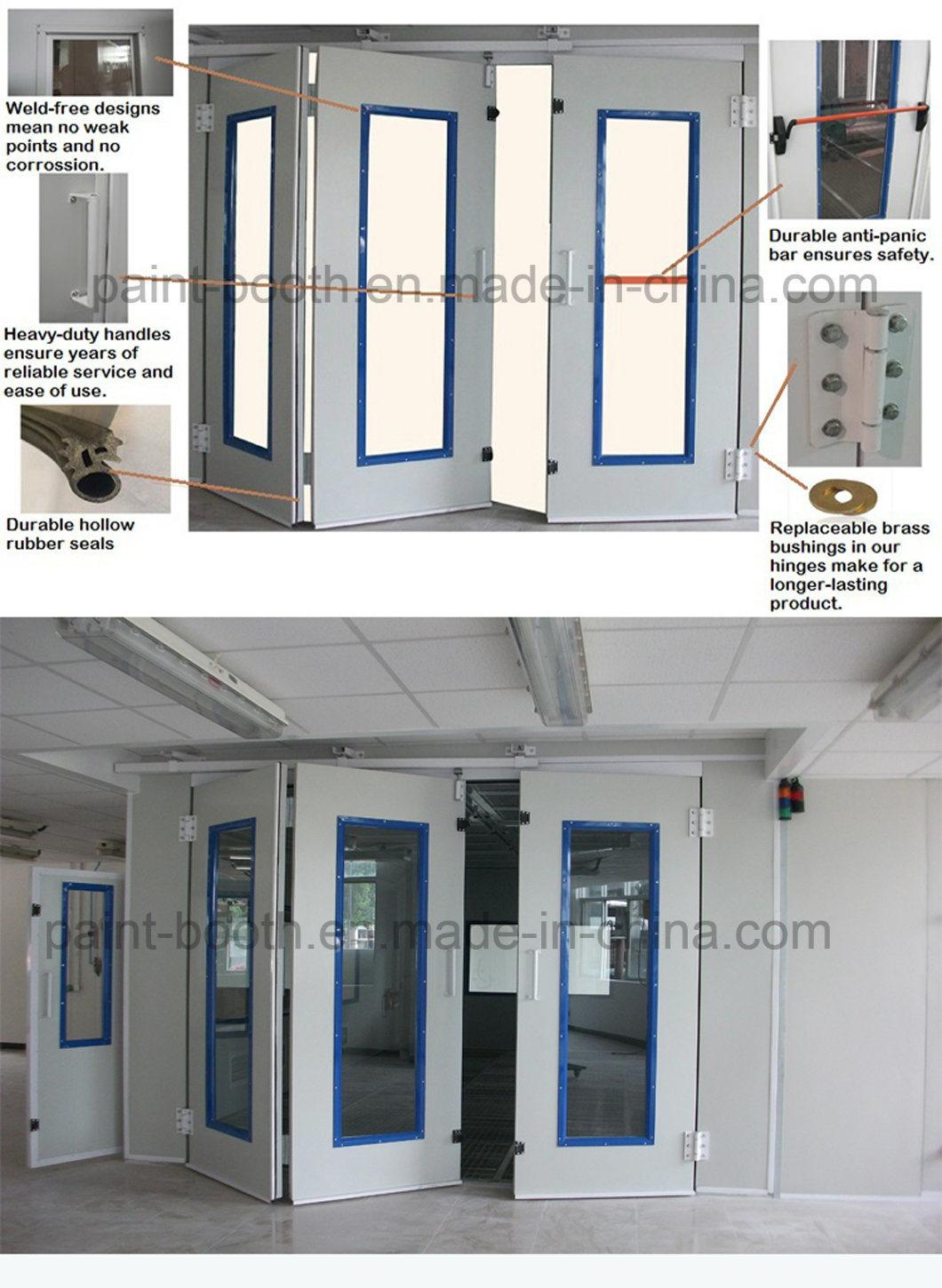

| Doors • 3-wing entry door with 3 observation windows • Personnel door with observation window | Heat • Intake and exhaust motors, 7.5kw, CE certified • RIELLO gas burner |
| Filtration • Pre-filter: G3 grade pre-filter bag filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters • Exhaust filter: Simple activated carbon filter mat, M type | Controls • PLC controller, pressure gauge Functions: Painting, heating painting, flash, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor over-load and over-current protection, fan and heating system interlock |
INFITECH at Exhibition
Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.
