Australia Standard Build-in Ramp Spray Booth / Paint Booth
Qingdao Hua Yushun Commercial Co., Ltd.- After-sales Service：on Line ,Locally
- Warranty：24 Month
- Type：Spray Booth
- Certification：CE
- Substrate：Sandwich Panel
- Brand：Captain
Base Info
- Model NO.：AS7006B-I
- Coating：Painting
- Airflow Direction：Cross-flow Type
- Heating Mode：Diesel
- Paint Mist Treatment：Wet-type
- Condition：New
- Inside Dimension：6900X3900X2700mm(Lxwxh)
- Outside Dimension：7000X5350X3400mm(Lxwxh)
- Main Door：3-Folded, 3000X2600mm(Wxh)
- Personal Door：1-Fold, 750X1800mm(Wxh)
- Wall Panel：50mm EPS, 0.426 Steel
- Ceiling Panel：0.8mm Galvanzied Steel Sheet
- Air Intake：1 Sets 7.5kw Turbo Fan
- Air Exhaust：1 Set 7.5kw Turbo Fan
- Damper：Pneumatic
- Basement：300mm High, 5 Rows Grids
- Ceiling Lights：32 PCS Ceiling Lights, LED Lights
- Ramp：Build-in Ramp
- Heating System：Italy Diesel Burner
- Total Power：16kw
- Color：Optional
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS, ISO
- Trademark：OEM,Captain
- Origin：Qingdao, China.
- HS Code：8424899990
- Production Capacity：196sets,Month
Description
Heating systemItalian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional) SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate Filter system Prefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter),
floor filter, exhaust active carbon filter Control system Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
limited-temperature device, most of electrical spare part is import, C.E standard Total power 16KW

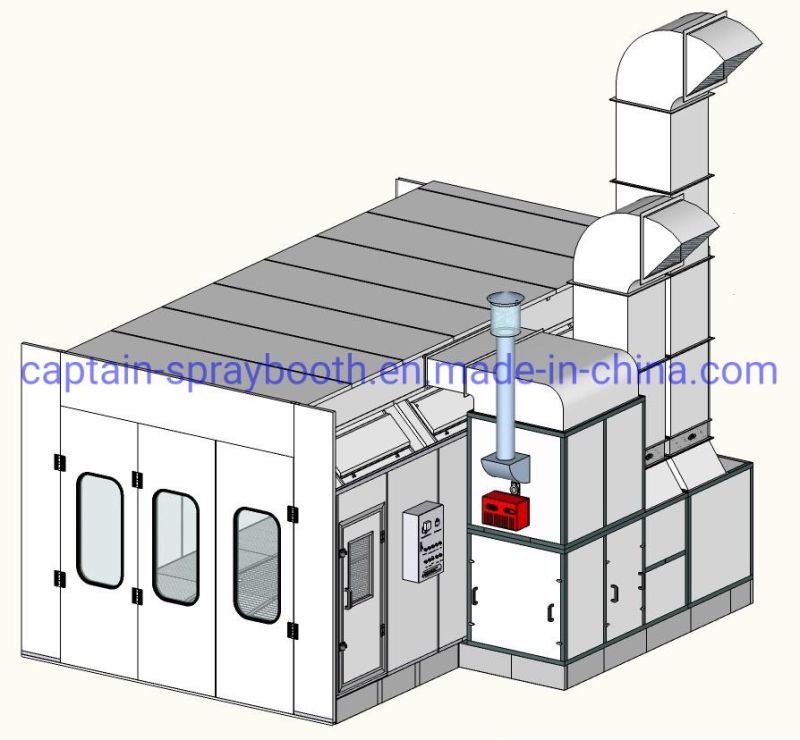

Design drawing:

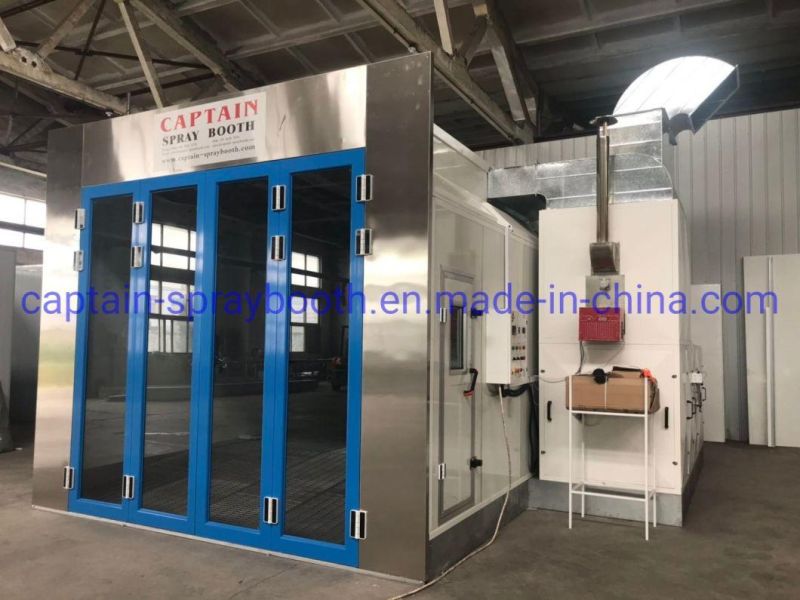

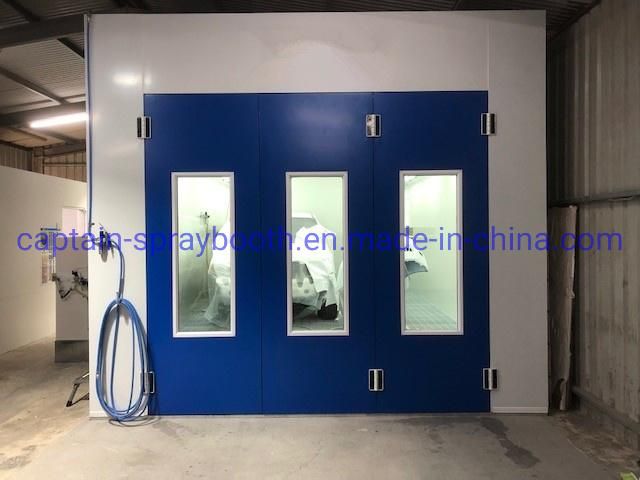

Appearance

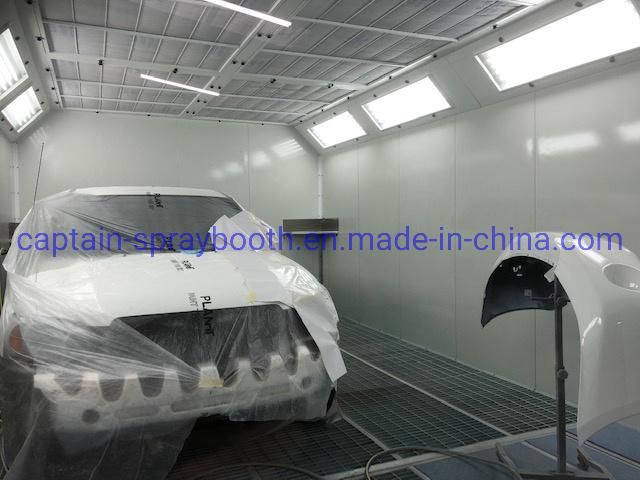

Inside view:

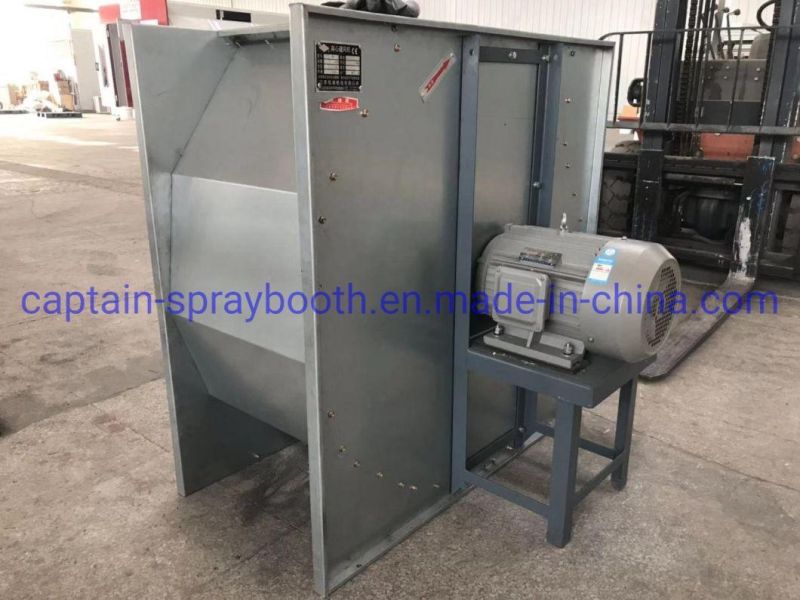

Fan box

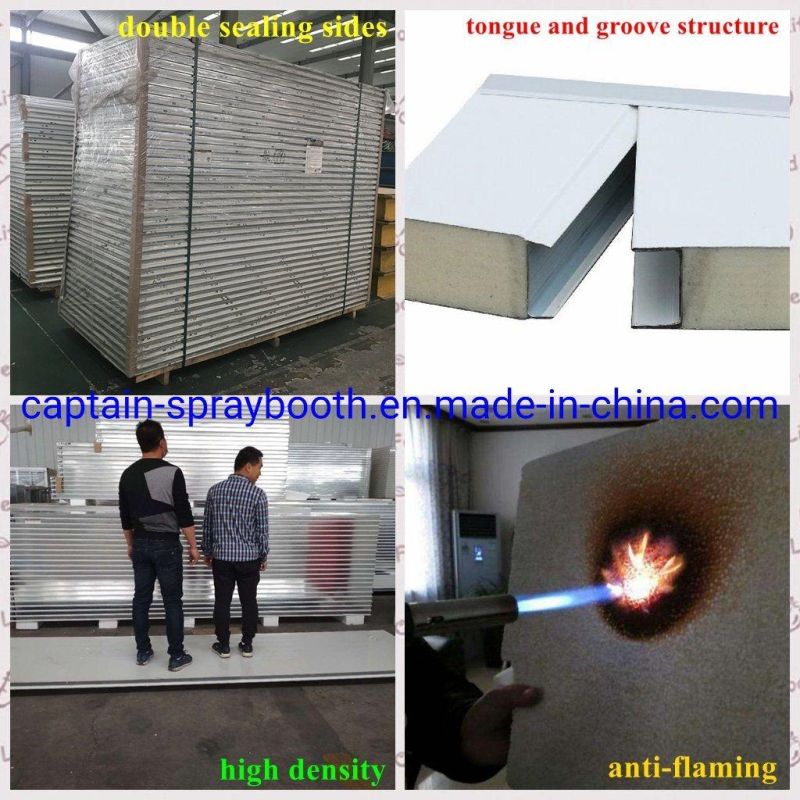

High strength wall panel
Stainless Steel heat exchanger

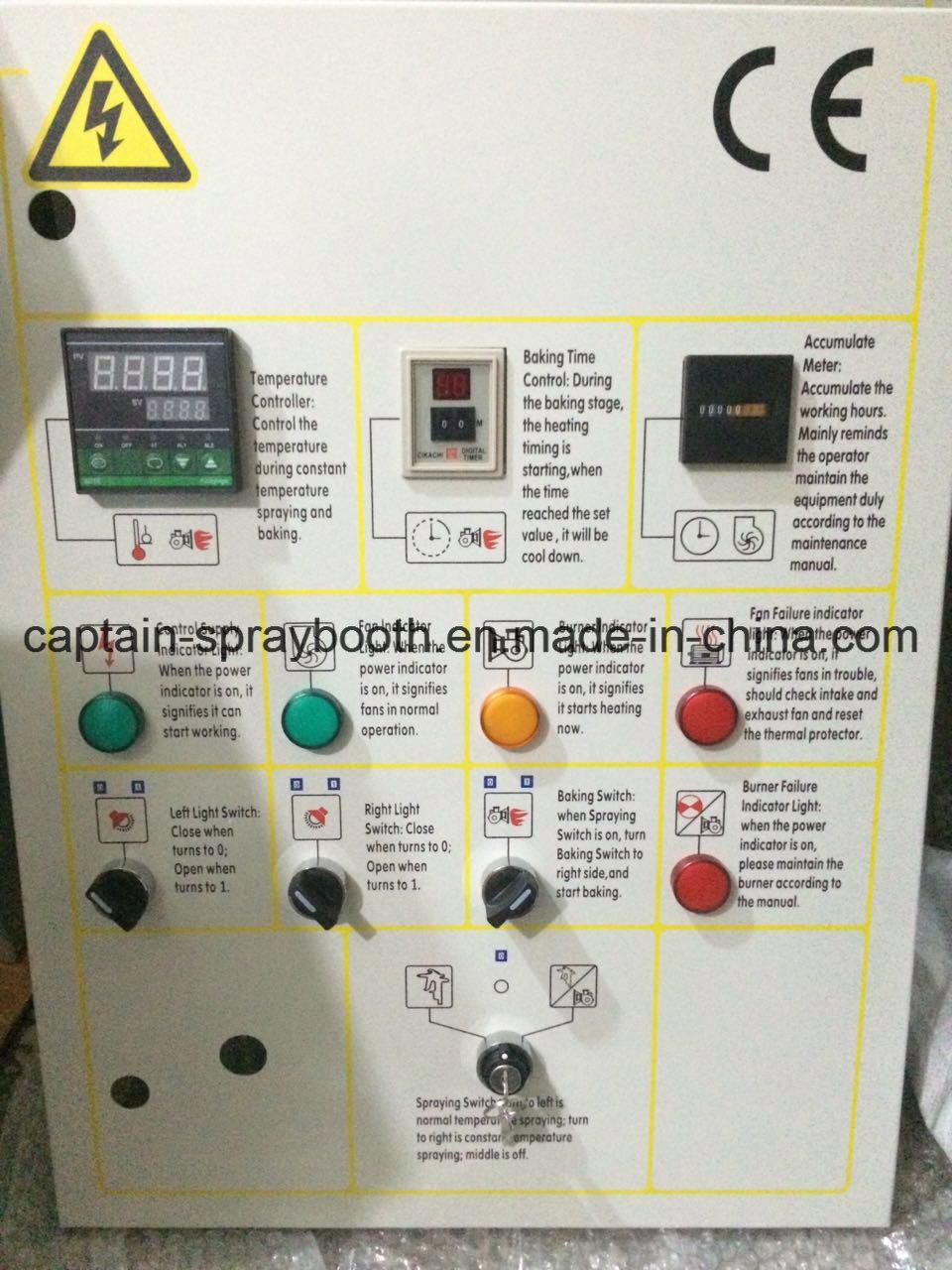

Control Box

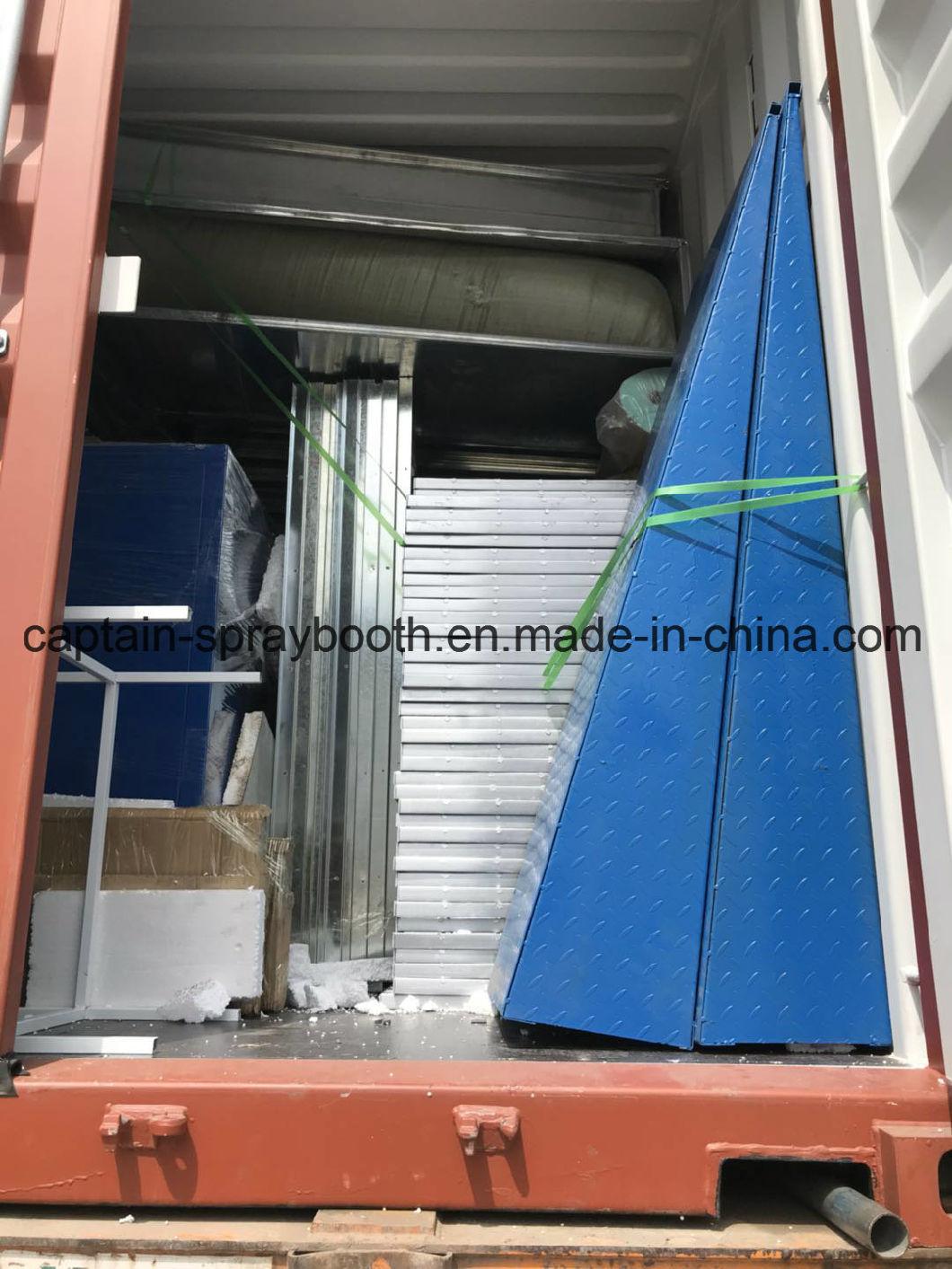

Package:

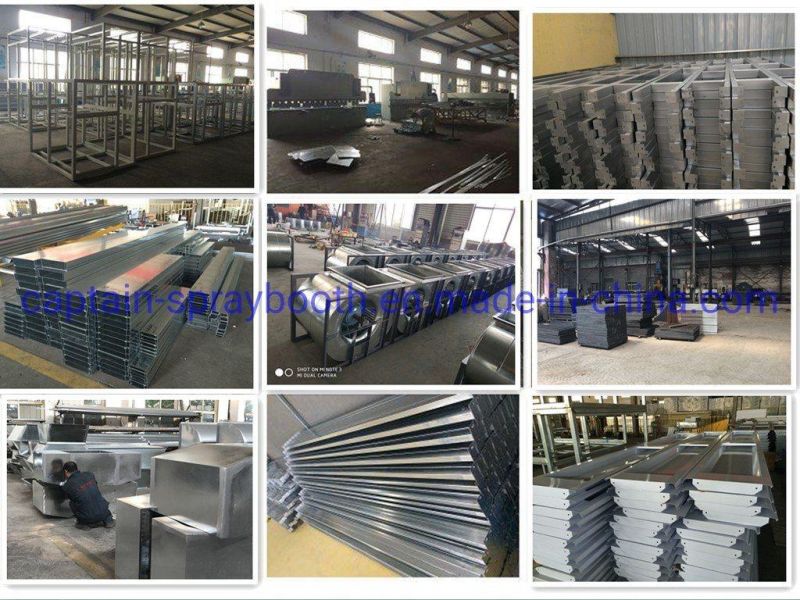

Workshop:
Installation Draw
highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate
floor filter, exhaust active carbon filter
lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
limited-temperature device, most of electrical spare part is import, C.E standard
Design drawing:
Appearance
Inside view:
Fan box
High strength wall panel
Stainless Steel heat exchanger
Control Box
Package:
Workshop:
Installation Draw
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
