New Design Scissor Auto Parks Accessories Car Parking Lift
Shandong Lift Machinery Co., Ltd.- Type：Four Cylinder Hydraulic Lift
- Lifting Capacity：3T
- Driving Type：Hydraulic
- Certification：CE, ISO, GS
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Thin Plate Type
Base Info
- Model NO.：SJG3-3.4
- Shearing Lift Type：Small Shear Type
- Condition：New
- Brand：Sdlift
- Design：Scissor
- Application：Vertical Parking Stair Lift Platform 2 Desk Car Li
- Safety Trip Bar：Yes, Under Platform
- Lifting Speed：3-6m,Min
- Motor：From Italy or Chinese Famous Brand
- Material：High Strength Manganese Steel
- Lift System：Hydraulic Motor Pump System
- Safe Device：Explosion-Proof Lock Valve
- Colour：Grey, Blue or as Your Request
- Transport Package：Iron Case or Plywood Case Package
- Trademark：SDLIFT
- Origin：Shandong China
- HS Code：84289090
- Production Capacity：5000 Set Per Year
Description
MODEL
LOAD CAPACITY
PLATFORM SIZE
LIFT HEIGHT
PIT DEPTH
WEIGHT
SJG2.5-3.5
2.5T
5.2m x 2.6m
3.5m
800mm
6300KG
SJG2.5-5
2.5T
5.6m x 3m
5m
750mm
6500KG
SJG3-3
3T
5.2m x 2.6m
3m
800mm
6100KG
Our factory accept customized according to customers requirements.

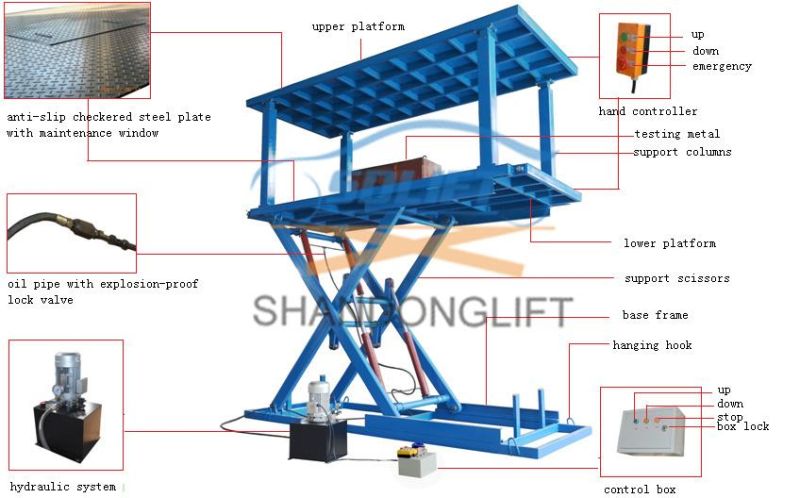

Parts Show :
Safety device:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Underground Garage Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Underground Garage Lift are passed 1.2 times loading test before leaving factory
Packaging and Shipment :
Welcome to our factory to Inspection or visit !
The Underground Garage Lift has passed CE, TUV, SGS certificate, also welcome to visit our factory on site by yourself. We can discussing and study with each other.
