Prep Bay/Preparation Bay/Car Lift/Car Jack/Two Post Car Lift for Auto Maintenance
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CCC, CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：IT-PRB-6100D
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Electric
- Paint Mist Treatment：Dry-type
- Condition：New

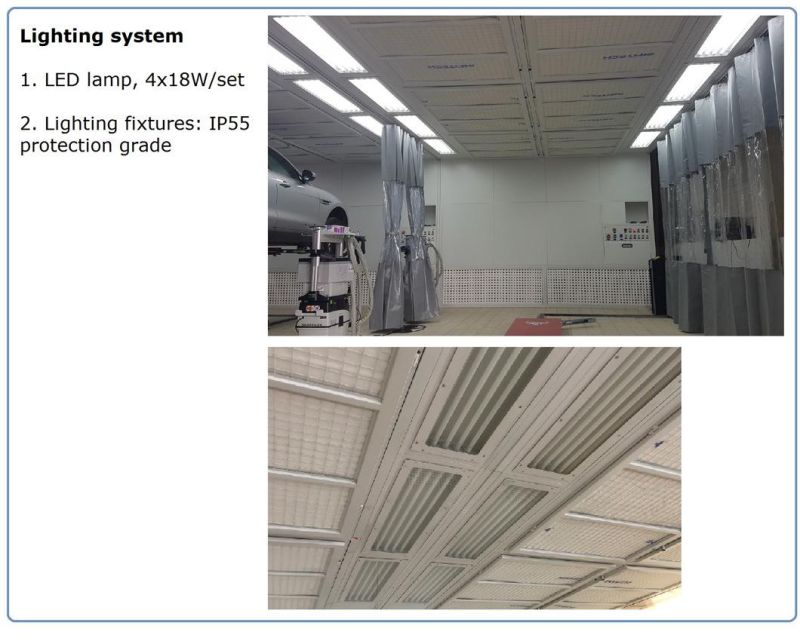

- Lamp：LED Lamps

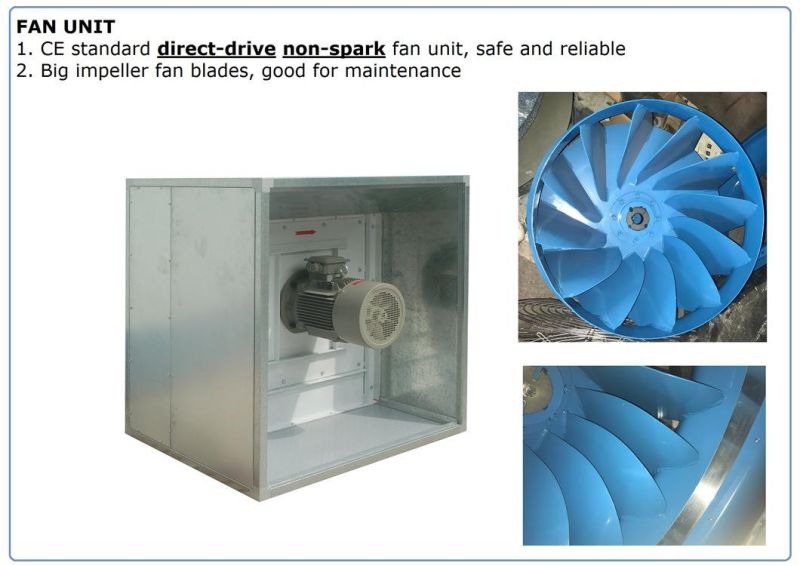

- Fan：Direct Drive, Intake and Exhaust Fan
- Motor：2X5.5kw, Siemens

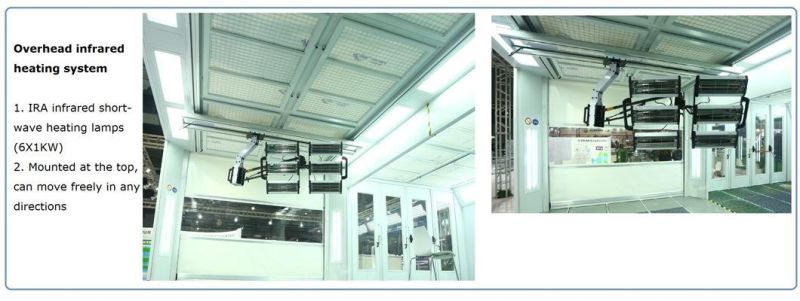

- Heats：Infrared Heating
- Brightness：>800lux
- Air Volume：20, 000m3,H
- Empty Loaded Air Speed：0.25m,S

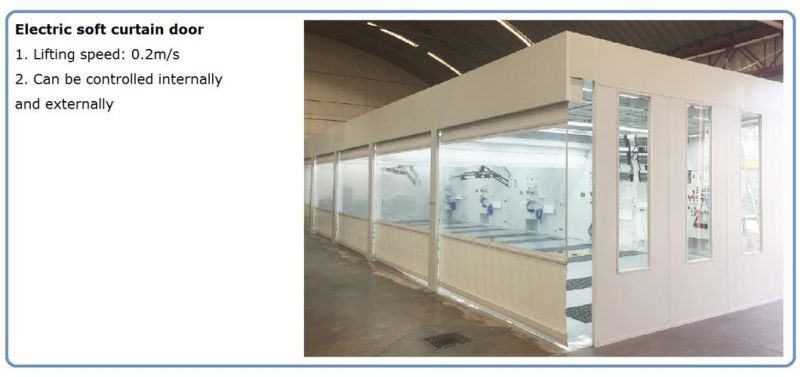

- Doors：Electric Soft Curtain Doors
- Rated Power：20kw
- Transport Package：Cargo Packed on Pallets Handled by Forklifts
- Specification：6100*3550*2800mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
Prep Bay/Preparation Bay/Car Lift/Car Jack/Two Post Car Lift For Auto MaintenanceITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009

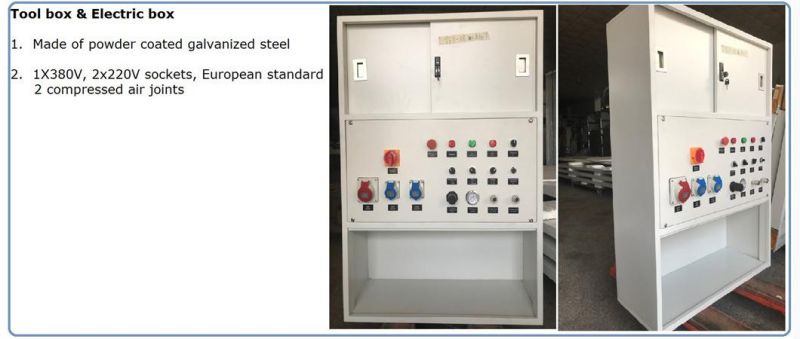

BS EN 60204: 2006+A1:2009Internal dimensions 6100 X 3550 X 2800mm (L X W X H)External dimensions7250 X 3650 X 3260mm (L X W X H)AirflowDowndraftPlenum400mm high, suspended or supported by columnsExtractionThrough pitExtraction area6.8m2Entrance door3350x2400mm (WxH), 1 set, electric soft curtain doorDivider door5860x2400mm(WxH), 1 set, electric soft curtain doorCeiling lights (LED)8 sets, each 4 X 18W, 576W totalBrightness>800LUXFiltersHigh efficiency ceiling filter, floor filter, exhaust filterIntake / Exhaust unitDirect-type turbine fan, 2x5.5KWAir volume20,000m3/hEmpty loaded air speed0.25m/sHeatsOverhead infrared curing lamp, 6x1kw/setTool box & electric boxIntegrated in the back wallInverterSCHNEIDER inverter as optionRated power20KW
3. Details
4. Packaging and loading photos

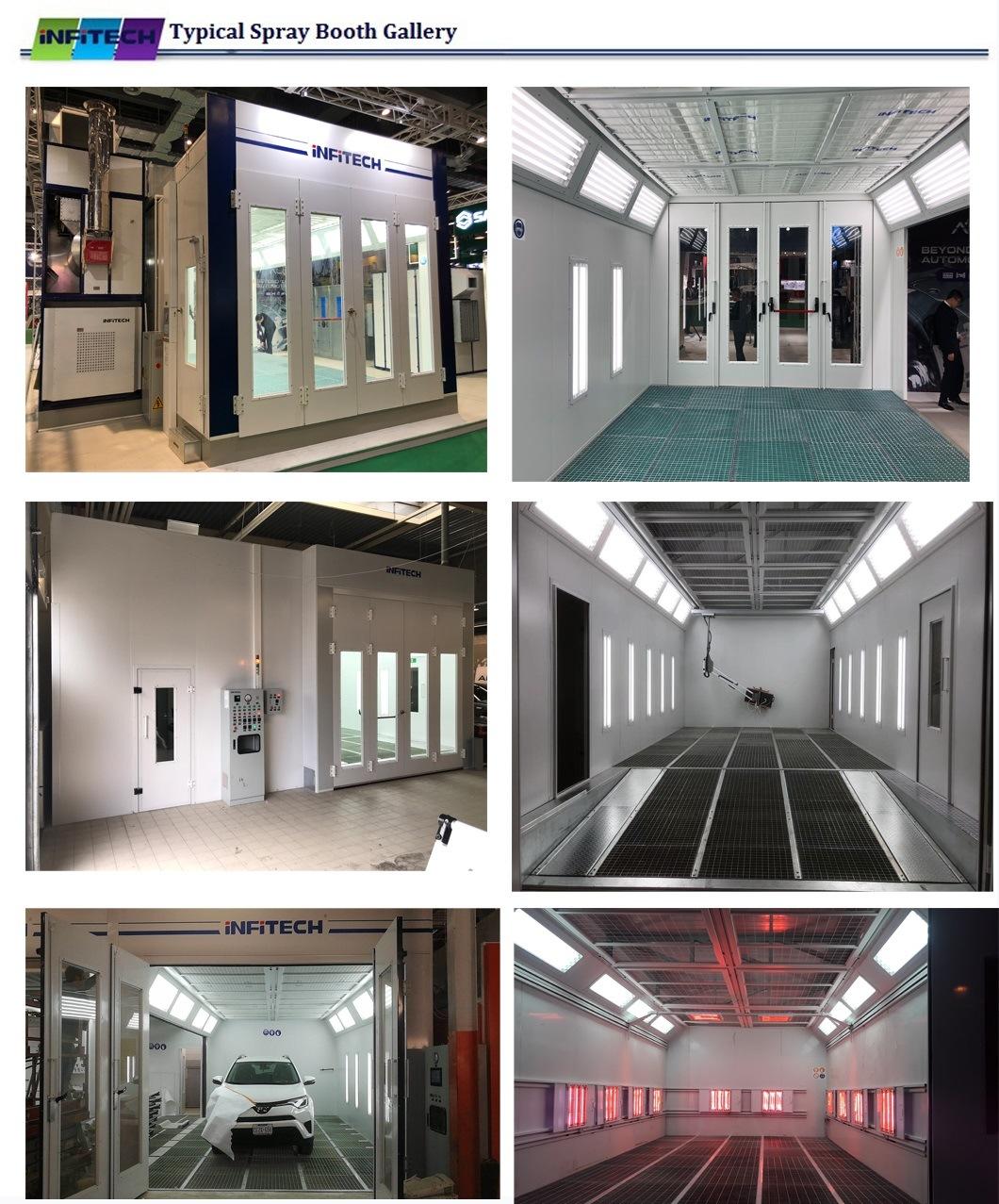

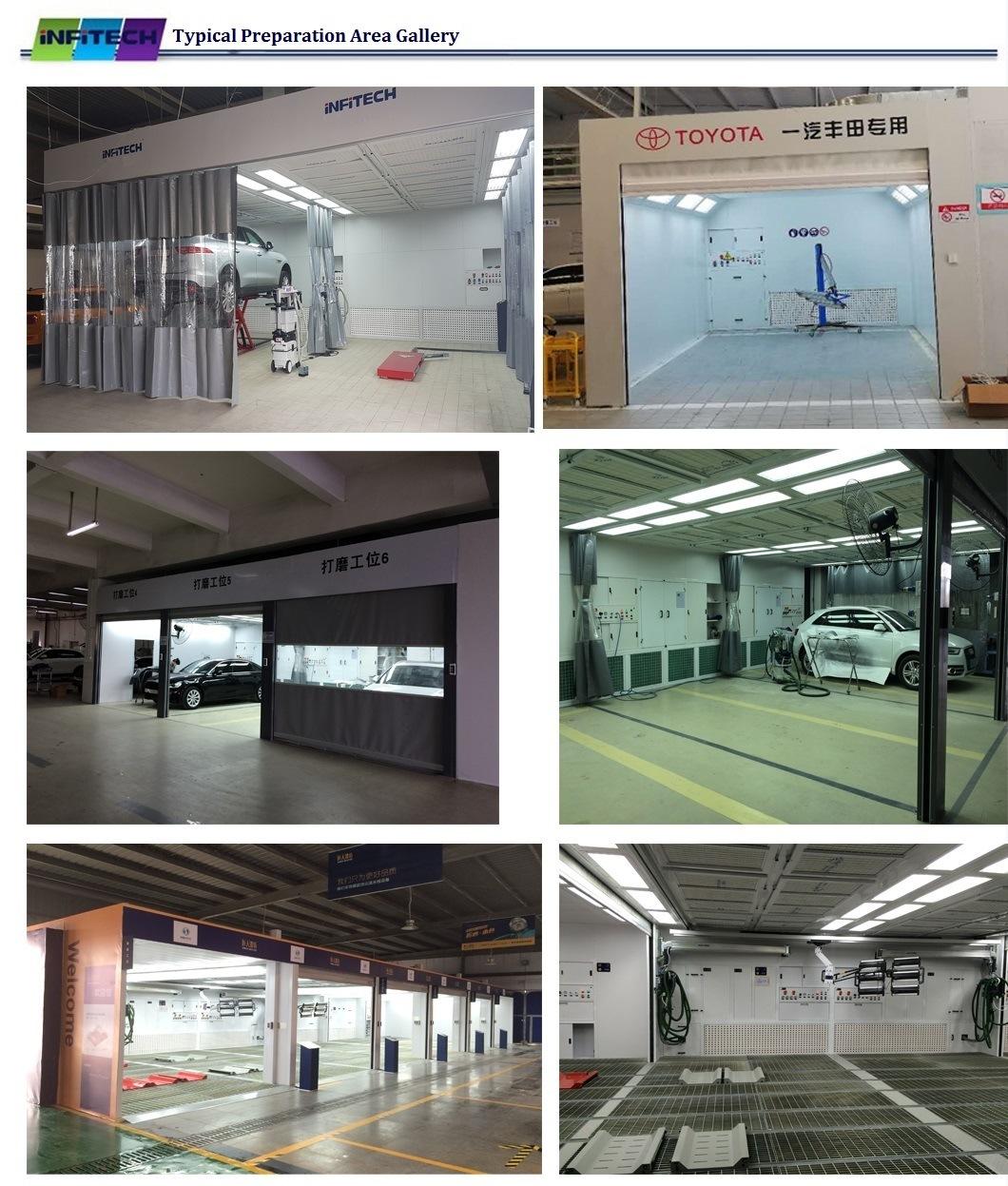

5. Typical projects
6. Factory photos
