• Transport Package：Carton Box
• Origin：China

Basic Info.

Transport Package Carton Box Origin China

Product Description

Best Quality VAS 5054A With OKI Chip VW ODIS V7.2.1 Plus Dell D630 laptop ready to Use

This is full version VAS 5054A software odis V7.2.1 installed on Dell D630 laptop, you can operate directly.

VAS 5054A Features:
1. Full chips version Support UDS Protocol and PWM
2. Support Language: English (other language database not full, can not installed successful)
3.Supported Car Models: VW, AUDI, SKODA, SEAT
(If you want CD of Bently and Lamborghini, please leave message when you place the order on our website)
4.Bluetooth Version
5. The latest version is 7.2.1, It just supports windows 7 32bits. Not support windows xp.



VAS 5054a Full Chips diagnosis and programming tool for VAG vehicles, come with ODIS software V7.2.1 support 2015.12 all Volkswagen, Audi, Seat, Skoda, Bentley, Lamborghini. this vas interface vas 5054a is full version with VW ODIS V3.0.1 installed on High Quality laptop Dell D630, You just need to connect the VAS5054A head to the car, and use the bluetooth to connect to this Dell computer, then you can operate directly, no need to install.

VAS 5054A V7.2.1 Bluetooth version:

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.


VAS 5054A V7.2.1 Specification:

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.

The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

Dell D630 laptop configuration:
Condition: Used: for car Diagnostic software has been installed previously.
Note: The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
Brand: D630
Type: Laptop/Notebook
Screen Size: 14.0
Memory (RAM): 2000 Processor
Primary Drive: DVD+/-RW Processor Speed: 2.0 GHz
Processor Configuration: Dual Core
RAM: 4G

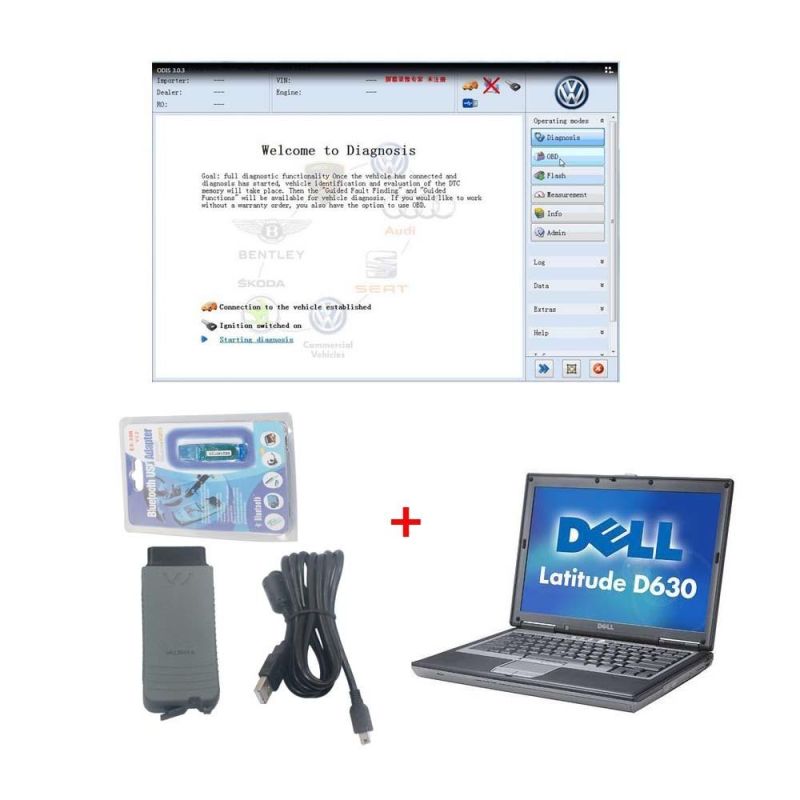

VAS 5054A will Dell D630 Package list:
1pc x VAS 5054A Interface
1pc x USB Cable
1pc x USB Bluetooth Adapter
1pc x Dell D630 laptop with VAS5054A software odis installed
