• Model NO.：USPRC0706C 008
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：6900X3900X2600mm(Lxwxh)
• Outside Dimension：7000X5500X3250mm(Lxwxh)

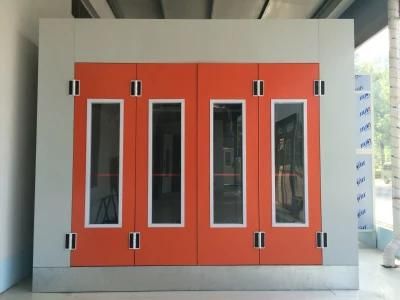

• Main Door：3-Fold, 2800X2500mm(Wxh)
• Personal Door：1 Fold, 650X1800mm(Wxh)
• Wall Panel：50mm Rock Wool with 0.6mm Steel
• Basement and Floor：2 Rows Grilles, 3 Rows Diamond Plate
• Lights：24PCS Ceiling Lights
• Intake Fan：1X7.5kw Trubo Fan
• Exhaust Fan：1X5.5kw Centrifugal Fan
• Heating System：Italian Riello G20 Diesel Burner
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• Production Capacity：96sets,Month

Booth SystemWall panel :Rock Wool material, tongue and groove interlock construction,
 hickness: 50mm, 0.6mm steel plateBasement and floor:complete steel assemble, 2 rows of grids,
 2 rows of indented plates, galvanized. 2pcs of galvanized ramps,
 loading capacity of galvanized grating is 650 kg/wheelLighting SystemCeiling light: 3Pcs X8units=24PcsX36WGlassAll window and light cover by ovenproof toughened glassGenerator setting typeBack upper intake air, back upper exhaust air, aluminum alloy frame, coated steelVentilation SystemIntake fan:1Pc turbo fan, 7.5KW motor,  C.E, direct drive,
 air capacity:25000m3/h Exhaust fan: 1Pc 5.5KW double-intake centrifugal fan, air capacity:15000m3 /hHeating systemItalian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional)SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
 highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
 Reasonable structure, safe and reliable, big heat exchanging area, high heat
 utilization, more than 90% heat exchanging rateFilter systemPrefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter),
 floor filter, exhaust active carbon filterControl systemSpraying, risen-temperature spraying, baking temperature, time setting,
 lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
 limited-temperature device, most of electrical spare part is import, C.E standardTotal power14KW


We are the professional manufacturer of spray booth, and we can customize for you according to your need and your place. Sincerely hope we can have your inquiry and warmly welcome to our factory.
I'm just here waiting for you!
