• Model NO.：CRI-4000
• Testing Injectors：Bosch, Denso, Delphi, Siemens
• Pressure：0-2000bar
• Test Data：Rich Data, Access to 1700PCS
• Color：Green
• Display Monitor：Computer Display
• Advantage：Remote Control
• System：Software Computer Control
• Edit：Edit Injection Curve, Testing Step Freely.
• Transport Package：Plywood Box
• Specification：ISO CE
• Trademark：12PSDW FOTMA
• Origin：China
• HS Code：9031809090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. CRI-4000 Testing Injectors Bosch, Denso, Delphi, Siemens Pressure 0-2000bar Test Data Rich Data, Access to 1700PCS Color Green Display Monitor Computer Display Advantage Remote Control System Software Computer Control Edit Edit Injection Curve, Testing Step Freely. Transport Package Plywood Box Specification ISO CE Trademark 12PSDW FOTMA Origin China HS Code 9031809090 Production Capacity 5000PCS/Year

Product Description

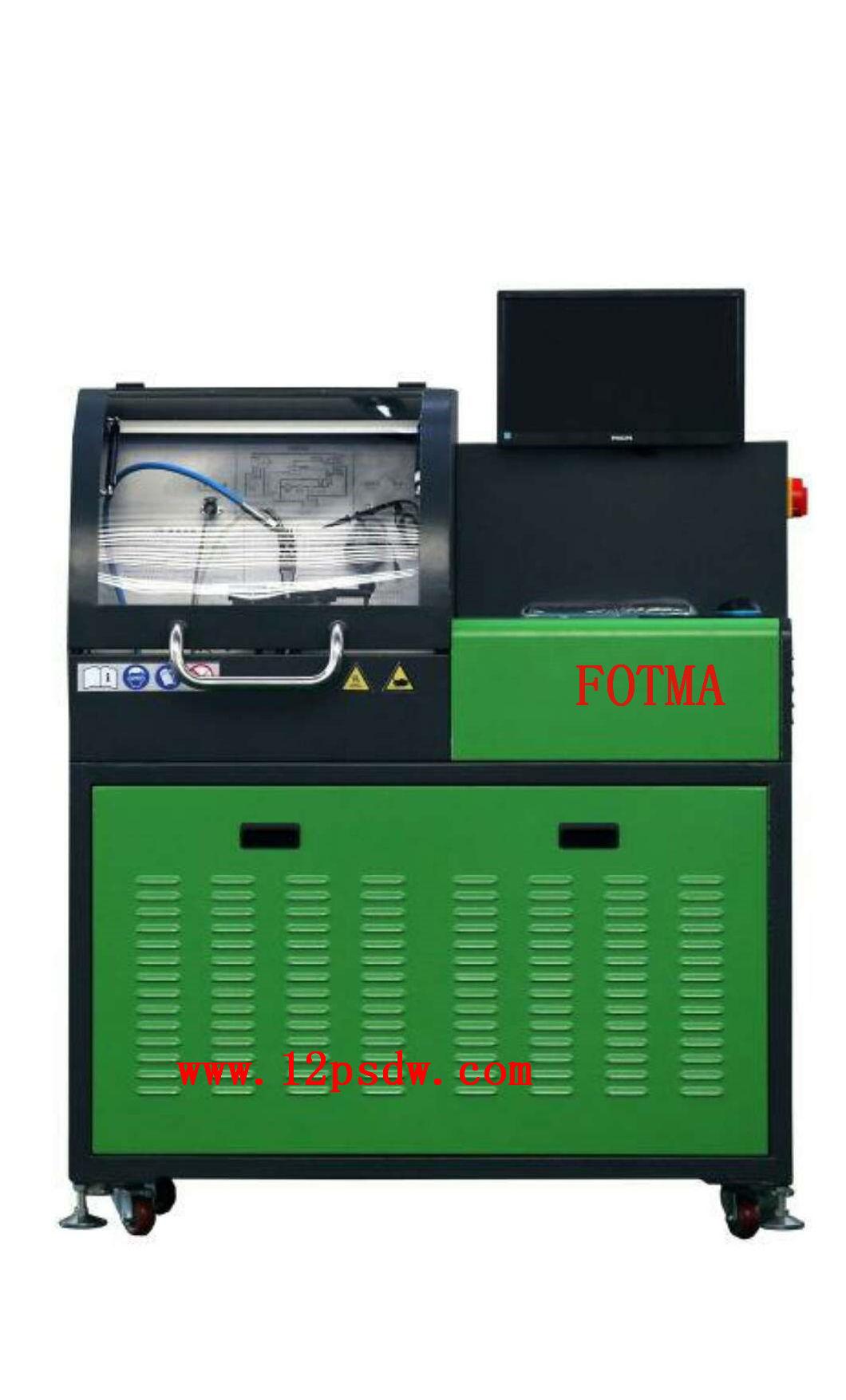

CRI-4000 Common Rail Injector Test Bench
-------for testing Bosch, Denso, Delphi, Caterpillar etc. Common rail injectors

Advantage:

1. Computer Software Control. Can connect with internet! Can do system upgrade on-line.
2. Remote Control. Our engineer can do repair, maintenance, setting, easy on-line.
3. Rich test data. Aslo can save and set testing result in to database.
4. Can edit injection curve, testing step freely.

Main Specifications:

1. Output power: 4kw
2. Motor Speed Range: 0-2000rpm.
3. Temperature Control Range: 40±2ºC
4. Driving Currency of the Injector(Max):28A
5. Injection Time:100---3000μs
6. Pressure Regulating Range:0---2000Bar
7. Pressure Control Accuracy:±0.5Mpa
8. Flow Testing Range: 0---600ml/1000times
9. Flow Testing Accuracy: 0.1ml
10. Cooling Method: Water Cooling or Fan Cooling

Main Functions:

1. Applied to test common rail injectors of Bosh, Denso, Delphi, Caterpillar etc.
2. Could test the leakage, and the flow volumes under different working status, such as the fuel flow volume under backflow, pre-injection, idling,full-loaded and the emission.
3. Check the common rail injector and judge the status is OK or BAD.
4. Could edit the injection curve.
5. The operators could edit the testing steps as request.
6. The testing results could be saved and printed.
7. The testing data of new injectors could be set and saved in the software.
8. With the same high precision flow meters as Bosch EPS815.
9. With hundreds of standard testing data inside the testing software.
10. With various accessories for different common rail injectors.
