• Model NO.：CRI-3000
• Testing Injectors：Bosch, Denso, Delphi, Siemens
• Pressure：0-2000bar
• Test Data：Rich Data, Access to 1700PCS
• Color：Green
• Display Monitor：Computer Display
• Advantage：Remote Control
• System：Software Computer Control
• Edit：Edit Injection Curve, Testing Step Freely.
• Transport Package：Plywood Box
• Specification：ISO CE
• Trademark：12PSDW FOTMA
• Origin：China
• HS Code：9031809090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. CRI-3000 Testing Injectors Bosch, Denso, Delphi, Siemens Pressure 0-2000bar Test Data Rich Data, Access to 1700PCS Color Green Display Monitor Computer Display Advantage Remote Control System Software Computer Control Edit Edit Injection Curve, Testing Step Freely. Transport Package Plywood Box Specification ISO CE Trademark 12PSDW FOTMA Origin China HS Code 9031809090 Production Capacity 5000PCS/Year

Product Description

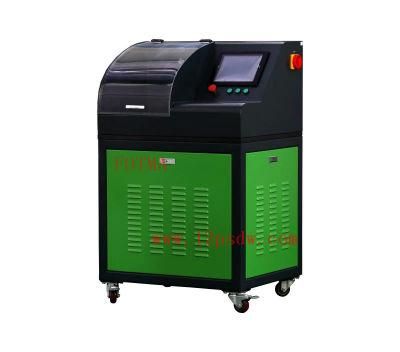

CRI-3000 Common Rail Injector Test Bench
-------for testing Bosch, Denso, Delphi Common rail injectors

Advantage:

1. Computer Software Control. Can connect with internet! Can do system upgrade on-line.
2. Can upgrade to Remote Control. Our engineer can do repair, maintenance, setting, easy on-line.
3. Rich test data. Aslo can save and set testing result in to database.
4. Can edit injection curve, testing step freely.

Main Specifications:

1. Output power: 4kw
2. Pressure control range: 10-1800bar
3. Pressure control accuracy: ±3bar
4. Injection frequency setting range: 100-1500times/min
5. Metering range of the flow meter: 0.1ml~2000ml/1000times
6. Fuel tank capacity: 12L
7. Filter Accuracy: 3μm
8. Temperature Control Range: 30-50ºC

Main Functions:

1. Test common rail injectors of Bosh, Denso, Delphi etc.
2. Check the sealing of CR injectors
3. Check the backflow and the injection volume under full-loaded status.
4. Test the injection volume at the emission point.
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved
9. Standard parameters settable
10. Determine the injectors are good or bad automatically.
