• Model NO.：GL4000-A1
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• External Size(M)：7.0X5.6X3.5
• Internal Size(M)：6.9X3.9X2.7
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Inside on-Load Air Speed(M/S)：0.3-0.5
• Power (Kw)：25
• Filters：High Efficiency Filter
• Heating System：Riello Brand Diesel Burner
• Lighting System：LED
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：Guangli
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：40, 000 PCS,Year

Basic Info.

Model NO. GL4000-A1 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New External Size(M) 7.0X5.6X3.5 Internal Size(M) 6.9X3.9X2.7 Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Inside on-Load Air Speed(M/S) 0.3-0.5 Power (Kw) 25 Filters High Efficiency Filter Heating System Riello Brand Diesel Burner Lighting System LED Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark Guangli Origin Guangzhou, China HS Code 84198990 Production Capacity 40, 000 PCS/Year

Product Description

Best selling GuangLi new model GL4000-A1 high grade spray booth baking painting room with insulation doors

GuangLi Spray booth Feature

--Wall panel: sandwich style, δ=50mm,rock wool available as required.

--Basement: steel structure, full grids,ramp: 2 pcs of grids.
--Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
--Lengthened room as optional: outside size: 7.6*5.6*3.5(m) inside size:7.5*3.9*2.7(m)
--One 11kw intake fan and one 11kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.

--1 manual VCD exhaust damper, electrical VCD as optional. one pressure meter.

--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello G20 burner.

--Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.

--Upper light: 10 sets, 4*40w per set. side lights: 8sets, 4*40w.
--Control box: imported components, overload, overheat, phase-lacking,

phase-locking protection, engine y/ start.

--Automatically stop when preset time is up.

--Constant temperature spraying.
--Environmental filter :the equipment can be adopted m style activated carbon or drawer style activated carbon.

Technical specifications	GL4000-A1
External size(m)	7.0x5.6x3.5
Internal size(m)	6.9×3.9×2.7
Door width(m)	3.0
Door height(m)	2.66
Air flow (m3/h)	30000
Inside on-load air speed(m/s)	0.3-0.5
Drying Temperature	20-80
Oil consumption (L/unit)	6-8
Power (kw)	25
Vehicle suited	Saloon car
Color	Orange,Blue, White,Red
Water-based device	As option

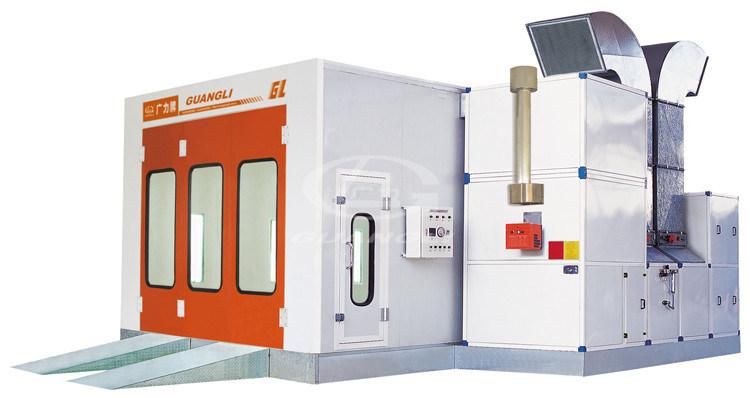

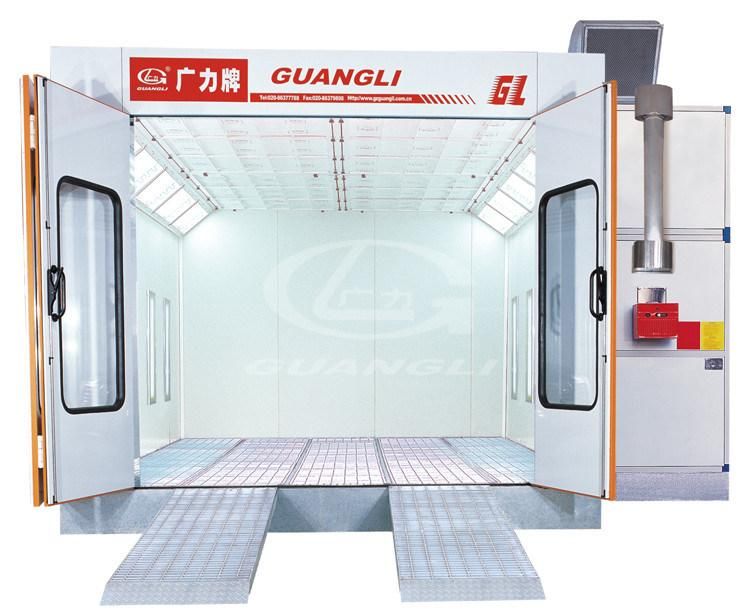

GuangLi Spray booth Show

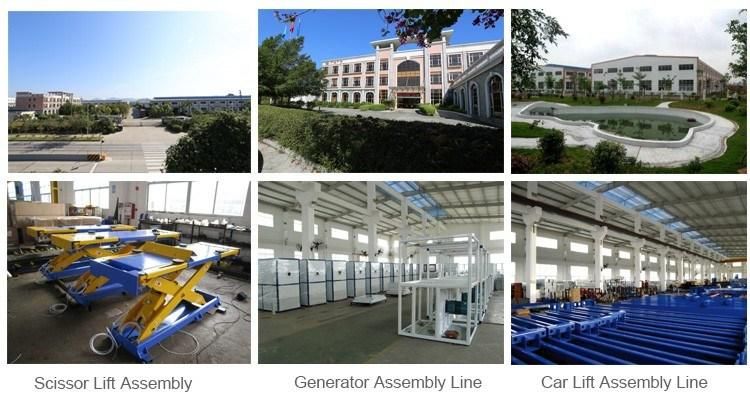

Company Profile

GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China,

having a good reputation among Chinese auto-maintenance enterprise.

Founded in 1994,GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift

manufacturer for 22-year technical and production experience.

Our products have been used in many car manufacturers' and thought highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.

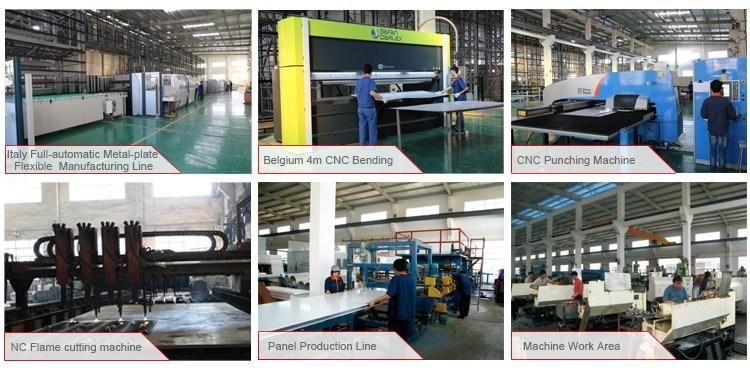

Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.

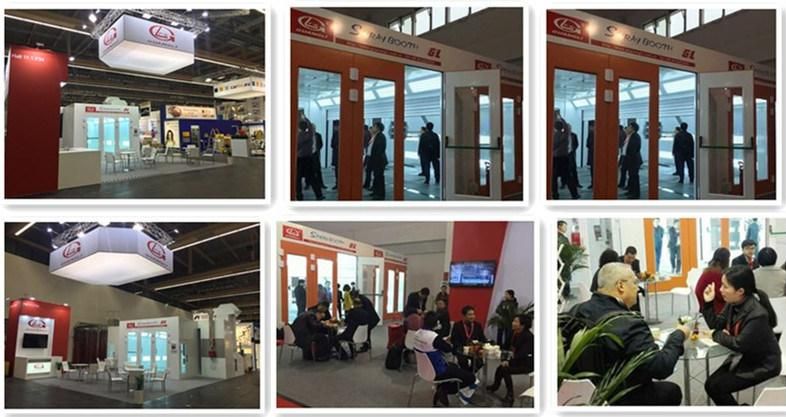

Exhibition


Why Choose Us

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.

6.Good pre-sales and after-sales service.

FAQ

1.Q:Are you Manufacturer or Trading company?

A:We are a professional manufacturer with our own export department.

2.Q:Where is your company located? How can I visit there?

A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.

3.Q:How about the quality of the products?

A:With the advanced machines, strong and professional R&D team and material

sources,our products are excellent in performance and craftsmanship.

4.Q:Can we customize our product?

A:Yes,you can.Customized material and standard are acceptable. We can provide

 different standards according to your market and favor.

5.Q:What's the MOQ for each items?

A:We accept one piece/set each time.

6.Q:What's the delivery time?

A:If the product you ordered is our standard configurations, it's 7 workdays.
