Guangli Factory Auto Line Produce Economic Type Used Spray Booth Baking Overn Paint Booth with Lighting

GZ GUANGLI EFE CO., LTD.
  • Type：Spray Booth
  • Certification：CCC, CE, CSA, GS
  • Substrate：Steel
  • Brand：Guangli
  • Coating：Powder Coating
  • Airflow Direction：Fully Undershot-type

Base Info

  • Model NO.：GL3000-A1
  • Heating Mode：Diesel
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Door Width(M)：3.0
  • Door Height(M)：2.66
  • Air Flow (M3/H)：24000
  • Lighting System：Upper Lights + Side Lights
  • Filters：High Efficiency Filter
  • Color：Red Blue Orange White
  • Usage：Car Painting Baking
  • Vehical Suited：Saloon Car
  • Warranty：Yes
  • Heating System：Riello Brand Diesel Burner
  • Transport Package：Iron Frame Packing and Carton Packing
  • Specification：20GP
  • Trademark：GUANGLI
  • Origin：Guangzhou, China
  • HS Code：84198990
  • Production Capacity：10, 000 PCS,Year

Description

Basic Info.

Model NO. GL3000-A1 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 24000 Lighting System Upper Lights + Side Lights Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

GuangLi factory auto line produce economic type used spray booth baking overn paint booth with lighting
Guangli Spray Booth Description
--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement :steel strucutre,full grids .ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One unit of 7.5kw intake fan and one unit of 7.5kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper,electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner(Gas burner is available).
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set. Side light:8sets,2*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying
--Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.
ModelGL3000-A1
External size (m)(LxWxH)7.0x5.3x3.5
Internal size (m)(LxWxH)6.9x3.9x2.7
Entrance Width(m)3.0
Entrance Height(m)2.66
Fan capacity( m 3 /h )24000
Air velocity (m/s)0.25-0.35
Drying Temperature20-80
Oil consumption (L/unit)6-8
Power (kw)13.5
Suitable Automobile TypeSaloon Car

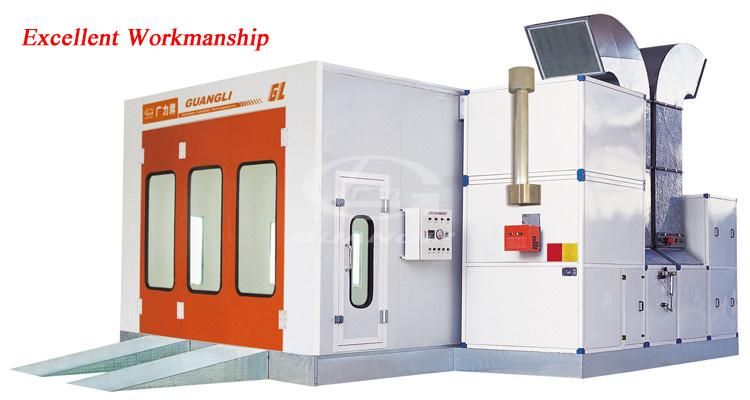

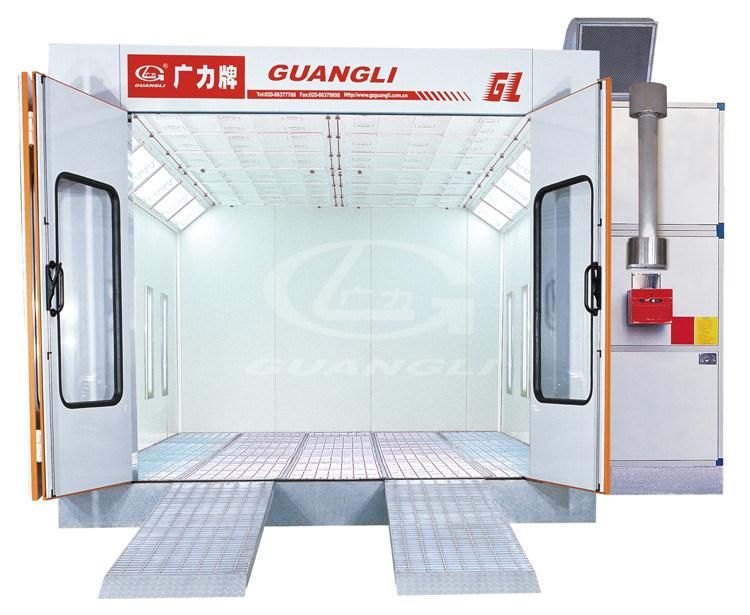

Guangli Spray Booth Show
Guangli Factory Auto Line Produce Economic Type Used Spray Booth Baking Overn Paint Booth with LightingGuangli Factory Auto Line Produce Economic Type Used Spray Booth Baking Overn Paint Booth with Lighting

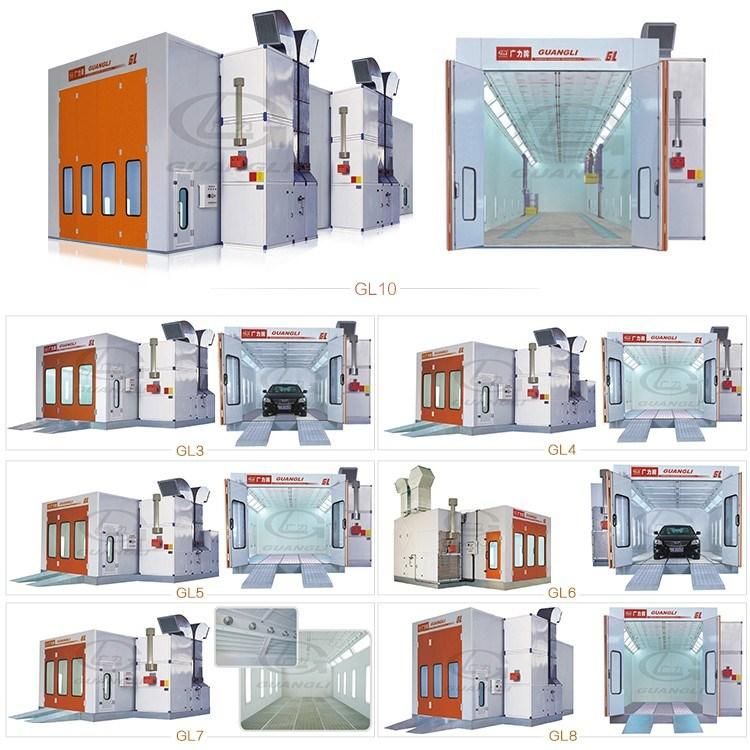

Guangli Spray Booth Series
Guangli Factory Auto Line Produce Economic Type Used Spray Booth Baking Overn Paint Booth with Lighting
Factory Show
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise.
GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer for 22-year technical
and production experience,founded in 1994.
Guangli Factory Auto Line Produce Economic Type Used Spray Booth Baking Overn Paint Booth with Lighting
Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.
Guangli Factory Auto Line Produce Economic Type Used Spray Booth Baking Overn Paint Booth with Lighting
Exhibitions
Guangli Factory Auto Line Produce Economic Type Used Spray Booth Baking Overn Paint Booth with Lighting
FAQ:
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.

Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.
