• Model NO.：GL9-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：3.35
• Air Flow (M3/H)：36000
• Control Panel：Straight Driven Motor
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：MID-Size Bus
• Warranty：Yes
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：panel sandwich style, δ =50mm, polystyrene
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL9-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 3.35 Air Flow (M3/H) 36000 Control Panel Straight Driven Motor Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited MID-Size Bus Warranty Yes Transport Package Iron Frame Packing and Carton Packing Specification panel sandwich style, δ =50mm, polystyrene Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

Professional Manufacturer Guangli Brand High Quality Auto Painting Equipment Spray Booth for MID-Size Bus (GL9-CE)
Description
Guangli Spray Booth Feature

Model	GL9-CE
External size (m)	8.7x5.63x4.23
Internal size (m)	8.6x4.0x3.4
Entrance Width(m)	3.0
Entrance Height(m)	3.35
Fan capacity( m 3 /h )	36000
Air velocity (m/s)	0.25-0.35
Max Drying Temperature	60-80
Oil consumption (L/unit)	6-8
Power (kw)	22.5
Suitable Automobile Type	Mid-Size Bus

--Wall panel :sandwich style,δ=50mm,polystyrene .(rock wool as optional)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--Frame:steel ,powder coated.
--One 11kw intake fan .One 7.5kw exhaust fan.11kw exhaust fan as optional. Intake duct as optional.
--5m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO Brand Burner.
--Roof filter:8pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pc of M style air mouth filter .
--Upper light:12sets,4*40w per set.Side light:10sets,4*40w per set.
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.--Constant temperature spraying.
-- 22.5kw power.

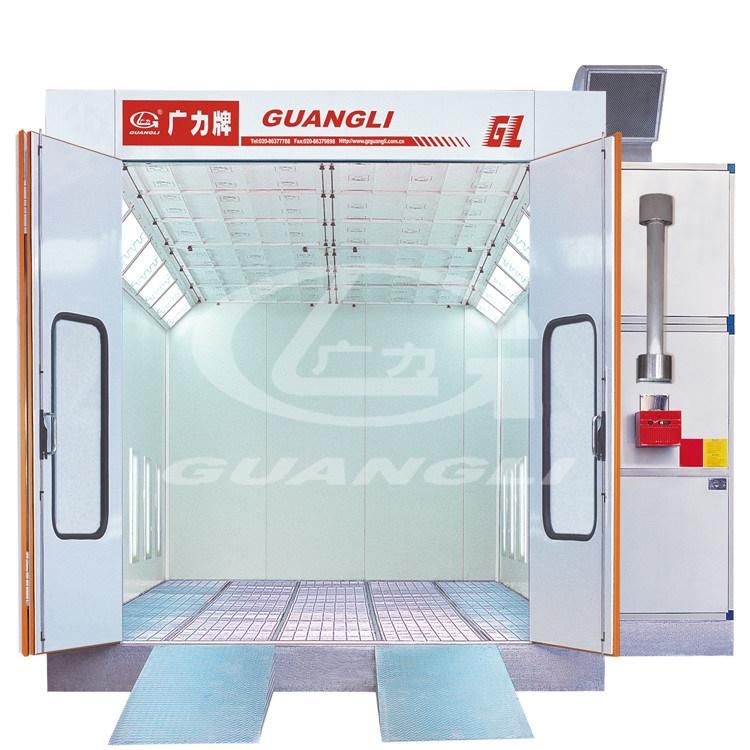

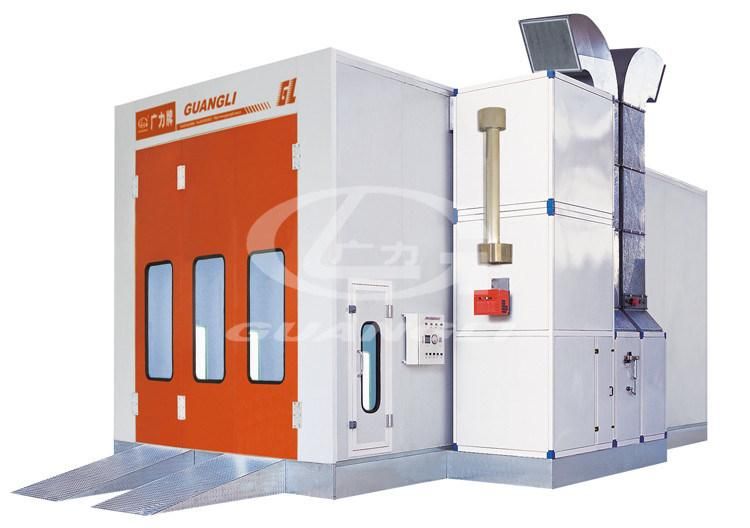

Guangli Spray Booth Show

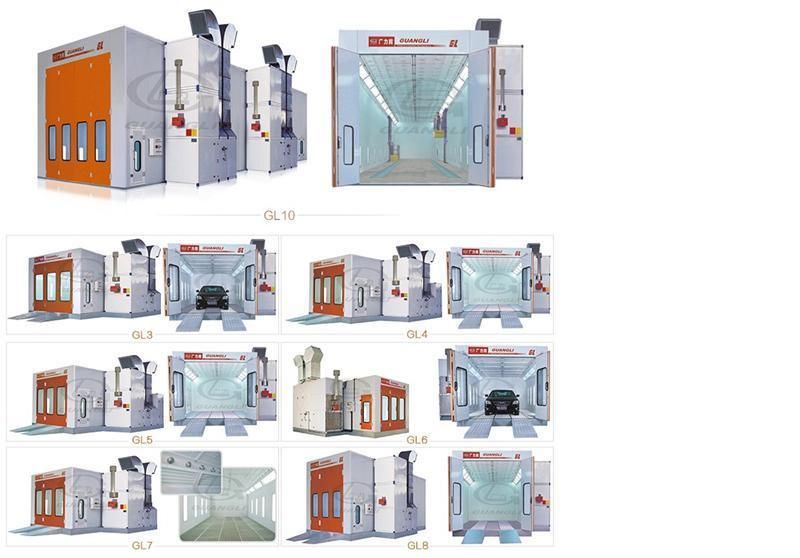

Other product series

Company Profile
GZ GUANGLI EFE CO.,LTD is a  professional spray booth and car lift manufacturer in China wtih  more than 22 years technical and production experience.

Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M²of grounding area and 36,000M²of building area.

GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

Equipment
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.


Exhibition



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.
