China Made Car Auto Lift (ORL-40FE)
Yancheng Sunrise Import & Export Co., Ltd.- Lifting Capacity：4000kgs
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Condition：New
- Brand：Orient
Base Info
- Model NO.：ORL-40FE
- Max Lifting Height：1900mm
- Min Height：110mm
- Transport Package：Standard Export Packaging
- Specification：CE & ISO
- Trademark：Orient
- Origin：China
- HS Code：84254290
- Production Capacity：500units, Month
Description
Basic Info.
Model NO. ORL-40FE Max Lifting Height 1900mm Min Height 110mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ MonthProduct Description

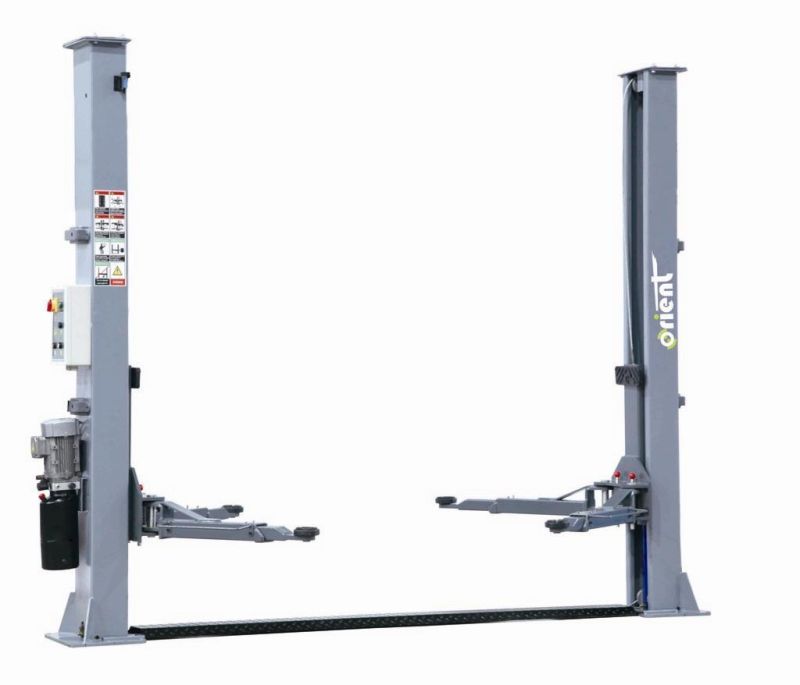

2015 two post car auto lift ORL-40FE
FEATURES:
*Electrical release at the control position
*Solid reliable lifting arm and sliding table
*Aluminum shell motor prevents overheated
*Operating control system with 24V safety voltage
*24V height limit switch provided
*Toe and feet protection device provided
*Car door crashing preventing rubber pad provided
*Adjustable picking up plate provided
*Hydraulic pressure pre-setting preventing from lifting vehicle with exceeding rated loads
*Routine testing with 115% dynamic and 150% static loading
*CE approved

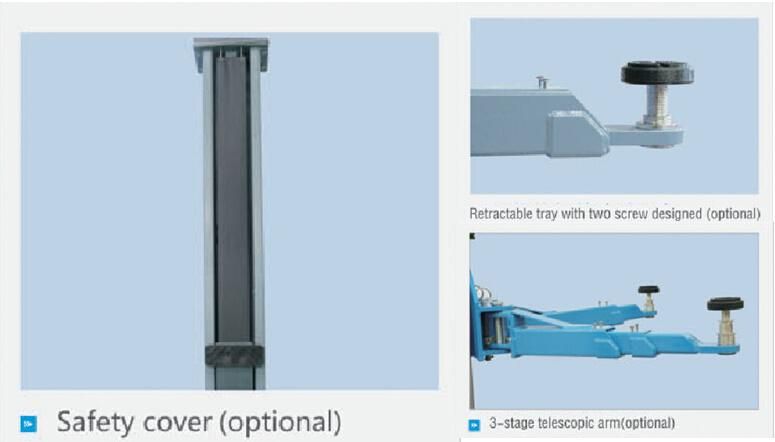

Optional parts:

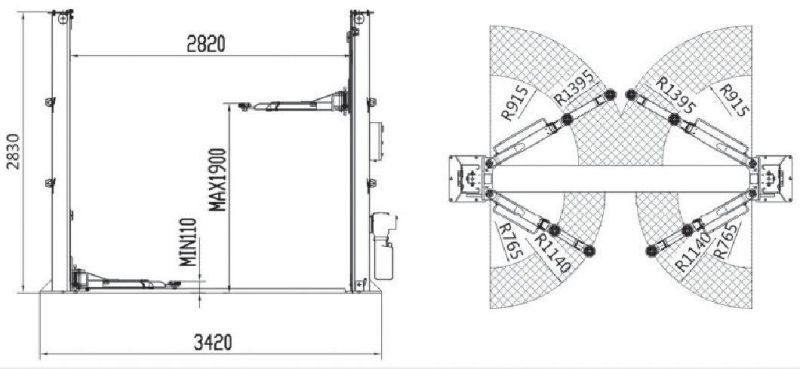

Overall Dimensions:
| Lifting Capacity | 4000kg |
| Max.Lifting Height | 1900mm |
| Minimum Height | 110mm |
| Lifting Time | 50s |
| Overall Height | 2830mm |
| Overall Width | 3420mm |
| Width Between Columns | 2820mm |
| Motor Power | 2.2kw |
| Power Supply | 220V/240V/380V/415V |
| Weight | 635kg/670kg |
| Packing Size | 2900*530*770mm |
