• Model NO.：YM-PBS-C-6340
• Lifting Capacity：4T
• Driving Type：Hydraulic
• Certification：CE
• Driving Motor Number of Mechanical Lift：1
• Double Cylinder Lift Type：Thin Plate Type
• Condition：New
• Brand：Yuanmech
• Design：Four Post
• Product Name：Wholesale Garage 4 Post Car Lift Car Parking Lift
• Load Capacity：4000kg
• Maximum Lifting Height：1500mm
• Oil Requirement：24MPa
• Lifting Cylinders：2
• Min. Height：150mm
• Usage：Car Lift
• Platform Width：550mm
• Air Pressure：0.6-0.8MPa
• Lifting Time：50-60s
• Motor Power：2.2kw-380V or 2.2kw-220V
• Oil Pressure Rating：24MPa
• Weight：1250kg
• Keywords：4 Post Car Lift
• Color：Optional Color
• Transport Package：Plywood Crate
• Specification：4360*610*860mm
• Trademark：YuanMech
• Origin：Yingkou, Liaoning, China
• HS Code：8425429000
• Production Capacity：3000PCS,Month
• Package size per unit product：436.00cm * 61.00cm * 86.00cm
• Gross weight per unit product：1250.000kg

Basic Info.

Model NO. YM-PBS-C-6340 Lifting Capacity 4T Driving Type Hydraulic Certification CE Driving Motor Number of Mechanical Lift 1 Double Cylinder Lift Type Thin Plate Type Condition New Brand Yuanmech Design Four Post Product Name Wholesale Garage 4 Post Car Lift Car Parking Lift Load Capacity 4000kg Maximum Lifting Height 1500mm Oil Requirement 24MPa Lifting Cylinders 2 Min. Height 150mm Usage Car Lift Platform Width 550mm Air Pressure 0.6-0.8MPa Lifting Time 50-60s Motor Power 2.2kw-380V or 2.2kw-220V Oil Pressure Rating 24MPa Weight 1250kg Keywords 4 Post Car Lift Color Optional Color Transport Package Plywood Crate Specification 4360*610*860mm Trademark YuanMech Origin Yingkou, Liaoning, China HS Code 8425429000 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 436.00cm * 61.00cm * 86.00cm Gross weight per unit product 1250.000kg

Product Description

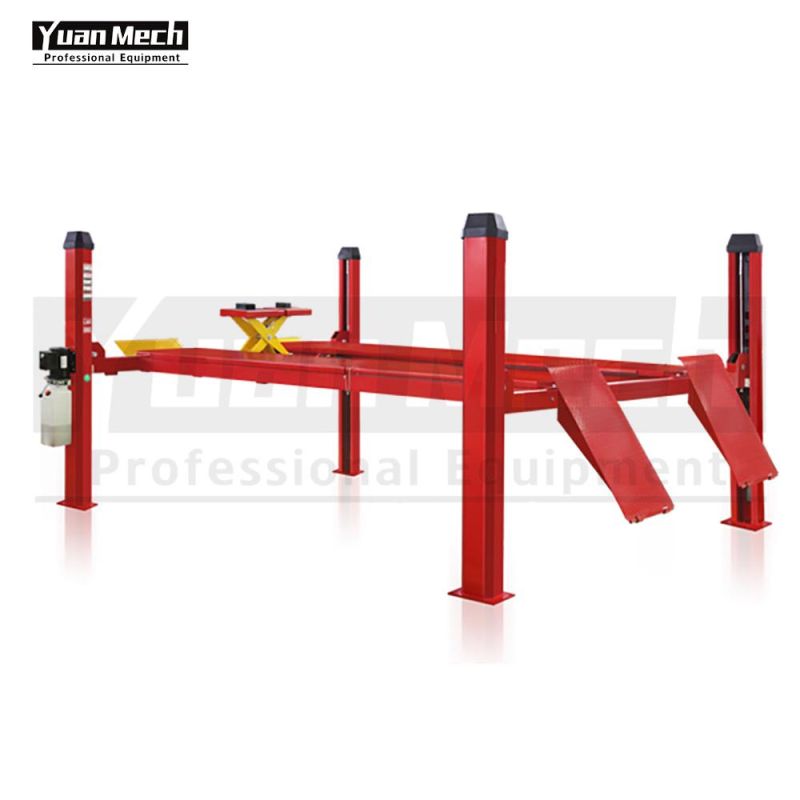

China Supply Wholesale Garage 4 Post Car Lift Car Parking Lift

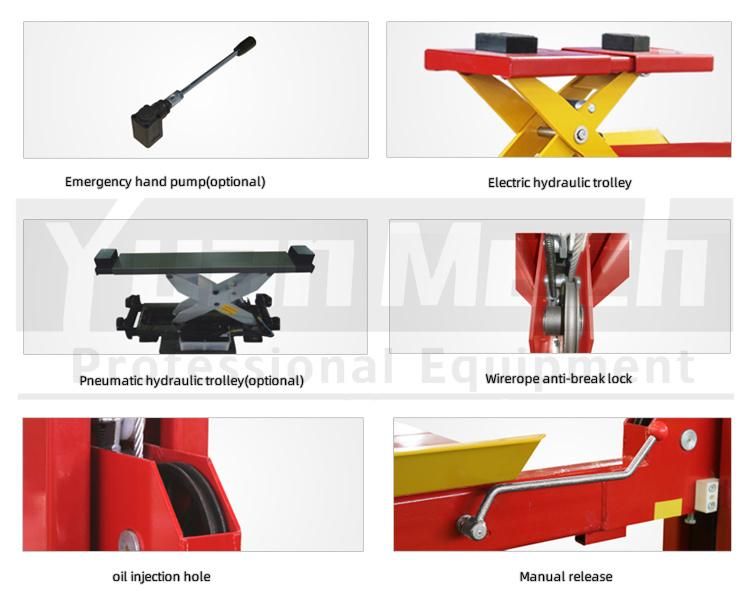

1.Adopt the electric release,  manual and pneumatic release.
2.Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
3.Hydraulic cylinder drive, rope drive, quiet and smooth lifting.
4.With wire control security lock, with a wire rope fracture protection, operation safety.
5.Adopt electrical release, eight -point locking system, easy to operate.
6.Can be locked in the desired height of operation, safety and reliability.
7.Runway spacing is adjustable for different wheel base vehicle.
8.With the second lift pulley, can adopt the manual release,  pneumatic release and hydraulic.




Load Capacity	4000kg
Maximum Lifting Height	1550mm
Lifting Cylinders	4
Oil Requirement	24MPa
Platform Width	550mm
Power	2.2kw/220v/380v
Weight	1250kg

Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 14months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : CE

You can press " CONTACT NOW " or " CHAT WITH SUPPLIER " to get more details.
Also by other contact ways .
