• Model NO.：YM-LZW-B-2140
• Lifting Capacity：4T
• Driving Type：Hydraulic
• Certification：CE
• Driving Motor Number of Mechanical Lift：1
• Double Cylinder Lift Type：Thin Plate Type
• Condition：New
• Brand：Yuanmech
• Design：Two Post
• Product Name：Auto Repair Equipment Two Post Lift Car Lifter
• Load Capacity：4000kg
• Maximum Lifting Height：1850mm
• Oil Requirement：24MPa
• Lifting Cylinders：2
• Min. Height：120mm
• Pass Width：2500mm
• Column Width：2790mm
• Total Width：3320mm
• Lifting Time：50-60s
• Motor Power：2.2kw-380V or 2.2kw-220V
• Oil Pressure Rating：24MPa
• Weight：590kg
• Keywords：Two Post Car Lift
• Color：Optional Color
• Transport Package：Plywood Crate
• Specification：2870*450*690 mm+92*27*33mm
• Trademark：YuanMech
• Origin：Yingkou, Liaoning, China
• HS Code：8425429000
• Production Capacity：3000PCS,Month
• Package size per unit product：290.00cm * 50.00cm * 70.00cm
• Gross weight per unit product：650.000kg

Basic Info.

Model NO. YM-LZW-B-2140 Lifting Capacity 4T Driving Type Hydraulic Certification CE Driving Motor Number of Mechanical Lift 1 Double Cylinder Lift Type Thin Plate Type Condition New Brand Yuanmech Design Two Post Product Name Auto Repair Equipment Two Post Lift Car Lifter Load Capacity 4000kg Maximum Lifting Height 1850mm Oil Requirement 24MPa Lifting Cylinders 2 Min. Height 120mm Pass Width 2500mm Column Width 2790mm Total Width 3320mm Lifting Time 50-60s Motor Power 2.2kw-380V or 2.2kw-220V Oil Pressure Rating 24MPa Weight 590kg Keywords Two Post Car Lift Color Optional Color Transport Package Plywood Crate Specification 2870*450*690 mm+92*27*33mm Trademark YuanMech Origin Yingkou, Liaoning, China HS Code 8425429000 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 290.00cm * 50.00cm * 70.00cm Gross weight per unit product 650.000kg

Product Description

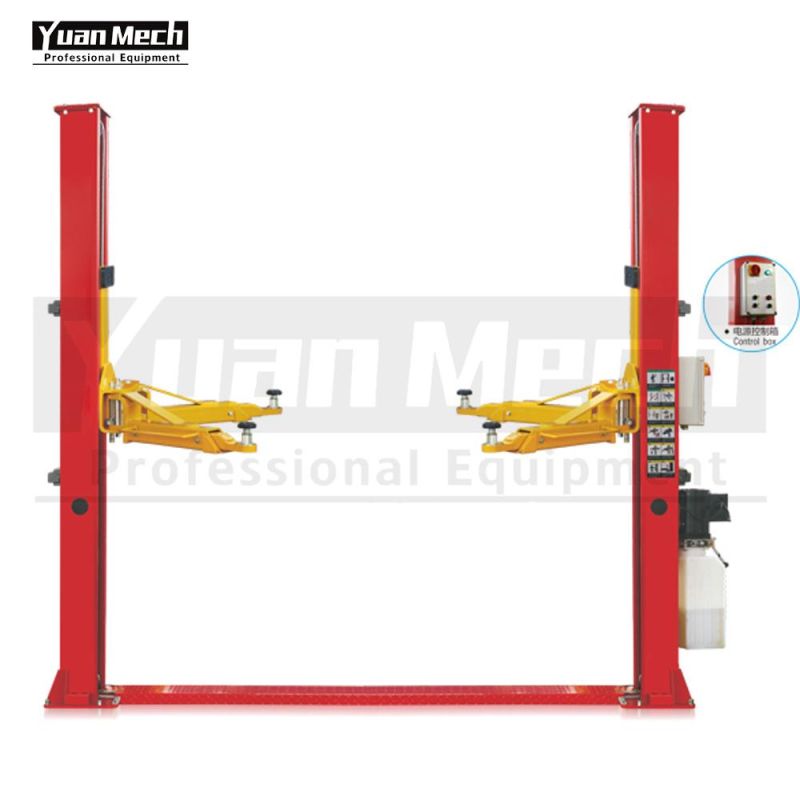

China Supply Auto Garage Repair Equipment Two Post Lift Car Lifter

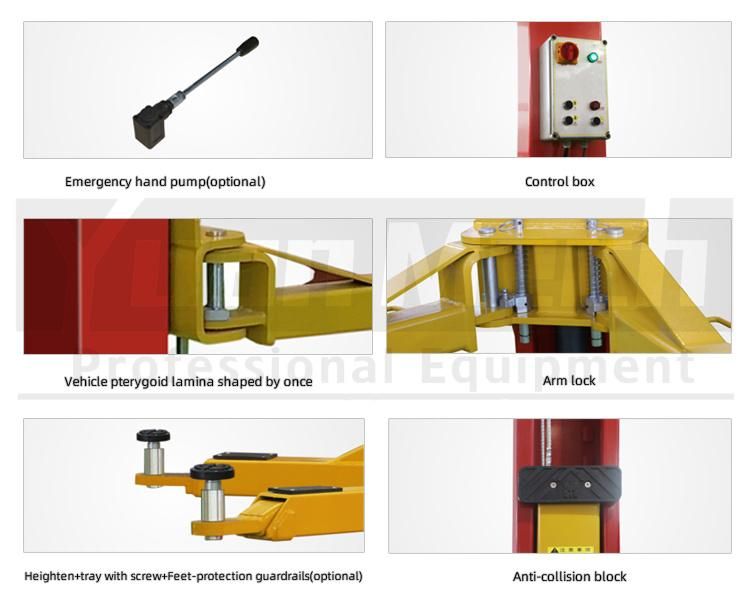

1.Floor design, suitable for the bottom not high in the auto repair.
2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.Electric release.
4.Rubber pad door-opening protection.
5.Secure fence protect the toes.
6.Rubber support pad adopts double helix adjustment height and height increase joint.
7.Limit switch.
8.The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.

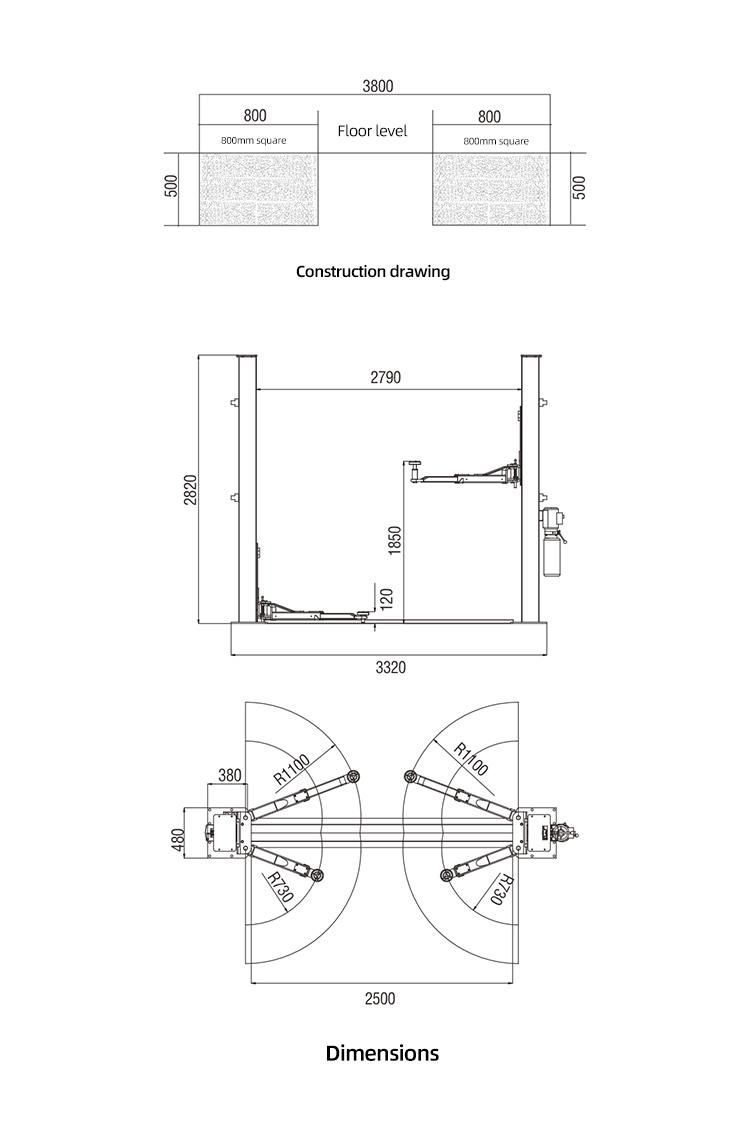

Load Capacity	4000kg
Maximum Lifting Height	1850mm
Lifting Cylinders	2
Oil Requirement	24MPa
Pass Width	2500mm
Column Width	2790mm
Total Width	3320mm

Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 14months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE
