CE Scissor Wheelchair Lift Manufacturer for Bus
Changzhou Xinder-Tech Electronics Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：One Cylinder Hydraulic Lift
- Lifting Capacity：350kg
- Certification：CE
- Shearing Lift Type：Scissor Lift
Base Info
- Model NO.：WL-UVL-700-S
- Condition：New
- Brand：Xinder
- Design：Scissor
- Platform Size：1220*750m,1220*800mm
- Loading Capacity：350kg
- Max Lifting Height：700mm
- Overall Length：1867-2015mm
- Overall Width：1135mm
- Overall Height：133mm
- Door Width Required：1100mm
- Option：Handrail
- Safety：Anti-Skip Platform
- Transport Package：Wooden Box
- Specification：CE certificate, 180kg
- Trademark：xinder
- Origin：Jiangsu. China
- HS Code：84289090
- Production Capacity：100 PCS,Month
Description
Basic Info.
Model NO. WL-UVL-700-S Condition New Brand Xinder Design Scissor Platform Size 1220*750m/1220*800mm Loading Capacity 350kg Max Lifting Height 700mm Overall Length 1867-2015mm Overall Width 1135mm Overall Height 133mm Door Width Required 1100mm Option Handrail Safety Anti-Skip Platform Transport Package Wooden Box Specification CE certificate, 180kg Trademark xinder Origin Jiangsu. China HS Code 84289090 Production Capacity 100 PCS/MonthProduct Description

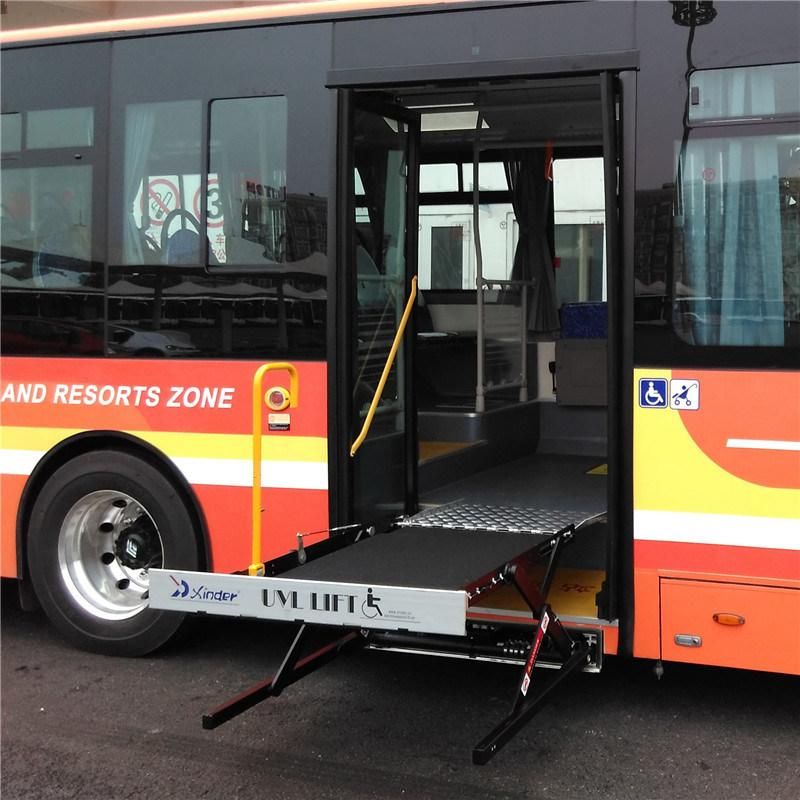

1. INFORMATIONWL-UVL Series Scissor wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.

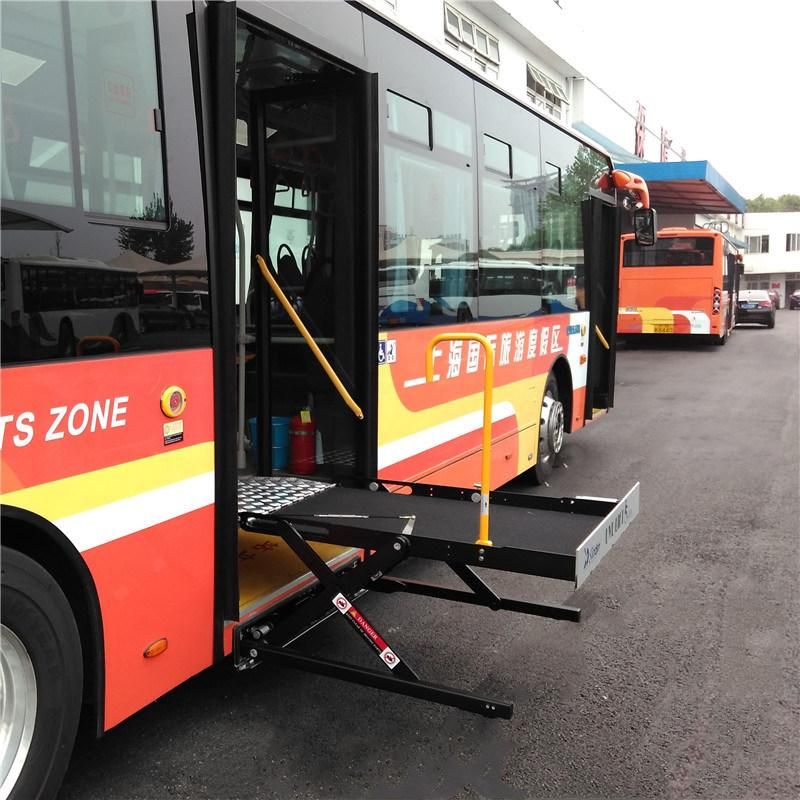

This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.
2. ADVANTAGES
Ø Electric outboard rollstop and automatic inboard rollstop
Ø Super thin compact design
Ø No-skid aluminum honeycomb platform
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system
