• Model NO.：SP42-A02
• Item Product：Launch X431 Diagun IV
• Special Features：Bluetooth
• Update：Free Update Online
• Dealer Code：86A
• Delivery Time：2 Working Days After Payment
• Voltage：12V
• Power：9W
• Software Update：Free for 2 Years
• Supporting Heavy Duty Module：Yes
• Version：Latest Version
• Transport Package：Carton Box
• Specification：3.5kg
• Trademark：Launch
• Origin：China
• Production Capacity：1000

Function menu:

NameDescriptionDiagnoseConfigures X-431 Diagun IV to operate as a diagnostic tool.Special FunctionTo perform some maintenance items, including electronic throttle position reset, ABS bleeding, oil lamp reset etc.Feedback DiagnosisThis option allows you to feed back the diagnostic reports/software bugs to us for troubleshooting and analysis.Software UpgradeTo update vehicle diagnostic software. If you keep signed in, a pop-up message will appear on the screen once a newer version is detected.Maintenance HelpTo browse the FAQ, Quick Start Guide, User Manual and How-To videos.Personal CenterTo manage, activate your VCI connector, diagnostic report or personal information etc.

Vehicle connection:


The method used to connect the VCI connector to a vehicle's DLC depends on the vehicle's configuration as follows:

A vehicle equipped with an OBD II management system supplies both communication and 12V power through a standardized DLC.
A vehicle not equipped with an OBD II management system supplies communication through a DLC connection, and in some cases supplies 12V power through the cigarette lighter receptacle or a connection to the vehicle battery.

For non-OBDII vehicle,proceed as follows:

1. Locate vehicle's DLC socket.

2. Plug the VCI connector into the vehicle's DLC socket (It is suggested to use the OBD II extension cable to connect the VCI connector and DLC socket).

3. Choose one of the two ways to obtain power from:

A. Power adaptor: Connect one end of the included power adaptor to DC IN port of X-431 Diagun IV handset, and the other end to AC outlet.

B. Internal battery pack


For non-OBDII vehicle, proceed as follows:

1. Locate vehicle's DLC socket.

2. Select the corresponding non-16pin connector.

3. Plug the non-16pin end of the connector into the DLC socket, then connect the other end to the OBD I adaptor, and then tighten the captive screws.

4. Connect the other end of the adaptor to the included VCI connector.

5. To supply power to OBD I adaptor from:

A. Cigarette Lighter cable(optional): Connect one end of the cigarette lighter cable to vehicle's cigarette lighter receptacle, and the other end to the power jack of OBD I adaptor.

B. Battery Clamps Cable(optional): Connect one end of the battery clamps


Reset function:


The Reset section is specially designed to provide you quick access to the vehicle systems for various scheduled service and maintenance performances. All resetting operations are driven by executive commands. Just by following the on-screen prompts to select appropriate execution options, input correct values or data, and perform necessary actions, the system will guide you through the complete performance.

The most commonly performed service functions contain:

Oil Reset Service
Steering Angle Calibration
Electronic Parking Brake Reset
Battery Register / Battery Maintenance
ABS Bleeding
Electronic Throttle Position Reset / Learn
Diesel Particulate Filter (DPF) Regeneration
Tire Pressure Monitor System Reset

Technical Parameters:

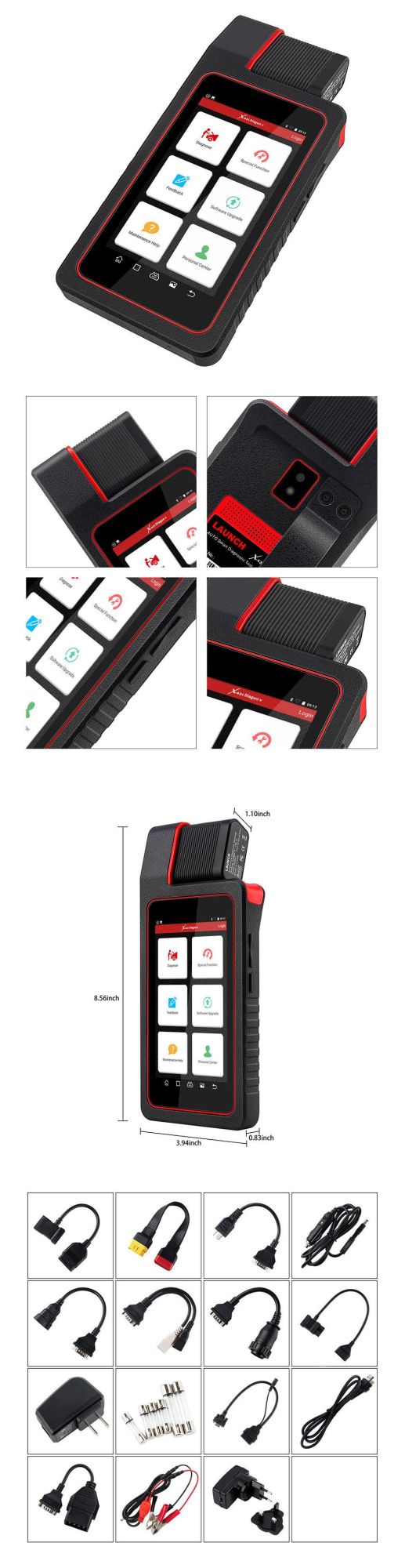

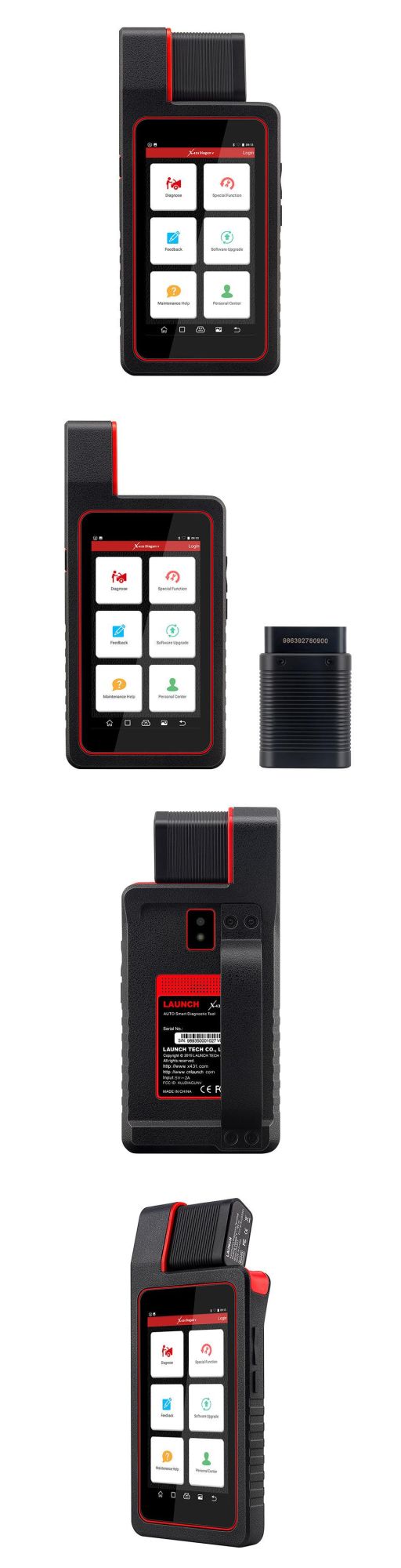

X-431 Diagun IV:

Operating system : Android 7.0
Processor : Quad core 1.1 GHz
Memory : 1GB
Storage : 16GB (Expandable up to 64GB)
LCD screen : 5.5 inch IPS screen with a resolution of 1280 x 720 pixels
Camera : Front-facing 2MP camera + rear-facing 8MP camera
Battery : 2500mh rechargeable polymer lithium battery

Connectivity:


* Wi-Fi : WLAN 802.11b/g/n
* Bluetooth : Bluetooth 4.1
Working temperature : 0ºC ~ 45ºC
Storage temperature : -10ºC ~ 50ºC

VCI connector:


Working voltage : 9~18V
Working temperature : -10ºC~55ºC
Storage temperature : -20ºC~70ºC
Relative humidity : 20%~90%

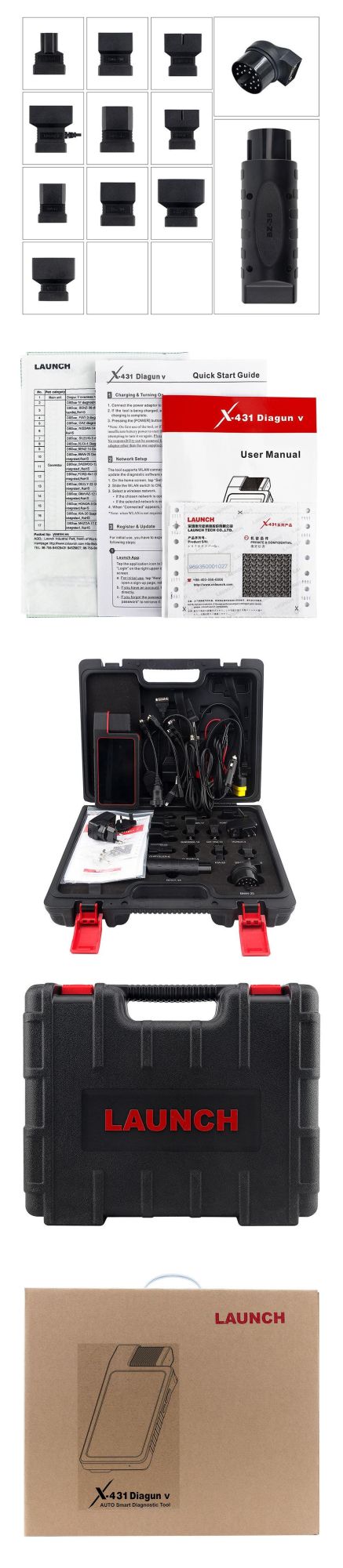

Package List:


X-431 Diagun IV handset
VCI connector(Bluetooth connector)
Password envelope
Power adaptor
