• Model NO.：GL8-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：3.35
• Air Flow (M3/H)：30000
• Technology：European Technology
• Lighting System：Upper Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Midsize Bus
• Warranty：Yes
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL8-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 3.35 Air Flow (M3/H) 30000 Technology European Technology Lighting System Upper Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Midsize Bus Warranty Yes Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

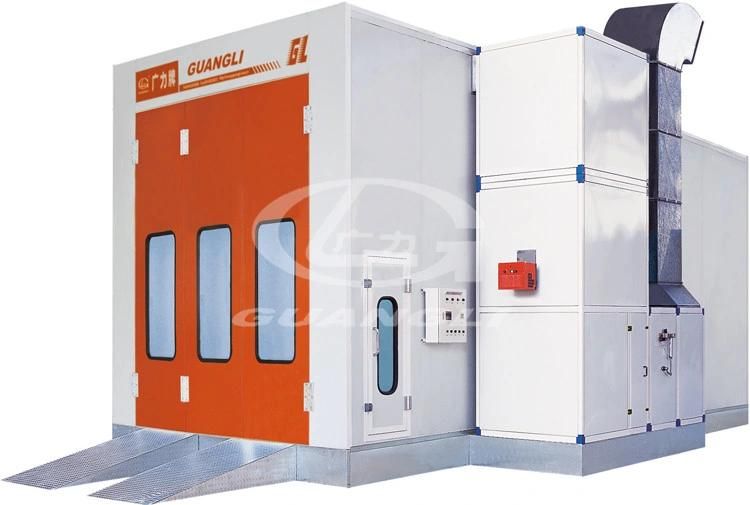

Factory Supply Best Quality Auto Service Equipment Midsize Bus Painting Room (GL8-CE)

GL8-CE Spray Booth Description
--Wall panel :sandwich style,δ=50mm,polystyrene.(Rock wool as optional)
--Basement:steel structure,3 rows of vein board and 2 rows of grids(full grids as optional).
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Frame;steel,powder coated.
--One 11kw intake fan.
--5m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO /G20S Burner.
--Roof filter:5pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 1pcs of M style air mouth filter.
--Upper light:12sets,4*40w per set.
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.
-- 13kw power.

Model	GL8-CE
External size (m)(LxWxH)	8.7x5.63x4.23
Internal size (m)(LxWxH)	8.6x4.0x3.4
Entrance width(m)	3.0
Entrance height(m)	3.35
Fan capacity( m 3 /h )	35000
Air velocity (m/s)	0.25-0.3
Exhaust type	Full-undershot,Bilateral,Semi-down,Unilateral etc
Drying temperature(ºC)	20-80
Oil consumption (L/unit)	6-8
Water-based paint device	As option
Power (kw)	13
Suitable Automobile Type	Midsize Bus

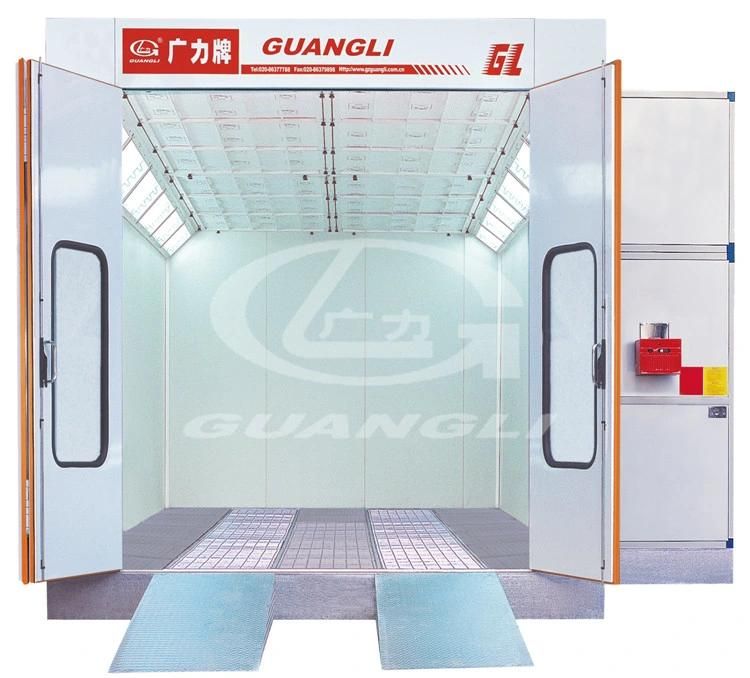

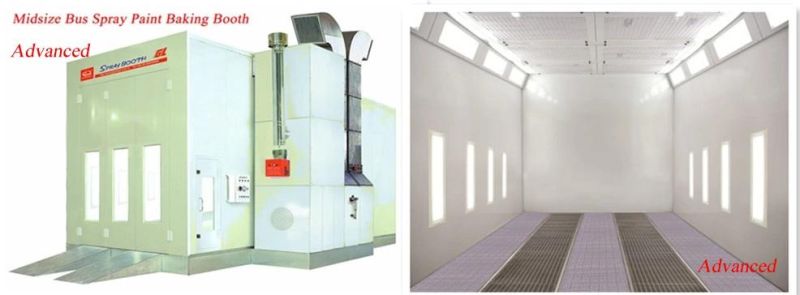

GL8-CE Spray Booth Show








Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.

Equipment
With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.


Exhibitions

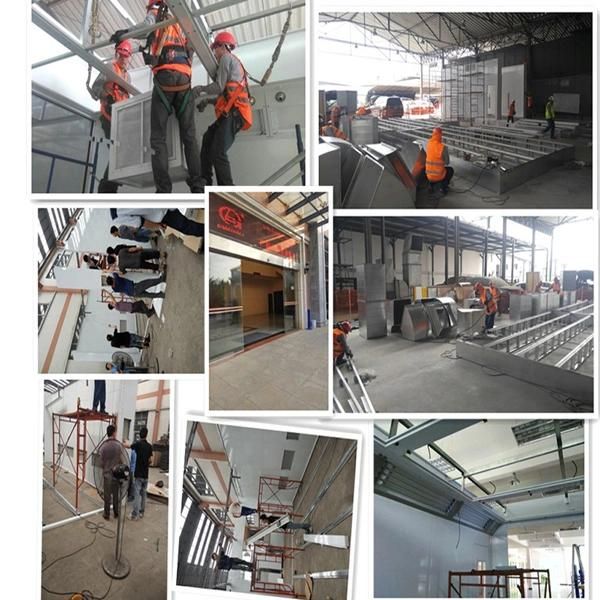

Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.

Warmly welcome to contact:
Tel:+86-20-86378972
Website:gzguangli.en.made-in-china.com
