• Model NO.：GL7-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL7-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner/Gas Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

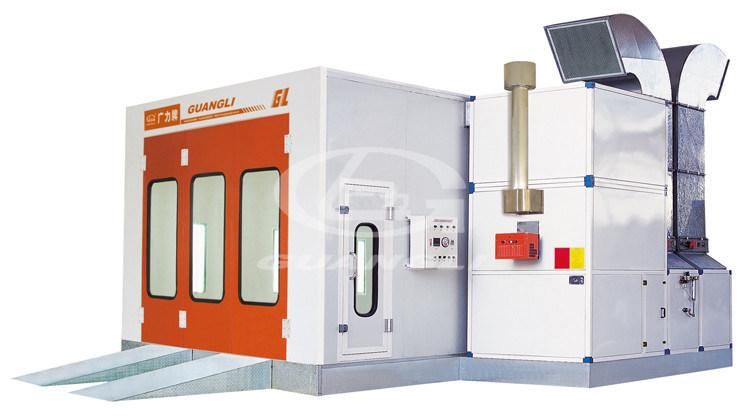

China Manufacturer High Quality Hot Sell Water-based Paint Painting Booth (GL7-CE)

GuangLi Spray booth Feature(GL7-CE)

--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One 11kw intake fan and one 11kw exhaust fan.
--Water soluble paint with hot-air acceleration system: 1set.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Electrical VCD as optional.One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.RIELLO /RG5S Burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pcs of air mouth filter .
--Upper light:10sets,4*40w per set.side lights:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.

Model	GL7-CE
External size (m)(LxWxH)	7.0x5.6x3.6
Internal size (m)(LxWxH)	6.9x3.9x2.7
Entrance width(m)	3.0
Entrance height(m)	2.66
Fan capacity( m 3 /h )	30000
Air velocity (m/s)	0.3-0.5
Drying temperature(ºC)	20-80
Oil consumption (L/unit)	6-8
Exhaust type	Full-undershot,Bilateral,Semi-down,Unilateral etc
Water-based paint device	Yes
Color	Orange Blue Red White or Client's Requirements
Power (kw)	26
Suitable Automobile Type	Saloon Car

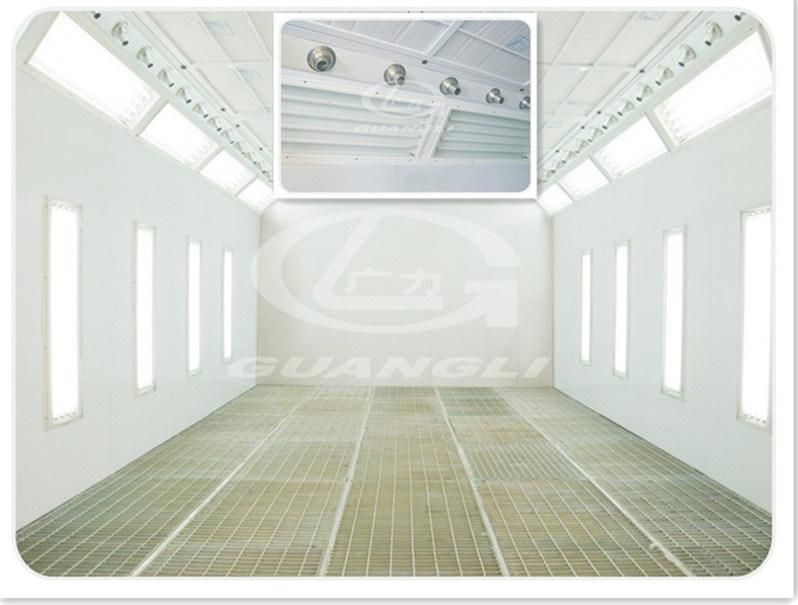

Spray Booth Details' Show






Company Profile
GZ GUANGLI EFE CO.,LTD is a  professional spray booth and car lift manufacturer in China wtih  more than 22 years technical and production experience.

Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M²of grounding area and 36,000M²of building area.
All our Spray Booth, Painting Booths and Car Lift have passed the Europe CE certification, CCS  certificate and our company has passed ISO9001.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

Exhibitions



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: 1.T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages after loading the container.
2.L/C.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
