• Model NO.：ORML30A
• Design：Scissor
• Max Lifting Height：1000mm
• Min Height：110mm
• Transport Package：Standard Export Packaging
• Specification：CE & ISO
• Trademark：Orient
• Origin：China
• HS Code：84254290
• Production Capacity：500units, Month

Basic Info.

Model NO. ORML30A Design Scissor Max Lifting Height 1000mm Min Height 110mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

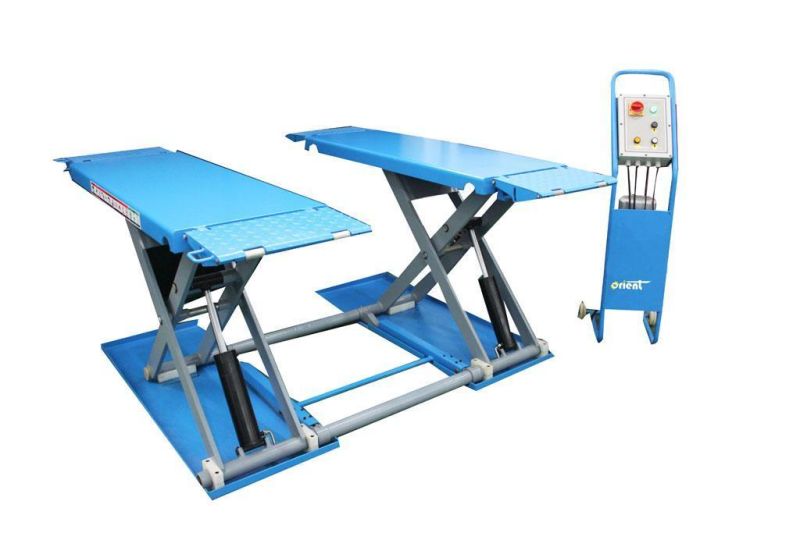

NEW Scissor car lift



FEATURES:
*Idea choice for quick tyre replacement and simple service alongside of vehicle.
*Surface mounted or movable used,with optional movable kits.
*Special and practical platform extension design broadens your service scope.
*Pneumatic release system decreases noise emitted during service work.
*Configuring mechanical safety lock to ensure that lift at different heights to get the absolute security.
*Optional 24V control voltage.
*Anti-skid platform effectively prevents sudden drop-down of vehicle.
*Dynamic testing with 115% rated capacity and static testing with 150% of rated capacity.

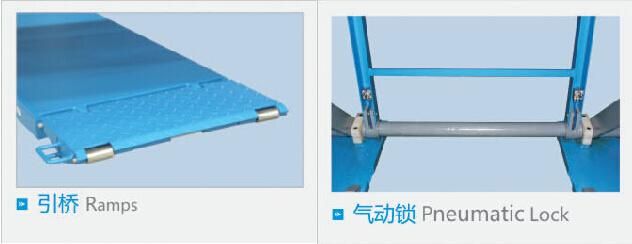

Optional accessories:

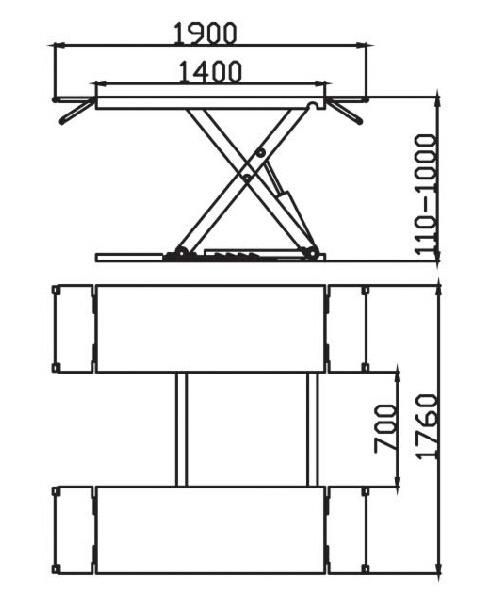

Overall Dimensions:




Lifting Capacity	3000kg
Lifting Height	1000mm
Minimum Height	110mm
Lifting Time	30s
Overall Length for Platform	1400mm
Overall Width for Platform	1760mm
Width Between Platform	700mm
Motor Power	2.2kw
Power Supply	220V/380V/415V
Air Supply	6-8bar
Weight	500kg
Packing Size	1800*1540*220+520*450*1150mm
